3-Element Strain Gage Rosettes: 0°/45°/90°

SGD-2/350-RY51

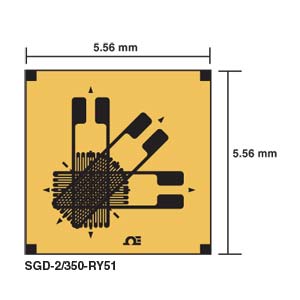

Rectangular Stacked Grid 3-element Strain Gage Rosette

SGD-2/350-RY51:3-Element Strain Gage Rosettes: 0°/45°/90°

Click for larger image.

^¥ 2,430.00 SGD-2/350-RY51

•	Conveniently Priced per Pack of 5
•	Very Flexible, Mechanically Strong
•	Small Bending Radius
•	Broad Temperature Range
•	Affix with Cold or Hot Curing Adhesives
View related products - Strain Gages, Accessories and Instrumentation

OMEGA™ strain gages are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurement. The measuring grid is formed by etching constantan foil, which is then completely sealed in a carrier medium composed of polyimide film.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Encapuslated with Ribbon Leads, Matched to Steel (PRICE PER PKG OF 5)

SGD-2/120-RY51	2 Weeks	¥2,575.00	Triaxial Rosette, 2 mm grid, 120 ohms	qty.

SGD-2/350-RY51	6 Weeks	¥2,430.00	Triaxial Rosette, 2 mm grid, 350 ohms	qty.

SGD-3/120-RY51	6 Weeks	¥2,455.00	Triaxial Rosette, 3 mm grid, 120 ohms	qty.

SGD-3/350-RY51	2 Weeks	¥2,565.00	Triaxial Rosette, 3 mm grid, 350 ohms	qty.

SGD-7/120-RY51	6 Weeks	¥2,550.00	Triaxial Rosette, 7 mm grid, 120 ohms	qty.

SGD-7/350-RY51	2 Weeks	¥2,565.00	Triaxial Rosette, 7 mm grid, 350 ohms	qty.


Encapuslated with Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)

SGD-2/120-RY53	6 Weeks	¥2,220.00	Triaxial Rosette, 2 mm grid, 120 ohms	qty.

SGD-2/350-RY53	6 Weeks	¥2,565.00	Triaxial Rosette, 2 mm grid, 350 ohms	qty.

SGD-3/120-RY53	6 Weeks	¥2,455.00	Triaxial Rosette, 3 mm grid, 120 ohms	qty.

SGD-3/350-RY53	6 Weeks	¥2,565.00	Triaxial Rosette, 3 mm grid, 350 ohms	qty.

SGD-7/120-RY53	6 Weeks	¥2,455.00	Triaxial Rosette, 7 mm grid, 120 ohms	qty.

SGD-7/350-RY53	6 Weeks	¥2,550.00	Triaxial Rosette, 7 mm grid, 350 ohms	qty.


Encapuslated with Solder Pads, Matched to Steel (PRICE PER PKG OF 5)

SGD-2/120-RY61	6 Weeks	¥2,445.00	Triaxial Rosette, 2 mm grid, 120 ohms	qty.

SGD-2/350-RY61	6 Weeks	¥2,420.00	Triaxial Rosette, 2 mm grid, 350 ohms	qty.

SGD-3/120-RY61	6 Weeks	¥2,215.00	Triaxial Rosette, 3 mm grid, 120 ohms	qty.

SGD-3/350-RY61	6 Weeks	¥2,335.00	Triaxial Rosette, 3 mm grid, 350 ohms	qty.

SGD-7/120-RY61	6 Weeks	¥2,385.00	Triaxial Rosette, 7 mm grid, 120 ohms	qty.

SGD-7/350-RY61	6 Weeks	¥2,405.00	Triaxial Rosette, 7 mm grid, 350 ohms	qty.


Encapuslated with Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)

SGD-2/120-RY63	6 Weeks	¥2,215.00	Triaxial Rosette, 2 mm grid, 120 ohms	qty.

SGD-2/350-RY63	6 Weeks	¥2,405.00	Triaxial Rosette, 2 mm grid, 350 ohms	qty.

SGD-3/120-RY63	6 Weeks	¥2,215.00	Triaxial Rosette, 3 mm grid, 120 ohms	qty.

SGD-3/350-RY63	6 Weeks	¥2,335.00	Triaxial Rosette, 3 mm grid, 350 ohms	qty.

SGD-7/120-RY63	6 Weeks	¥2,385.00	Triaxial Rosette, 7 mm grid, 120 ohms	qty.

SGD-7/350-RY63	6 Weeks	¥2,405.00	Triaxial Rosette, 7 mm grid, 350 ohms	qty.

† Price are shown in RMB.

Note: Sold in Packages of 5
Ordering Example: (1) SGD-2/120-RY51 Pkg of 5 Triaxial Rosette Strain Gages, 2 mm grid, 120 ohms, ribbon leads, matched to steel, ¥2,575.00
