Home >> Pressure Strain and... >> Strain Gages, Access... >> General Purpose Stra... >> SGD-3/350-RY21

RECTANGULAR 3-ELEMENT ROSETTE
Planar Compact Geometry
SGD-3/350-RY21

45º STRAIN GAGES, 3-ELEMENT

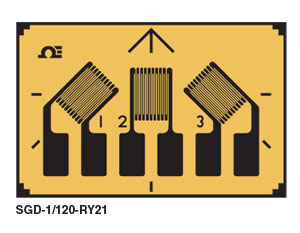

SGD-3/350-RY21:RECTANGULAR 3-ELEMENT ROSETTE Planar Compact Geometry
Click for larger image.

¥ 1,790.00  SGD-1/120-RY21
• Conveniently Priced per Pack of 5
• Very Flexible, Mechanically Strong
• Small Bending Radius
• Broad Temperature Range
• Clear alignment Marks
• Affix with Cold or Hot Curing Adhesives

View related products - Strain Gages, Accessories and Instrumentation

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

OMEGA™ strain gages are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurement. The measuring grid is formed by etching constantan foil, which is then completely sealed in a carrier medium composed of polyimide film.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Encapsulated, Ribbon Leads, Matched to Steel (PRICE PER PKG OF 5)
 SGD-1/120-RY21 6 Weeks   ¥1,790.00    1.6 mm Grid, 120 ohms 3-Element, 45° Rosette
 SGD-1/350-RY21 2 Weeks   ¥2,165.00    1.6 mm Grid, 350 ohms 3-Element, 45° Rosette
 SGD-2/350-RY11 6 Weeks   ¥1,790.00    2 mm Grid, 350 ohms 3-Element, 45° Rosette
 SGD-3/120-RY21 6 Weeks   ¥1,790.00    3 mm Grid, 120 ohms 3-Element, 45° Rosette
 SGD-3/350-RY21 6 Weeks   ¥1,790.00    3 mm Grid, 350 ohms 3-Element, 45° Rosette
 SGD-6/120-RY21 6 Weeks   ¥1,910.00    6 mm Grid, 120 ohms 3-Element, 45° Rosette
 SGD-6/350-RY21 6 Weeks   ¥1,910.00    6 mm Grid, 350 ohms 3-Element, 45° Rosette
 Encapsulated, Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGD-1/120-RY23 6 Weeks   ¥1,800.00    1.6 mm Grid, 120 ohms 3-Element, 45° Rosette
 SGD-1/350-RY23 6 Weeks   ¥2,155.00    1.6 mm Grid, 350 ohms 3-Element, 45° Rosette
 SGD-2/350-RY13 6 Weeks   ¥1,790.00    2 mm Grid, 350 ohms 3-Element, 45° Rosette
 SGD-3/120-RY23 6 Weeks   ¥1,790.00    3 mm Grid, 120 ohms 3-Element, 45° Rosette
 SGD-3/350-RY23 6 Weeks   ¥1,790.00    3 mm Grid, 350 ohms 3-Element, 45° Rosette
 SGD-6/120-RY23 6 Weeks   ¥1,910.00    6 mm Grid, 120 ohms 3-Element, 45° Rosette
 SGD-6/350-RY23 6 Weeks   ¥1,920.00    6 mm Grid, 350 ohms 3-Element, 45° Rosette
 Encapsulated, Solder Pads, Matched to Steel (PRICE PER PKG OF 5)
 SGD-1/120-RY81 6 Weeks   ¥1,610.00    1.6 mm Grid, 120 ohms 3-Element, 45° Rosette
 SGD-1/350-RY81 6 Weeks   ¥2,060.00    1.6 mm Grid, 350 ohms 3-Element, 45° Rosette
 SGD-2/350-RY31 6 Weeks   ¥1,610.00    2 mm Grid, 350 ohms 3-Element, 45° Rosette
 SGD-3/120-RY81 6 Weeks   ¥1,610.00    3 mm Grid, 120 ohms 3-Element, 45° Rosette
 SGD-3/350-RY81 6 Weeks   ¥2,060.00    3 mm Grid, 350 ohms 3-Element, 45° Rosette
 SGD-6/120-RY81 6 Weeks   ¥2,155.00    6 mm Grid, 120 ohms 3-Element, 45° Rosette
 SGD-6/350-RY81 6 Weeks   ¥1,790.00    6 mm Grid, 350 ohms 3-Element, 45° Rosette
 Encapsulated, Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)
 SGD-1/120-RY83 6 Weeks   ¥1,610.00    1.6 mm Grid, 120 ohms 3-Element, 45° Rosette
 SGD-1/350-RY83 6 Weeks   ¥1,610.00    1.6 mm Grid, 350 ohms 3-Element, 45° Rosette
 SGD-2/350-RY33 6 Weeks   ¥2,060.00    2 mm Grid, 350 ohms 3-Element, 45° Rosette
 SGD-3/120-RY83 6 Weeks   ¥1,610.00    3 mm Grid, 120 ohms 3-Element, 45° Rosette
 SGD-3/350-RY83 6 Weeks   ¥2,060.00    3 mm Grid, 350 ohms 3-Element, 45° Rosette
 SGD-6/120-RY83 6 Weeks   ¥1,790.00    6 mm Grid, 120 ohms 3-Element, 45° Rosette
 SGD-6/350-RY83 6 Weeks   ¥1,790.00    6 mm Grid, 350 ohms 3-Element, 45° Rosette
† Price are shown in RMB.

 Note: Sold in Packages of 5
  Ordering Example: (1) SGD-1/120-RY21 Pkg of 5 45° Strain Rosettes, Ribbon Leads, Matched to Steel, ¥1,790.00
