The KFG SERIES pre-wired strain gages are superseded by the KFH SERIES. Please see the KFH Series for complete details, or contact our Pressure department for more information..

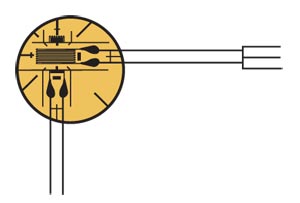

OMEGA's T-Rosettes have 2 measuring grids laid out in an X-Y Pattern.
They are available in a variety of different models to
cover most strain measurement
applications. The rugged
construction and flexibility make these
general purpose strain gages suitable for static and dynamic
measurement with a high degree of
accuracy. The measuring grid is
formed by etching Constantan foil,
which is then completely sealed in a
carrier medium composed of
polyimide film. These strain gages are pre-wired with either
two 3-ft (1 m) leads or three 9-ft (3 m) leads. Standard strain gages have
temperature coefficients matched to steel.
† Price are shown in RMB.
Note: Omega XY strain gages are supplied with a calibration certificate showing the gage factor for each package of gages. Sold in packages of 10.
