The OME-PIO-D24U provides 24 TTL
digital I/O lines. The OME-PIO-D24U
consists of three 8-bit bi-directional
ports. The 8-bit ports are named
port A (PA), port B (PB) and port
C (PC). All ports are configured as
inputs upon power-up or reset.

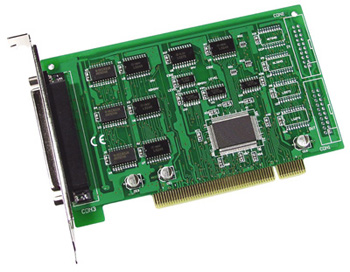

The OME-PIO-D56U provides 24-bit
bi-directional digital I/O, 16-bit
digital inputs and 16-bit digital
outputs. The 24-bit bi-directional
digital I/O uses one 37-pin D-sub
connector (CON3). The 16-bit digital
I/O uses two 20-pin headers (digital
inputs on CON2 and digital outputs
on CON1). The 20-pin digital I/O
headers can be extended to the PC
slot window by using the OME-ADP-
20/PCI adaptor. The OME-PIO-D24U
has one D-sub connector only. It
can be installed in a 3.3 V or 5 V PCI bus
and supports true "Plug & Play."
Software Development Kit
All boards are supplied with a
standard software development kit
for Windows XP/Vista/7. The
software development kit includes
dll files for programming in C, C++
or other high- level languages and
OCX files for Visual Basic or Active
X programming. LabView drivers
are also included.
Specifications
PCI BUS TYPE: 3.3 V/5 V universal
ALL INPUTS AND OUTPUTS
ARE TTL COMPATIBLE Logic High Voltage: 2.4 V (min) Logic Low Voltage: 0.8 V (max)
24-Bit Output Port (CON3)
Sink Current: 64 mA (max) Source Current: 32 mA (max)
16-Channel Output (CON1)
Sink Current: 64 mA (max) Source Current: 0.4 mA (max) Power: +5 V @900 mA Operating Temperature:
0 to 60°C (32 to 140°F) Storage Temperature:
-20 to 80°C (-4 to 176°F) Humidity: 0 to 90%
RH non-condensing Dimensions:
105 H x 143 mm W
(4.1 x 5.6") Power Consumption:
+5 V @530 mA/420 mA
† Price are shown in RMB.
Note: OMEGACARE extended warranty program is available for models shown on this page. Ask your sales representative for full details when placing an order. OMEGACARE covers parts, labor and equivalent loaners. All boards include utility software and a complete user’s manual on CD-ROM. Ordering Example: (1) OME-PIO-D56U PCI bus 56-bit DIO board, ¥2,350.00
