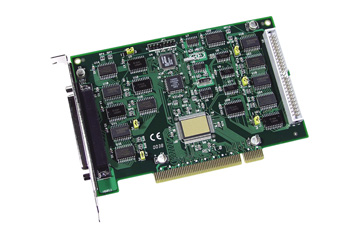

The OME-PIO-D48U and OME-PEX-D48 provides 48
TTL digital I/O lines and consists
of six 8-bit bi-directional ports. The
OME-PIO-D48U has one 24-bit
digital I/O port that is accessed via
the 37-pin D-Sub connector and a
second 24-bit digital I/O port that is
accessed via the 50-pin flat cable
connector. The 8-bit ports on each
connector are named port A (PA),
port B (PB) and port C (PC).
All ports are configured as inputs
upon power-up or reset. The 50-pin
header can be connected to a 50-pin flat cable.
The flat cable can be
connected to OME-ADP-37/PCI or
OME-ADP-50/PCI adapter which
can be fixed on the computer
chassis. The OME-PIO-D48U can be installed in a
3.3 V or 5 V PCI bus and supports true
"Plug & Play". The OME-PEX-D48 can be installed
in a PCI Express x 1 bus.
Software Development Kit
All boards are supplied with a
standard software development kit
for Windows XP/Vista/7.
The software development kit
includes DLL files for programming
in C,C++or other high level
languages and OCX files for Visual
Basic or Active X programming.
LabView drivers are also included.
Specifications
PCI BUS TYPE: OME-PIO-D48U: 3.3 V/5 V universal OME-PEX-D48: PCI Express x 1
ALL INPUTS AND OUTPUTS
ARE TTL COMPATIBLE Logic High Voltage: 2.4 V (min) Logic Low Voltage: 0.8 V (max) Sink Current: 64 mA (max) Source Current: 32 mA (max) Power: +5 V @900 mA
ENVIRONMENTAL
Operating Temperature:
0 to 60°C (32 to 140°F) Storage Temperature:
-20 to 80°C (-4 to 176°F) Humidity: 0 to 90%
RH non-condensing Dimensions:
105 H x 156 mm W (4.1 x 6.1")
† Price are shown in RMB.
Note: OMEGACARE extended warranty program is available for models shown on this page. Ask your sales representative for full details when placing an order. OMEGACARE covers parts, labor and equivalent loaners. All boards include utility software and complete user's manual on CD ROM.
