Miniature Low Profile Tension Link Load Cells
Metric Ranges, 19 to 25 mm Height
LCM703 Series

LCM703 Series:Miniature Low Profile Tension Link Load Cells Metric Ranges, 19 to 25 mm Height

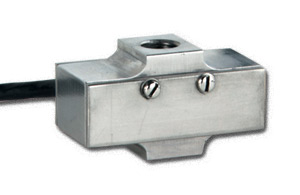

Click for larger image.

¥ 4,175.00  LCM703-100
• 5 Point NIST Traceable Calibration with 59 kOhm Shunt Cal Data Provided
• Low Profile
• High Accuracy
• Rugged Industrial Design

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

The LCM703 Series is an economical universal (Tension/Compression) load cell with an extremely low profile. Ranges above 50 kg are Stainless Steel; 50 kg and below are Aluminum. The LCM703’s low profile, economical price and rugged design make it suitable for many industrial applications including robotics, automated weighing systems or as part of a batch-process control system.

The LCM703 is also available in standard configurations, with 0-10 to 0-1,000 lb ranges and standard threads. Please see the LC703 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15V max)
Output: 2 mV/V nominal
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Linearity:
   10 to 100 lb: ±0.15%
   >100 lb: ±0.10 FSO
   5 to 50 kgf: ±0.15%
   75 to 500 kgf: ±0.10%
Hysteresis:
   10 to 100 lb: ±0.15%
   >100 lb: ±0.10 FSO
   5 to 50 kgf: ±0.15%
   75 to 500 kgf: ±0.10%
Repeatability: ±0.05%
Zero Balance: ±1.0% FSO
Operating Temp Range: -40 to 82°C (-40 to 180°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.005% FSO/°F
   Span: ±0.005%% FSO/°F
Protection Class: IP54
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Output Resistance: 350 ±10 Ω
Input Resistance: 360 Ω minimum
Full Scale Deflection: 0.08 mm (0.003") nominal
Construction:
   ≤100 lb: Aluminum
   >100 lb: 17-4 PH stainless steel
   ≤50 kg: Aluminum
   >50 kg: 17-4 PH stainless steel
Electrical: 3.6 m (12') shielded 4-conductor PVC cable
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LCM703-5 2 Weeks   ¥3,975.00    Miniature universal load cell with ±5 kgF range
 LCM703-10 2 Weeks   ¥4,050.00    Miniature universal load cell with ±10 kgF range
 LCM703-25 2 Weeks   ¥4,430.00    Miniature universal load cell with ±25 kgF range
 LCM703-50 2 Weeks   ¥4,195.00    Miniature universal load cell with ±50 kgF range
 LCM703-75 2 Weeks   ¥4,430.00    Miniature universal load cell with ±75 kgF range
 LCM703-100 12 Weeks   ¥4,175.00    Miniature universal load cell with ±100 kgF range
 LCM703-150 12 Weeks   ¥3,975.00    Miniature universal load cell with ±150 kgF range
 LCM703-250 2 Weeks   ¥5,895.00    Miniature universal load cell with ±250 kgF range
 LCM703-500 In Stock   ¥5,555.00    Miniature universal load cell with ±500 kgF range
 Swivel Rod Ends
 MREC-M5M 6 Weeks   ¥223.00    Swivel rod end for 5 kgf range
 MREC-M6M 2 Weeks   ¥223.00    Swivel rod end for 10 kgf range
 MREC-M10M 7 Weeks   ¥223.00    Swivel rod end for 25 TO 500 kgf ranges
† Price are shown in RMB.

 Ordering Example: (1) LCM703-100 is a 100 kgF capacity universal link with 3.6 m cable, ¥4,175.00
