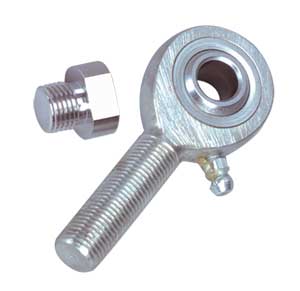

Load Buttons and Rod Ends for Metric Load Cells

MLBC, MREC

Click for larger image.

^¥ 645.00 MLBC-M6

•	Insures Proper Loading and Helps Prevent Damage
•	Load Buttons for Compression Applications
•	Rod Ends for Tension Applications
View related products - Load Cells, Force Sensors and Torque Transducers

LOAD CELL OPTIONS (Limited Models Only)
Temperature Compensation:
    "-TC1" Extended compensated range
    -46 to 93°C (-50 to 200°F) not exceeding operating range ..... $50
    "-TC2"-46 to 163°C (-50 to 325°F) .................................... 225

Additional cable Length:
    4 conductor PVC ................................................. $2.00/ft
    4 conductor PTFE ................................................. 4.50/ft
    6 conductor PVC .................................................. 2.75/ft
    6 conductor PTFE ................................................. 6.50/ft

Mating Connectors:
    PT06F10-6S ........................................................ $26.50
    PT06A10-6S ..........................................................18.00

Calibration/Recalibration: (standard on most models)
    "NC5" 5 point calibration ....................................... $160
    0%, 50%, 100%, 50%, 0% FS
    Extra calibration points .......................................... $25/point

Built-In Amplifiers:
    0 to 5 Vdc ........................................................... $175
    4 to 20 mA ........................................................... 195

In-Line Amplifiers: Consult Engineering

METRIC LOAD BUTTONS AND ROD ENDS
For full product specifications and dimensions click on the "SPECS" link above.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Load Buttons

MLBC-M6	12 Weeks	¥645.00	Load button with M6 x 1.0 metric thread	qty.

MLBC-M10	2 Weeks	¥645.00	Load button with M10 x 1.5 metric thread	qty.

MLBC-M12	9 Weeks	¥645.00	Load button with M12 x 1.75 metric thread	qty.

MLBC-M16	12 Weeks	¥840.00	Load button with M16 x 2.0 metric thread	qty.

MLBC-M20	10 Weeks	¥840.00	Load button with M20 x 1.5 metric thread	qty.

MLBC-M24	12 Weeks	¥970.00	Load button with M24 x 2.0 metric thread	qty.

MLBC-M36		Consult sales	Load button with M36 x 2.0 metric thread	qty.


Male Rod Ends

MREC-M5M	6 Weeks	¥223.00	Rod end with M5 x 0.8 male metric thread	qty.

MREC-M6M	2 Weeks	¥223.00	Rod end with M6 x 1.0 male metric thread	qty.

MREC-M8M	6 Weeks	¥223.00	Rod end with M8 x 1.25 male metric thread	qty.

MREC-M10M	7 Weeks	¥223.00	Rod end with M10 x 1.5 male metric thread	qty.

MREC-M12M	6 Weeks	¥223.00	Rod end with M12 x 1.75 male metric thread	qty.

MREC-M16M	2 Weeks	¥445.00	Rod end with M16 x 2.0 male metric thread	qty.

MREC-M20M	2 Weeks	¥445.00	Rod end with M20 x 1.5 male metric thread	qty.

MREC-M24M	43 Weeks	¥9,650.00	Rod end with M24 x 2.0 male metric thread	qty.


Female Rod Ends

MREC-M5F	6 Weeks	¥223.00	Rod end with M5 x 0.8 female metric thread	qty.

MREC-M6F		¥223.00	Rod end with M6 x 1.0 female metric thread	qty.

MREC-M10F	6 Weeks	¥223.00	Rod end with M10 x 1.5 female metric thread	qty.

MREC-M12F	2 Weeks	¥222.00	Rod end with M12 x 1.75 female metric thread	qty.

MREC-M20F	6 Weeks	¥445.00	Rod end with M20 x 1.5 female metric thread	qty.

† Price are shown in RMB.

Ordering Example: (1) MLBC-M20 load button with M20 x 1.5 metric thread, ¥840.00
