High Accuracy Miniature Tension & Compression Load Cells | 2" Diameter | 25 to 10,000 lb |
| LC203 and LC213 Series |
|
 |
|
|
|
|
|
¥
9,315.00
LC203-25
|
| • |
5-Point NIST Traceable Calibration with 59 kOhm Shunt Cal Data
|
| • |
High Accuracy
|
| • |
1.0% Interchangeability for Scale Applications
|
| • |
Hermetically Sealed
|
| • |
Miniature Package for Test Stands and Difficult Locations
|
| • |
Rugged, Heavy Duty Construction
|
| • |

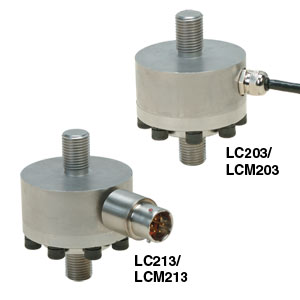

LC203 Cable Style, LC213 Connector Style
|
| • |
LCM203 Metric Cable Style, LCM213 Metric Connector Style
|
| • |
See Related Links Below for Cables and Accessories
|
View related products - Load Cells, Force Sensors and Torque Transducers
|
| |
|
|
|
 |
OMEGA’s LC203 Series is a high accuracy, miniature, low profile industrial load cell. It is supplied with a stud at each end for easy in-line mounting. The tough, corrosion resistant steel construction and high accuracy strain gages make them suitable for most industrial weighing applications.
The LC203 is also available in metric configurations, with ranges from 0-100 to 0-50,000 N and metric threads.
Please see the LCM203 for complete details, or contact our Pressure department for more information.
SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V ±1.0%
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Linearity: ±0.15% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Deflection: 0.025 to 0.075 mm (0.001 to 0.003")
Protection Class: IP65
Operating Temp Range: -46 to 107°C (-50 to 225°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.006% FSO/°C
Span: 0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 Ω minimum
Output Resistance: 350 ±10 Ω
Construction: Stainless steel
Electrical: 3 m (10') 4-conductor PVC shielded cable
LC213/LCM213 Mating Connector: PT06F10-6S, sold separately
|
|
|
|
|
|
† Price are shown in RMB.
Note: All LC203 Series load cells include a 5 point NIST traceable calibration certificate.
LC213 Mating Connector: PT06F10-6S (not included)
Ordering Example: (1) LC203-2K +/- 2,000 lb capacity load cell, ¥9,370.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Cable or Connector Style
|
| |
Select
203 for Cable Style
213 for Connector Style
|
(2)
|
|
| |
Select
25 for 25 lb range
50 for 50 lb range
100 for 100 lb range
200 for 200 lb range
300 for 300 lb range
350 for 350 lb range
400 for 400 lb range
500 for 500 lb range
750 for 750 lb range
1K for 1000 lb range
1.5K for 1500 lb range
2K for 2000 lb range
2.5K for 2500 lb range
5K for 5000 lb range
8K for 8000 lb range
10K for 10000 lb range
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
