Strain Amplifier/Signal Conditioners Modules for Strain Gages, Load Cells and Transducers
DMD-465
5 year warranty

DMD-465:Strain Amplifier/Signal Conditioners Modules for Strain Gages, Load Cells and Transducers

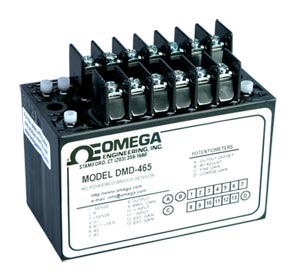

Click for larger image.

¥ 5,080.00  DMD-465
• Bridge Excitation 4 to 15 Vdc up to 120 mA
• Works with Bridge Circuits of 120 Ohms or Higher
• Adjustable Gain and Offset
• 6-Wire Bridge Connections
• Voltage and Current Output Versions
• 115, 230 Vac and dc Powered Models

View related products - Accessories for Pressure Measurement

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The DMD-460 Series bridge amplifiers are self contained, ac or dc powered signal conditioning modules for strain gages, load cells and bridge-type sensors. The DMD 465 contains a precision differential instrumentation amplifier with voltage output. The DMD 465WB is similar, but has a frequency response to 2 kHz. The DMD 466 is similar to the above units, but with a 4 to 20 mA output instead of a voltage output.

SPECIFICATIONS
Common
Power: Standard 115 Vac or optional 220 Vac ±10% 50/60 Hz or 10 to 36 Vdc 0.7 A @ 10V, 0.17 A @ 36V at maximum excitation load
Operating Temperature: 0 to 70°C (32 to 158°F)
Storage Temperature: -25 to 85°C (-13 to 185°F)
Weight: 510 g (18 oz)
Size: 96 L x 51 W x 73 mm H (3.75 x 2 x 2.87")

Bridge Supply
Excitation Voltage Range: 4 to 15 Vdc
Current Output: 120 mA max
Line and Load Regulation: (0 to 100 mA) 0.05% max
Output Noise: 0.5 mVrms

Voltage Output, DMD-465 and DMD-465WB
Gain Range: 40 to 250 (up to 1000 with external resistor on DMD-465 only)
Dynamic Response:
   DMD-465: DC to -3 dB = 3 Hz
   DMD-465WB: DC to -3 dB = 2 kHz
Max Output (2 kΩ Load): ±10 Vdc
Output Impedance: 0.01 to 1 Ω
Output Offset: -5 to 2V (DMD-465WB only)
Gain Temp Coefficient: 200 ppm/°C
Input Bias Current: 30 nA
Input Impedance: 3000 MΩ
Output Noise (RTO): @ gain = 100
   DMD-465: 120 µVrms
   DMD-465WB: 1 Hz to 2 kHz = 2 mV
Input Noise Line Frequency: 15 µV p-p
Common-Mode Rejection: 90 dB @ gain 40, 100 dB @ gain 250
Common-Mode Input Voltage: ±15V

4 to 20 mA Transmitter DMD-466
Output: 4 to 20 mA, 0 to 20 mA
Input Range for 20 mA Output: 10 mV min, 50 mV max
Zero Adjust: 0 to ±12 mA
Linearity: ±0.05% FS
Temperature Stability: 200 ppm/°C
Input Impedance: 1000 MΩ
Common-Mode Rejection: 90 dB
Common-Mode Input Voltage: ±15V
Compliance Voltage: 10 Vdc
Output Noise: 1 µA rms @ gain 0.2 mA/mV, 1 to 100 Hz
Dynamic Response: DC to -3 dB = 3 Hz
Response Time:
   200 ms: to 99% of final value, typical
   300 ms: to 99.9% of final value, typical
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 DMD-465 In Stock   ¥5,080.00    Strain gage amplifier with voltage output and 110 Vac power
 DMD-465-220V    Consult sales   Strain gage amplifier with voltage output and 220 Vac power
 DMD-465WB 2 Weeks   ¥5,905.00    High frequency strain gage amplifier with voltage output and 110 Vac power
 DMD-465WB-220V    Consult sales   High frequency strain gage amplifier with voltage output and 220 Vac power
 DMD-466 44 Weeks   ¥5,905.00    Strain gage amplifier with 4-20 mA output and 110 Vac power
 DMD-466-220V    Consult sales   Strain gage amplifier with 4-20 mA output and 220 Vac power
 DMD-466-DC    Consult sales   Strain gage amplifier with 4-20 mA output and 10-36 Vdc power
 Accessories
 DIN400    Consult sales   DIN Rail Mounting Kit
 POWER CORD-SE 5 Weeks   ¥103.00    AC Power cord with stripped end termination
† Price are shown in RMB.

 Ordering Example: (1) DMD-465WB is a wide bandwidth amplifier/signal conditioner module, with 115 Vac power., ¥5,905.00

 Related Links - Manual
 Product Manual
   Download  DMD-465 - Bridge Sensor AC Powered Signal Conditioner
   Download  DMD-465WB - Bridge Sensor AC Powered Signal Conditioner
   Download  DMD-466 Bridge Sensor - AC Powered Signal Conditioner
