Subminiature Tension & Compression Load Cell | 0.75" Diameter | 25 to 300 lb |
| LC201 |
|
 |
|
|
|
|
 |

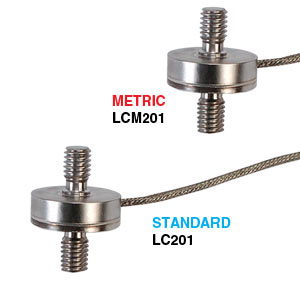

OMEGA’s LC201 Series subminiature load cell is designed for the demanding environment of industrial automation and robotics. With a diameter of only 0.75" (19 mm) and all stainless steel construction, it can fit into small systems and survive harsh environments. The LC201 delivers high accuracy and long term reliability in a subminiature package.
The LC 201 is also available in metric configurations, with ranges from 0-100 to 0-500 N and metric threads.
Please see the LCM201 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V nominal
Accuracy: ±1.0% FSO linearity, hysteresis, repeatability combined
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Protection Class: IP54
Thermal Effects:
Zero: 0.018% FSO/°C
Span: 0.018% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±10 Ω
Construction: Stainless steel
Electrical: 1.5 m (5') 4-conductor shielded cable with compensation board
|
|
|
|
|
|
† Price are shown in RMB.
Note: All LC201 load cells include a 5 point NIST traceable calibration certificate.
Ordering Example: (1) LC201-25 is a 25 lb capacity subminiature universal load cell,, ¥6,585.00
|
|
|
|
|
| |
|
