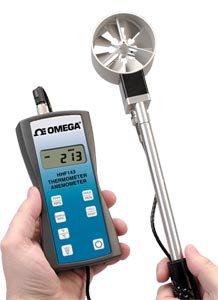

The OMEGA™ HHF143 rotating vane anemometer series are
high-quality instruments providing highly accurate air velocity and
temperature measurements in harsh environments via a userfriendly
and intuitive interface. Applications include indoor air
quality, process control, flow hood monitoring, and many other
applications where precise air flow and temperature measurement
is required.
SPECIFICATIONS Ranges HHF143A: 1.5 to 35.00 MPS (300 to 6800 FPM) HHF143B: 0.2 to 40.00 MPS (40 to 7800 FPM) Temperature (Using EitherAir Velocity Probe Head): -30 to 100°C
(-22 to 212°F) Accuracy Air Velocity: 2.75" Probes: ±1.0% of rdg ±1-digit 1" Probes: ±0.5% FS ±0.75% rdg; ± 1-digit Temperature: ±(0.3°C + 0.2% of rdg in °C) Temperature Accuracy Examples: ±0.3°C @ 20°C (±0.5°F @ 68°F)
Resolution Air Velocity: 0.01 MPS or 1 FPM Temperature: 0.1°C or °F (1°F below -99.9°F) Display: 12.7 mm (0.5") LCD, 4-digits, with LED backlight Operating Temp: Instrument: 0 to 50°C (32 to 125°F) Air Probe: -20 to 100°C (-4 to 212°F) Power Supply: 3 "AA" alkaline batteries (included) Battery Life: Approx 150 hours Dimensions: Instrument: 165 x 83 x 38 mm (6.5 x 3.25 x 1.5") HHF143A: 25 mm (1") diameter HHF143B: 70 mm (2.75") diameter Cable: 1.5 m (5')
† Price are shown in RMB.
Note: Comes with NIST certificate (No data points), vane sensor [25 or 70 mm (1 or 2 ¾") depending on model], 3 extension rods (flexible, straight and w/handle), 1.5 m (5') cable, 3 "AA" alkaline batteries, hard carrying case and user's manual. For units with a protective boot add "-PB" to the model number and $55 to the price. For units with USB communications add "-USB" to the model number and $195 to the price. For units with a 0 to 5 Vdc voltage output add "-V" to the model number and $225 to the price.
