High Accuracy Handheld Rotating Vane Anemometer

HHF142

Click for larger image.

^¥ 10,165.00 HHF142B

•	Enter, Store, and Recall Up to 10 Duct Sizes
•	High Accuracy (±1.0% of Reading)
•	Low Speed Sensitivity
•	Wide Temperature Range from -20 to 100°C (-4 to 212°F)
•	Minimum and Maximum Capture
•	Analog Voltage Output and Communication Options
•	Nist certificate (3 data points)
View related products - Anemometers & Wind Tunnels

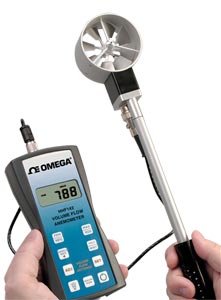

The OMEGA™ HHF142 rotating vane anemometer is a high-quality instrument providing accurate air velocity and volume flow measurements in harsh environments. The user can easily enter the size of the duct opening and the HHF142 automatically calculates the volume flow rate from the duct. The duct size is automatically stored in memory on turn-off and up to 10 unique duct sizes can be stored and recalled for frequent use.

SPECIFICATIONS
Ranges
    HHF142A: 1.5 to 35.00 MPS (300 to 6800 FPM)
    HHF142B: 0.2 to 40.00 MPS (40 to 7800 FPM)
Calculated Air Volume Flow: 0.0 to 9999 CFM (0.0 to 9999 CMH)
Accuracy:
    2.75" Probes: ±1.0% of reading ±1-digit
    1" Probes: ±0.75% of reading + 0.5% FS, ±1-digit
Resolution: 1 FPM or 0.01 MPS
Display: 12.7 mm (0.5") LCD, 4-digits, with LED backlight
Operating Temp:
    Instrument: 0 to 50°C (32 to 125°F)
    Probe: -20 to 100°C (-4 to 212°F)
Power Supply: 3 "AA" alkaline batteries (included)
Battery Life: Approximately 150 hours
Dimensions:
    Instrument: 165 x 83 x 38 mm (6.5 x 3.25 x 1.5")
    HHF142A: 25 mm (1") dia. probe
    HHF142B: 70 mm (2.75") dia. probe
    Cable: 1.5 m (5')
Outputs (Optional): USB or 0 to 5 Vdc analog signal

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
HHF142A		Consult sales	Handheld anemometer with 25 mm (1") dia probe	qty.

HHF142A-USB	8 Weeks	¥16,400.00	Handheld anemometer with 25 mm (1") dia probe, with USB communications	qty.

HHF142A-V	2 Weeks	¥16,400.00	Handheld anemometer with 25 mm (1") dia probe, with 0 to 5 Vdc analog output	qty.

HHF142B		¥10,165.00	Handheld anemometer with 70 mm (2¾") dia probe	qty.

HHF142B-USB	7 Weeks	¥12,595.00	Handheld anemometer with 70 mm (2¾") dia probe, with USB communications	qty.

HHF142B-V	2 Weeks	¥12,595.00	Handheld anemometer with 70 mm (2¾") dia probe, with 0 to 5 Vdc analog output	qty.


Accessories

HHF140B-RP	7 Weeks	¥6,865.00	70 mm (2.75") vane probe	qty.

HHF140A-RP	2 Weeks	¥10,325.00	25 mm (1") vane probe and 1.5 m (5') cable	qty.

HHF140B-CABLE	2 Weeks	¥1,830.00	Replacement 1.5 m (5') connector cable	qty.

HHF140B-T-CABLE	5 Weeks	¥1,930.00	Replacement 1.5 m (5') connector cable with temp	qty.

HHF140-232-CABLE	5 Weeks	¥1,285.00	Replacement Serial cable RS232	qty.

HHF140-USB-CABLE	5 Weeks	¥1,160.00	Replacement Serial cable USB	qty.

HHF140-V-CABLE	5 Weeks	¥850.00	Analog output cable	qty.

MN1500-4		Consult sales	Replacement AA batteries, package of 4	qty.

† Price are shown in RMB.

Note: Comes with NIST certificate (3 data points), vane sensor [25 or 70 mm (1 or 2 ¾") depending on model], 3 extension rods (flexible, straight and with handle), 1.5 m (5') cable, 3 "AA" alkaline batteries, hard carrying case and operator's manual.
For units with a protective boot and splash proof seals add "-PB" to the model number and $75 to the price.
