NEMA 4型单门电气外壳，尺寸为12x24 ～ 72x36

SCE-LP Series Single-Door Electrical Enclosures

Electrical Enclosures

^¥5,878.64 SCE-122406LP

下单

0.063 & 0.075" Carbon Steel
Seams Continuously Welded and Ground Smooth, No Holes or Knockouts
Flange Trough Collar Around All Sides of Door Opening
Door Clamps Are Quick and Easy to Operate
Concealed Hinge
Hasp and Staple for Padlocking
Oil Resistant Gasket
Collar Studs for Mounting Optional Panels
Ground Stud on Door
Removable Print Pocket Furnished if Height and Width of Enclosure is 24" or More

NEMA标准外壳 - 查看相关产品

产品描述

Application
The SCE-LP series of electrical enclosures and cabinets are designed to house electrical and electronic controls, instruments, and components. Provides protection from dust, dirt, oil and water.

Finish
ANSI-61 recoatable gray finish over phosphatized surfaces. Optional panels are powder coated white.

Industry Standards
NEMA Type 4, 12 & Type 13
UL Listed Type 4, 12
CSA Type 12
IEC 60529 IP 66

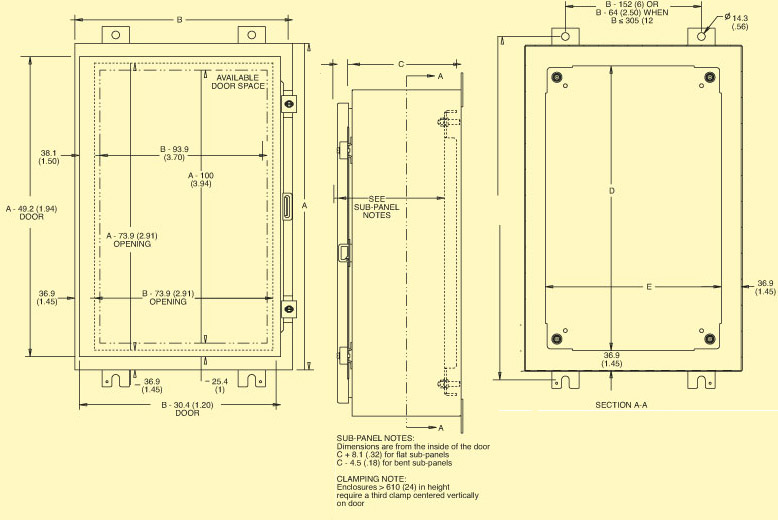

SCE_Wall-1door Enclosure Diagram

Galvanized steel sub-panels are available for the SCE-LP series enclosures. To order, add "GALV" to the end of the model number in the table at the bottom of this page.

订购所有价格均为人民币税前价格，不包括13%增值税和运费！(指定型号)

其他客户同时购买: 这个图标可以点击扩大，跳出的清单包括了其他客户在购买此产品时同时购买的其它产品。

产品编号产品描述

数量

产品描述

ENCLOSURES - sub-panels sold separately

SCE-161606LP

¥5,769.66

货期: 4 周

16"Hx16"Wx6"D

SCE-161608LP

¥6,198.37

货期: 4 周

16"Hx16"Wx8"D

SCE-16P16

¥679.44

货期: 2 周

Sub-Panel for 16x16

SCE-162006LP

¥6,300.11

货期: 4 周

16"Hx20"Wx6"D

SCE-162008LP

¥6,627.10

货期: 4 周

16"Hx20"Wx8"D

SCE-20P16

¥759.39

货期: 6 周

Sub-Panel for 20x16

SCE-202008LP

¥7,048.57

货期: 4 周

20"Hx20"Wx8"D

SCE-202406LP

¥7,266.56

货期: 4 周

20"Hx24"Wx6"D

SCE-202408LP

¥7,688.02

货期: 4 周

20"Hx24"Wx8"D

SCE-24P20

¥1,206.26

货期: 6 周

Sub-Panel for 20x24

SCE-241206LP

¥6,089.39

货期: 4 周

24"Hx12"Wx6"D

SCE-12P24

¥831.30

货期: 2 周

Sub-Panel for 24x12

SCE-242408LP

¥7,942.34

货期: 4 周

24"Hx24"Wx8"D

SCE-24P24

¥1,322.53

货期: 6 周

Sub-Panel for 24 x 24

Enclosures below must ship by Truck Freight

SCE-203006LP

¥8,654.47

货期: 4 周

20"Hx30"Wx6"D

SCE-30P20

¥1,533.26

货期: 6 周

Sub-Panel for 20x30

SCE-243008LP

¥8,015.02

货期: 4 周

24"Hx30"Wx8"D

SCE-30P24

¥1,533.26

货期: 4 周

Sub-Panel for 24x30

ACCESSOIRES

Swing Out Panel Kits for NEMA Type 12 Enclosures - allows installation of sub-panels in front of enclosure with swing out access. more info

SCE-NADFK

¥1,159.03

货期: 4 周

Swing Out Panel Kits for enclosure sub-panels 30" or less.

SCE-NADFK-3

¥1,511.45

货期: 4 周

Swing Out Panel Kits for enclosure sub-panels larger than 30".

Drip Shield Kit - includes stainless steel screws and sealing washers

SCE-DS12N4

¥911.24

货期: 4 周

for 12" wide electrical enclosures

SCE-DS16N4

¥1,047.14

货期: 4 周

for 16" wide electrical enclosures

SCE-DS20N4

¥1,095.08

货期: 4 周

for 20" wide electrical enclosures

SCE-DS24N4

¥1,214.97

货期: 4 周

for 24" wide electrical enclosures

SCE-DS30N4

¥1,242.60

货期: 4 周

for 30" wide electrical enclosures

SCE-DS36N4

¥1,257.12

货期: 4 周

for 36" wide electrical enclosures

SCE-DS42N4

¥1,387.92

货期: 4 周

for 42" wide electrical enclosures

SCE-DS48N4

¥1,518.72

货期: 4 周

for 48" wide electrical enclosures

SCE-DS60N4

¥1,838.44

货期: 4 周

for 60" wide electrical enclosures

SCE-DS72N4

¥2,070.97

货期: 4 周

for 72" wide electrical enclosures

Popular 22mm Push Buttons, NEMA 4/4X/13

OMPBD7D-P4N3

¥727.41

货期: 2 周

Red LED indicating light, 24Vac/dc

OMPBD7D-P3N3

¥727.41

货期: 6 周

Amber LED indicating light, 24Vac/dc

OMPBD7D-P5N3

¥633.07

货期: 6 周

Green LED indicating light, 24Vac/dc

OMPBD7D-P4N5

¥727.41

货期: 6 周

Red LED indicating light, 120Vac

OMPBD7D-P3N5

¥727.41

货期: 2 周

Amber LED indicating light, 120 Vac

OMPBD7D-P5N5

¥727.41

货期: 6 周

Green LED indicating light, 120Vac

OMPBD7P-F2PX10

¥433.24

货期: 4 周

Black, momentary flush push button, 1 NO contact

OMPBD7P-F3PX10

¥433.24

货期: 4 周

Green, momentary flush push button, 1 NO contact

OMPBD7P-E4PX01

¥474.81

货期: 4 周

Red, momentary extended push button, 1 NC contact

OMPBD7P-MT44PX01

¥927.22

货期: 4 周

Red 40mm "Twist-to-Release" maintained push button, 1 NC contac

OMPBD7P-MT64PX01

¥1,023.13

货期: 4 周

Red 60mm "Twist-to-Release" maintained push button, 1 NC contact

OMPBD7P-MP44PX01

¥927.22

货期: 4 周

Red 40mm "Push-Pull" maintained push button, 1 NC contact

按产品编号购买

产品编号

数量

产品编号

数量

† 所有金额以RMB显示
订购示例: (1) SCE - 161206LP Type 12 Single - Door Enclosure, ¥5,449.92
