NEMA 1型单门电气外壳。 尺寸为6x6 ~ 36x30。

SCE-NLP Series NEMA Electrical Enclosures.

Electrical Enclosure | SCE-NLP Series NEMA Electrical Enclosures.

Electrical Enclosure

¥943.21 SCE-6N604LP

1年保修
  • Ideal for instruments, electrical controls and components
  • 0.060 and 0.075" Carbon Steel Depending on its Size
  • Spot Weld Construction
  • Standoffs Provided for Mounting Optional Panels
  • Doors Open 180º
  • Black Quarter Turn Latches
  • Latches Are Opened or Closed with a Screwdriver
  • Ground Stud On Door
  • Mounting Holes in Back of Enclosure
NEMA标准外壳 - 查看相关产品

产品描述

Application
The SCE-NLP Series electrical enclosures are designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection.

Finish
ANSI-61 gray powder coat inside and out over phosphatized surface. Optional panels are powder coated white.

Industry Standards
NEMA Type 1
UL Listed Type 1
CSA Type 1
IEC 60529 IP 30

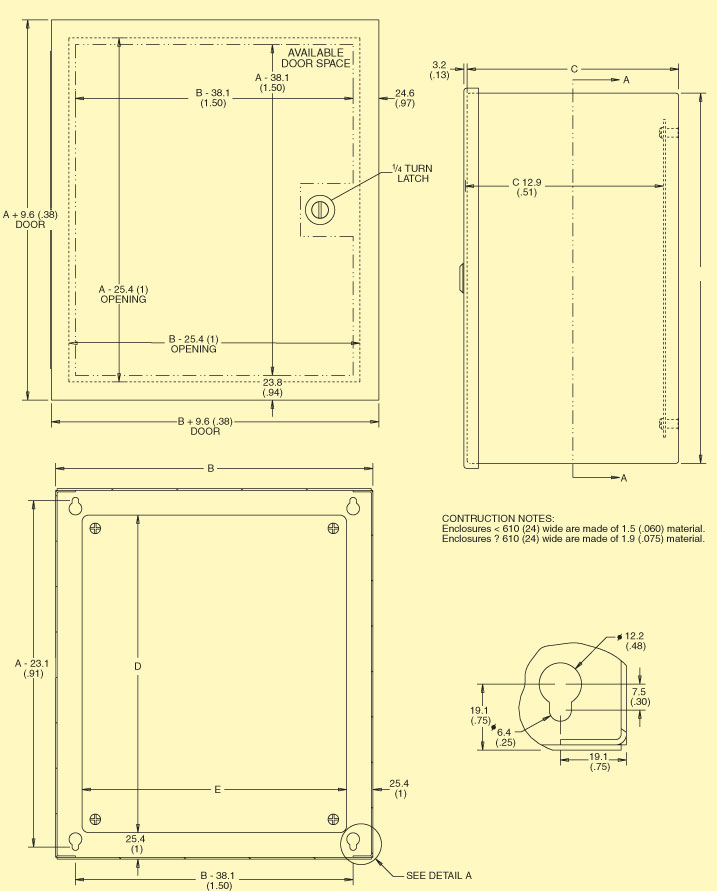

SCE_LP Series Dimensions Diagram
订购 所有价格均为人民币税前价格,不包括13%增值税和运费!(指定型号)
网上下单立享5%折扣!

其他客户同时购买: 这个图标可以点击扩大,跳出的清单包括了其他客户在购买此产品时同时购买的其它产品。

产品编号产品描述
数量
产品描述
ELECTRICAL ENCLOSURES - sub-panels sold separately
Quick Ship

SCE-6N604LP
¥943.21
货期: 4 周

6" H, 6" W, 4" D
Quick Ship

SCE-6N6MP
¥84.76
货期: 4 周

Sub-Panel for 6 x 6

Quick Ship

SCE-8N604LP
¥1,119.06
货期: 4 周

8" H, 6" W, 4" D
Quick Ship

SCE-8N6MP
¥111.92
货期: 4 周

Sub-Panel for 8 x 6

Quick Ship

SCE-8N804LP
¥1,140.85
货期: 4 周

8" H, 8" W, 4" D
Quick Ship

SCE-8N806LP
¥1,246.94
货期: 4 周

8" H, 8" W, 6" D
Quick Ship

SCE-8N8MP
¥99.12
货期: 4 周

Sub-Panel for 8 x 8

Quick Ship

SCE-10N804LP
¥1,228.06
货期: 4 周

10" H, 8" W, 4" D
Quick Ship

SCE-10N806LP
¥1,198.99
货期: 4 周

10" H, 8" W, 6" D
Quick Ship

SCE-10N8MP
¥139.10
货期: 4 周

Sub-Panel for 10 x 8

Quick Ship

SCE-10N1004LP
¥1,249.85
货期: 4 周

10" H, 10" W, 4" D
Quick Ship

SCE-10N1006LP
¥1,198.99
货期: 4 周

10" H, 10" W, 6" D
Quick Ship

SCE-10N10MP
¥164.67
货期: 4 周

Sub-Panel for 10 x 10

Quick Ship

SCE-12N1004LP
¥1,504.19
货期: 4 周

12" H, 10" W, 4" D
Quick Ship
Click to expand/minimize a list of what others bought with theSCE-12N1006LP
SCE-12N1006LP
¥1,627.72
货期: 4 周

12" H, 10" W, 6" D
Quick Ship

SCE-12N10MP
¥166.26
货期: 4 周

Sub-Panel for 12 x 10

Quick Ship

SCE-12N1204LP
¥1,642.25
货期: 4 周

12" H, 12"W, 4" D
Quick Ship

SCE-12N1206LP
¥1,845.72
货期: 4 周

12" H, 12" W, 6" D
Quick Ship

SCE-12N1208LP
¥2,034.64
货期: 4 周

12" H, 12" W, 8" D
Quick Ship

SCE-12N12MP
¥177.46
货期: 4 周

Sub-Panel for 12 x 12

Quick Ship

SCE-14N1204LP
¥1,700.39
货期: 4 周

14" H, 12" W, 4" D
Quick Ship

SCE-14N1206LP
¥1,911.11
货期: 6 周

14" H, 12" W, 6" D
Quick Ship

SCE-14N1208LP
¥2,259.92
货期: 6 周

14" H, 12" W, 8" D
Quick Ship

SCE-14N12MP
¥204.64
货期: 6 周

Sub-Panel for 14 x 12

Quick Ship
Click to expand/minimize a list of what others bought with theSCE-16N1206LP
SCE-16N1206LP
¥2,761.30
货期: 4 周

16" H, 12" W, 6" D
Quick Ship

SCE-16N1208LP
¥3,255.43
货期: 2 周

16" H, 12" W, 8" D
Quick Ship

SCE-16N12MP
¥330.94
货期: 2 周

Sub-Panel for 16 x 12

Quick Ship

SCE-16N1606LP
¥3,335.36
货期: 4 周

16" H, 16" W, 6" D
Quick Ship

SCE-16N1608LP
¥3,684.16
货期: 4 周

16" H, 16" W, 8" D
Quick Ship

SCE-16N16MP
¥581.93
货期: 4 周

Sub-Panel for 16 x 16

Quick Ship

SCE-16N2006LP
¥3,764.09
货期: 4 周

16" H, 20" W, 6" D
Quick Ship

SCE-20N16MP
¥586.72
货期: 4 周

Sub-Panel for 16 x 20

Quick Ship

SCE-20N1606LP
¥3,458.89
货期: 2 周

20" H, 16" W, 6" D
Quick Ship

SCE-20N1608LP
¥4,062.01
货期: 4 周

20" H, 16" W, 8" D
Quick Ship

SCE-20N16MP
¥586.72
货期: 4 周

Sub-Panel for 20 x 16

Quick Ship

SCE-20N2006LP
¥4,091.09
货期: 4 周

20" H, 20" W, 6" D
Quick Ship

SCE-20N2008LP
¥4,490.74
货期: 4 周

20" H, 20" W, 8" D
Quick Ship

SCE-20N2010LP
¥4,846.81
货期: 4 周

20" H, 20" W, 10" D
Quick Ship

SCE-20N20MP
¥759.39
货期: 4 周

Sub-Panel for 20 x 20

Quick Ship

SCE-24N1606LP
¥4,062.01
货期: 4 周

24" H, 16" W, 6" D
Quick Ship

SCE-24N16MP
¥663.44
货期: 4 周

Sub-Panel for 24 x 16

Quick Ship

SCE-24N2006LP
¥4,541.59
货期: 4 周

24" H, 20" W, 6" D
Quick Ship

SCE-24N2008LP
¥4,577.94
货期: 4 周

24" H, 20" W, 8" D
Quick Ship

SCE-24N2010LP
¥5,428.13
货期: 4 周

24" H, 20" W, 10" D
Quick Ship

SCE-24N20MP
¥839.29
货期: 4 周

Sub-Panel for 24 x 20

Quick Ship

SCE-24N2406LP
¥4,592.47
货期: 4 周

24" H, 24" W, 6" D
Quick Ship

SCE-24N2408LP
¥4,665.14
货期: 4 周

24" H, 24" W, 8" D
Quick Ship

SCE-24N2412LP
¥5,500.78
货期: 4 周

24" H, 24" W, 12" D
Quick Ship
Click to expand/minimize a list of what others bought with theSCE-24N24MP
SCE-24N24MP
¥967.19
货期: 4 周

Sub-Panel for 24 x 24

Electrical Enclosures below must ship by Truck Freight

Quick Ship

SCE-30N2406LP
¥4,439.87
货期: 4 周

30" H, 24" W, 6" D
Quick Ship

SCE-30N2408LP
¥4,919.46
货期: 4 周

30" H, 24" W, 8" D
Quick Ship

SCE-30N2412LP
¥5,835.04
货期: 4 周

30" H, 24" W, 12" D
Quick Ship

SCE-30N24MP
¥1,140.85
货期: 4 周

Sub-Panel for 30 x 24

Quick Ship

SCE-30N3008LP
¥5,704.25
货期: 6 周

30" H, 30" W, 8" D
Quick Ship

SCE-30N30MP
¥1,525.98
货期: 6 周

Sub-Panel for 30 x 30

Quick Ship

SCE-36N2406LP
¥5,173.78
货期: 4 周

36" H, 24" W, 6" D
Quick Ship

SCE-36N2408LP
¥5,704.25
货期: 4 周

36" H, 24" W, 8" D
Quick Ship

SCE-36N2412LP
¥6,685.23
货期: 4 周

36" H, 24" W, 12" D
Quick Ship

SCE-36N24MP
¥1,380.66
货期: 4 周

Sub-Panel for 36 x 24

Quick Ship

SCE-36N3006LP
¥5,704.25
货期: 4 周

36" H, 30" W, 6" D
Quick Ship

SCE-36N3008LP
¥6,256.50
货期: 6 周

36" H, 30" W, 8" D
Quick Ship

SCE-36N3012LP
¥6,852.36
货期: 4 周

36" H, 30" W, 12" D
Quick Ship

SCE-36N30MP
¥1,794.85
货期: 6 周

Sub-Panel for 36 x 30

CABINET ACCESSORIES
Quick Ship

POWER CORD-SE-M16
¥183.85
货期: 2 周

8' Power cord with M16 cable gland strain relief, 3x16 AWG, 250Vac max.
Pre-cut 35x7.5 mm DIN Rail - Lengths are Cut to Match Width of Sub-panels
Quick Ship

DRTB-RAIL-4
¥99.80
货期: 2 周

Pre-cut DIN rail for 4" wide enclosure, actual width 2.75"
Quick Ship

DRTB-RAIL-6
¥99.80
货期: 8 周

Pre-cut DIN rail for 6" wide enclosure, actual width 4.75"
Quick Ship

DRTB-RAIL-8
¥99.80
货期: 8 周

Pre-cut DIN rail for 8" wide enclosure, actual width 6.75"
Quick Ship

DRTB-RAIL-10
¥99.80
货期: 2 周

Pre-cut DIN rail for 10" wide enclosure, actual width 8.75"
Quick Ship

DRTB-RAIL-12
¥123.93
货期: 2 周

Pre-cut DIN rail for 12" wide enclosure, actual width 10.75"
Quick Ship

DRTB-RAIL-14/16
¥119.10
货期: 8 周

Pre-cut DIN rail for 14 or 16" wide enclosure, actual width 12.75"
Quick Ship

DRTB-RAIL-20
¥123.93
货期: 8 周

Pre-cut DIN rail for 20" wide enclosure, actual width 16.75"
Quick Ship

DRTB-RAIL-24
¥119.10
货期: 2 周

Pre-cut DIN rail for 24" wide enclosure, actual width 20.75"
¼ Turn Door Latch Inserts for Additional Security and Easy Access
Quick Ship

SCE-DLCA
¥404.48
货期: 2 周

Recessed Coinproof Latch
Quick Ship

SCE-DLKLD
¥783.35
货期: 4 周

Chrome Key Locking Door Latch
Quick Ship

SCE-DLWKC
¥486.00
货期: 4 周

Chrome Wing Knob Latch
Quick Ship

SCE-KLWN
¥967.19
货期: 4 周

Chrome Key Locking Wing Knob Latch
Quick Ship

SCE-ELKLT
¥1,087.09
货期: 6 周

Chrome Key Locking "T" Handle
Quick Ship

SCE-DL7SC
¥486.00
货期: 2 周

Chrome 7mm Square Latch with Hand Key (Large)
Mounting Straps for Type 1 Enclosures
Quick Ship

SCE-NMST6
¥476.41
货期: 4 周

Mounting Straps for 6" W Enclosure
Quick Ship

SCE-NMST8
¥501.98
货期: 4 周

Mounting Straps for 8" W Enclosure
Quick Ship

SCE-NMST10
¥525.96
货期: 2 周

Mounting Straps for 10" W Enclosure
Quick Ship

SCE-NMST12
¥549.95
货期: 4 周

Mounting Straps for 12" W Enclosure
Quick Ship

SCE-NMST16
¥626.68
货期: 4 周

Mounting Straps for 16" W Enclosure
Quick Ship

SCE-NMST20
¥671.44
货期: 4 周

Mounting Straps for 20" W Enclosure
Quick Ship

SCE-NMST24
¥751.38
货期: 4 周

Mounting Straps for 24" W Enclosure
Popular 22mm Push Buttons, NEMA 4/4X/13
Quick Ship

OMPBD7D-P4N3
¥727.41
货期: 2 周

Red LED indicating light, 24Vac/dc
Quick Ship
Click to expand/minimize a list of what others bought with theOMPBD7D-P3N3
OMPBD7D-P3N3
¥727.41
货期: 6 周

Amber LED indicating light, 24Vac/dc
Quick Ship

OMPBD7D-P5N3
¥633.07
货期: 6 周

Green LED indicating light, 24Vac/dc
Quick Ship
Click to expand/minimize a list of what others bought with theOMPBD7D-P4N5
OMPBD7D-P4N5
¥727.41
货期: 6 周

Red LED indicating light, 120Vac
Quick Ship
Click to expand/minimize a list of what others bought with theOMPBD7D-P3N5
OMPBD7D-P3N5
¥727.41
货期: 2 周

Amber LED indicating light, 120 Vac
Quick Ship
Click to expand/minimize a list of what others bought with theOMPBD7D-P5N5
OMPBD7D-P5N5
¥727.41
货期: 6 周

Green LED indicating light, 120Vac
Quick Ship

OMPBD7P-F2PX10
¥433.24
货期: 4 周

Black, momentary flush push button, 1 NO contact
Quick Ship
Click to expand/minimize a list of what others bought with theOMPBD7P-F3PX10
OMPBD7P-F3PX10
¥433.24
货期: 4 周

Green, momentary flush push button, 1 NO contact
Quick Ship

OMPBD7P-E4PX01
¥474.81
货期: 4 周

Red, momentary extended push button, 1 NC contact
Quick Ship

OMPBD7P-MT44PX01
¥927.22
货期: 4 周

Red 40mm "Twist-to-Release" maintained push button, 1 NC contact
Quick Ship

OMPBD7P-MT64PX01
¥1,023.13
货期: 4 周

Red 60mm "Twist-to-Release" maintained push button, 1 NC contact
Quick Ship

OMPBD7P-MP44PX01
¥927.22
货期: 4 周

Red 40mm "Push-Pull" maintained push button, 1 NC contact
所有金额以RMB显示
订购示例: (1) SCE - 6N604LP Type 1 Single - Door Enclosure, ¥943.21
