NEMA Type 12 Large Continuous Hinge Enclosures Discontinued

SCE Series ALP/BLP

NEMA Type 12 Large Continuous Hinge Enclosures

查看下面所有型号

下单

0.075" Carbon Steel
Seams Continuously Welded and Ground Smooth, No Holes or Knockouts
Continuous Hinge
Rivnut/Screw Fastened Cover
Oil Resistant Gasket
Studs for Mounting Optional Panels
Ground Stud on Door
Removable Print Pocket Furnished if Height and Width of Enclosure is 24" or More

产品描述

This enclosure series has been discontinued. Please see the SCE-LP as a possible alternative or contact our Automation Engineering department.

Application
Designed for use as electrical junction boxes, terminal wiring boxes, instrument housings, and electrical control enclosures. Provides protection from dust, oil and water.

Finish
ANSI-61 gray powder coating inside and out over phosphatized surfaces. Optional panels are powder coated white.

Industry Standards
NEMA Type 12 & Type 13
UL Listed Type 12
CSA Type 12
IEC 60529 IP 55

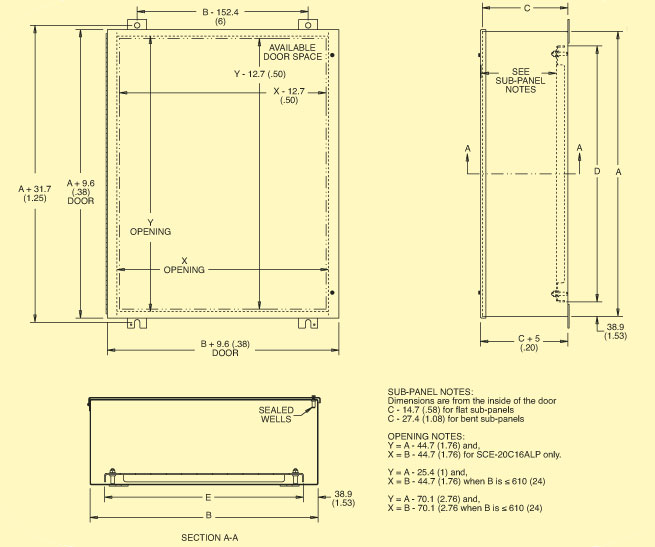

SCE_LgContHinge Series Dimensional Diagram

SCE_LgContHinge Series Dimensional Diagram

订购所有价格均为人民币税前价格，不包括13%增值税和运费！(指定型号)

其他客户同时购买: 这个图标可以点击扩大，跳出的清单包括了其他客户在购买此产品时同时购买的其它产品。

产品编号产品描述

数量

产品描述

ENCLOSURES

SCE-20C16ALP

咨询

货期:

Enclosures, Height=20.00 Width=16.00 Depth=7.00

SCE-20C16BLP

咨询

货期:

Enclosures, Height=20.00 Width=16.00 Depth=9.00

SCE-20C20ALP

咨询

货期:

Enclosures, Height=20.00 Width=20.00 Depth=7.00

SCE-20C20BLP

咨询

货期:

Enclosures, Height=20.00 Width=20.00 Depth=9.00

SCE-24C20ALP

咨询

货期:

Enclosures, Height=24.00 Width=20.00 Depth=7.00

SCE-24C20BLP

咨询

货期:

Enclosures, Height=24.00 Width=20.00 Depth=9.00

SCE-24C24ALP

咨询

货期:

Enclosures, Height=24.00 Width=24.00 Depth=7.00

SCE-24C24BLP

咨询

货期:

Enclosures, Height=24.00 Width=24.00 Depth=9.00

SCE-24C24CLP

咨询

货期:

Enclosures, Height=24.00 Width=24.00 Depth=11.00

SCE-30C20ALP

咨询

货期:

Enclosures, Height=30.00 Width=20.00 Depth=7.00

SCE-30C20BLP

咨询

货期:

Enclosures, Height=30.00 Width=20.00 Depth=9.00

SCE-30C24ALP

咨询

货期:

Enclosures, Height=24.00 Width=20.00 Depth=7.00

SCE-30C24BLP

咨询

货期:

Enclosures, Height=30.00 Width=24.00 Depth=9.00

SCE-30C24DLP

咨询

货期:

Enclosures, Height=36.00 Width=24.00 Depth=13.00

SCE-36C24ALP

咨询

货期:

Enclosures, Height=36.00 Width=24.00 Depth=7.00

SCE-36C24BLP

咨询

货期:

Enclosures, Height=36.00 Width=24.00 Depth=9.00

SCE-36C24CLP

咨询

货期:

Enclosures, Height=36.00 Width=24.00 Depth=11.00

SCE-36C30BLP

咨询

货期:

Enclosures, Height=36.00 Width=30.00 Depth=9.00

SCE-36C30DLP

咨询

货期:

Enclosures, Height=36.00 Width=30.00 Depth=13.00

SCE-48C36CLP

咨询

货期:

Enclosures, Height=48.00 Width=36.00 Depth=11.00

SUB-PANEL

SCE-20P16

¥759.39

货期: 6 周

Sub-Panel, Height=17.00 Width=13.00

SCE-20P20

¥998.96

货期: 2 周

Sub-Panel, Height=17.00 Width=17.0

SCE-24P20

¥1,206.26

货期: 6 周

Sub-Panel, Height=21.00 Width=17.00

SCE-24P24

¥1,322.53

货期: 6 周

Sub-Panel, Height=21.00 Width=21.00

SCE-30P20

¥1,533.26

货期: 6 周

Sub-Panel, Height=27.00 Width=17.00

SCE-30P24

¥1,533.26

货期: 4 周

Sub-Panel, Height=27.00 Width=21.00

SCE-36P24

¥1,932.92

货期: 6 周

Sub-Panel, Height=33.00 Width=21.00

SCE-36P30

¥2,586.89

货期: 6 周

Sub-Panel, Height=33.00 Width=27.00

SCE-48P36

¥3,684.16

货期: 4 周

Sub-Panel, Height=45.00 Width=33.00

ACCESSORIES

Swing Out Panel Kits for NEMA Type 12 Enclosures - allows installation of sub-panels in front of enclosure with swing out access. more info

SCE-NADFK

¥1,159.03

货期: 4 周

Swing Out Panel Kits for enclosure sub-panels 30' or less.

SCE-NADFK-3

¥1,511.45

货期: 4 周

Swing Out Panel Kits for enclosure sub-panels larger than 30'.

† 所有金额以RMB显示
