NEMA 4型外壳，用于法兰安装式电自动断开接头

SCE-HS Series Electrical Disconnect Enclosure

NEMA Type 4 Single-Door Enclosures for Flange-Mounted Electrical Disconnects | SCE-HS Series Electrical Disconnect Enclosure

¥8,703.92 SCE-24HS2108LP

下单
  • 0.075" Carbon Steel
  • Seams Continuously Welded and Ground Smooth
  • Continuous Hinge With Stainless Steel Hinge Pin
  • Stainless Steel Clamps On 3 Sides of Door
  • Flange Trough Collar Around All Sides of Door Opening
  • Interior Print Pocket
  • Collar Studs Provided for Mounting Optional Panels
  • Oil-Resistant Gasket
  • Disconnect Cutout Provided on Flange
  • Ground Stud On Door
  • No Door Stiffener Required
  • Disconnect Switch (or Circuit Breaker) and Operating Mechanism Are Not Furnished with This Enclosure
NEMA标准外壳 - 查看相关产品

产品描述

Application
SCE-HS SERIES DISCONNECT ENCLOSURE TYPE E
Designed to house most standard type disconnects. For outdoor application a drip shield is recommended.

Finish
ANSI-61 gray powder coating inside and out over phosphatized surfaces. Optional panels are powder coated white.

Industry Standards
NEMA Type 4, 12 & 13
UL Listed Type 4 & 12
CSA Type 4 & 12
IEC 60529 IP 66

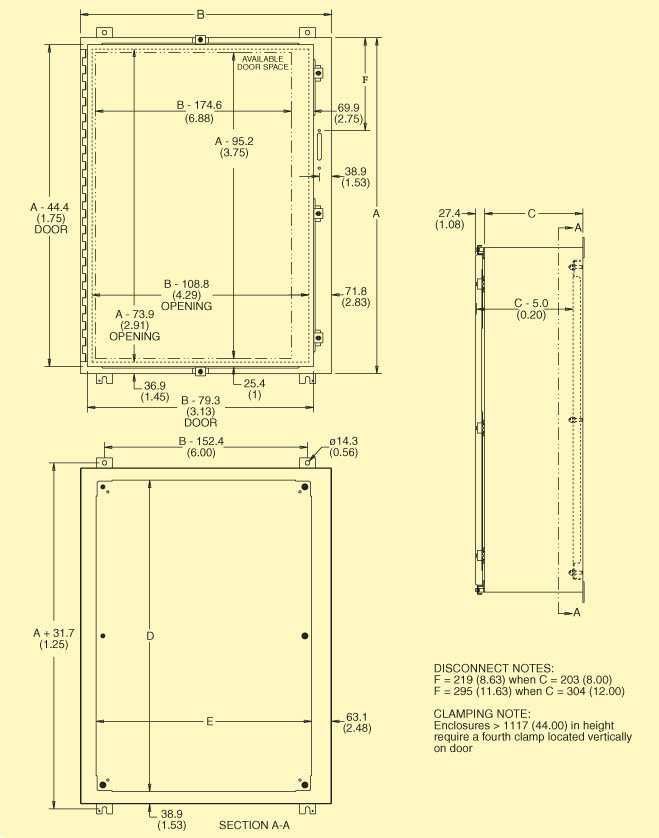

SCE_HS Series Diagram
订购 所有价格均为人民币税前价格，不包括13%增值税和运费！(指定型号)
网上下单立享5%折扣!

其他客户同时购买: 这个图标可以点击扩大，跳出的清单包括了其他客户在购买此产品时同时购买的其它产品。

产品编号产品描述
数量
产品描述
Electrical Disconnect Enclosures - sub-panels and disconnects sold separately
Quick Ship

SCE-24HS2108LP
¥8,703.92
货期: 4 周

24"H x 21.38"W x 8"D
Quick Ship

SCE-24P20
¥949.94
货期: 4 周

Sub-panel for 24x21

Quick Ship

SCE-24HS2508LP
¥9,442.13
货期: 4 周

24"H x 25.38"W x 8"D
Quick Ship
Click to expand/minimize a list of what others bought with theSCE-24P24
SCE-24P24
¥1,041.50
货期: 4 周

Sub-panel for 24x25

Enclosures below must ship by Truck Freight

Quick Ship

SCE-30HS2508LP
¥10,472.18
货期: 4 周

304"H x 25.38"W x 8"D
Quick Ship

SCE-30P24
¥1,207.45
货期: 4 周

Sub-panel for 30x25

Quick Ship

SCE-36HS2508LP
¥11,090.21
货期: 4 周

36"H x 25.38"W x 8"D
Quick Ship

SCE-36P24
¥1,522.19
货期: 4 周

Sub-panel for 36x25

Quick Ship

SCE-36HS3108LP
¥12,875.63
货期: 4 周

36"H x 31.38"W x 8"D
Quick Ship

SCE-36HS3112LP
¥14,283.36
货期: 4 周

36"H x 31.38"W x 12"D
Quick Ship

SCE-36P30
¥2,037.21
货期: 4 周

Sub-panel for 36x31

Quick Ship

SCE-42HS3112LP
¥15,685.37
货期: 4 周

42"H x 31.38"W x 12"D
Quick Ship

SCE-42P30
¥2,409.17
货期: 4 周

Sub-panel for 42x31

Quick Ship

SCE-42HS3712LP
¥17,522.30
货期: 4 周

42"H x 37.38"W x 12"D
Quick Ship

SCE-42P36
¥2,752.52
货期: 6 周

Sub-panel for 42x37

Quick Ship

SCE-48HS3712LP
¥19,004.42
货期: 4 周

48"H x 37.38"W x 12"D
Quick Ship

SCE-48P36
¥2,901.31
货期: 4 周

Sub-panel for 48x37

Quick Ship

SCE-60HS3712LP
¥22,060.24
货期: 4 周

60"H x 37.38"W x 12"D
Quick Ship

SCE-60P36
¥4,165.98
货期: 4 周

Sub-panel for 60x37

Drip Shield Kit - includes SS screws and sealing washers
Quick Ship

SCE-DS20N4
¥862.39
货期: 4 周

for 21" wide electrical enclosures
Quick Ship

SCE-DS24N4
¥956.80
货期: 4 周

for 25" wide electrical enclosures
Quick Ship

SCE-DS30N4
¥978.55
货期: 4 周

for 31" wide electrical enclosures
Quick Ship

SCE-DS36N4
¥989.99
货期: 4 周

for 37" wide electrical enclosures
† 所有金额以RMB显示
 订购示例: (1) SCE - 24HS2108LP  Enclosure, Height=24 inches, W=21.38 inches, Depth=8 inches, ¥8,703.92
