High Temperature Pressure Transducers |
| PX1004/PX1009 |
|
 |
|
|
High Temperature Pressure Transducers | Omega Engineering
 |

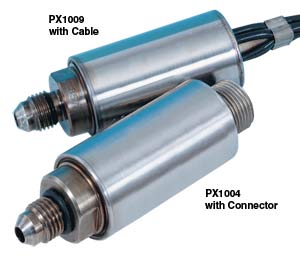

| Click for larger image. |
|
|
¥
24,565.00
PX1004L1-1KAV
|
| • |
High Operating Temperature pressure transducers
PX1004: 232°C (450°F)
PX1009: 343°C (650°F)
|
| • |
High Performance ±0.25% BSL Full Scale
|
| • |
Low Thermal Drift 1%/100 °F
|
| • |
Proven High Reliability at High Temperature
|
| • |
Exceptional Stability
|
| • |
5 Point Calibration Included
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
OMEGA’s PX1004 and PX1009 Sputtered Thin Film Pressure Transducers are designed for high temperature applications. These transducers can operate in temperature ranges from -65°F to +450°F or +650°F. Yet, even in these difficult high temperatures, they provide outstanding accuracy, long-term calibration stability and reliability. Static accuracy is ±0.25%, and thermal zero and sensitivity shifts over their compensated range are less than ±0.01%/°F. OMEGA’s thin film technology makes this premium performance possible. The strain gages are sputter-deposited, forming a molecular bond with the substrate. There is virtually no shift, drift, or creep to cause the transducer’s calibration to change. The all-welded stainless steel pressure cavity and double-isolated case ensures pressure integrity and reliability in these tough environments. These high-temperature transducers are available in many standard ranges from 15 psi to 10,000 psi (specify gage or absolute pressure). A NIST traceable calibration record is available for these units.
For special options consult Sales or Pressure Engineering.
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
Note: Ultra-High Temperature PX1009 Transducers are built to order. Check with sales for availability.
|
|
|
|
|
|
† Price are shown in RMB.
Note: (1) Metric Ranges Available - Consult Engineering. (2) Mating connector for PX1004 sold separately. Model number PCS06E10-6S, $135.00 each.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) PX1004L1-100AV 0-100 PSIA transducer, with a male pressure connection per MS33656-4 and a PC1H0-10-6P electrical connector, ¥24,565.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Series
|
| |
Select
1004L1 for -65 to 450 degrees F
1009L0 for -65 to 650 degrees F
|
(2)
|
Range (psi)
|
| |
Select
015 for 0-15
025 for 0-25
050 for 0-50
100 for 0-100
250 for 0-250
500 for 0-500
1K for 0-1000
1.5K for 0-1500
2.5K for 0-2500
3K for 0-3000
5K for 0-5000
10K for 0-10000
|
(3)
|
Units
|
| |
Select
S for Sealed Gage Pressure
A for Absolute Pressure
|
(4)
|
Options
|
| |
Select
for No Options
-CAL5 for 5 point NIST traceable calibration
-CAL11 for 11 point NIST traceable calibration
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | |
|
|
|
|
|
|
| |
|
