Home >> Pressure Strain and... >> Load Cells, Force Se... >> Subminiature and Min... >> LC302

Miniature Compression Load Cell | 0.75" Diameter | 25 to 1,000 lb
LC302

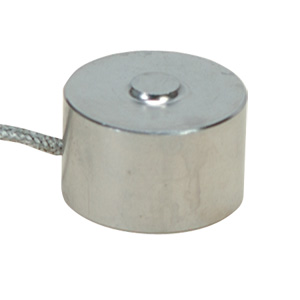

LC302:Miniature Compression Load Cell | 0.75
Click for larger image.

¥ 4,135.00  LC302-25
• Small 0.75" (19 mm) Dia.
• Low 0.5" (13 mm) Profile
• Robotic and Test Bench Applications
• Built in Load Button for Easy Installation
• 5-Point Calibration with 59 kOhm Shunt Cal Data

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

The LC302 Series is only 3/4" (19mm) in diameter and fits in the smallest places. Its high 0.5% accuracy and small package solve many industrial force measurement applications. All stainless steel construction and high quality strain gage assures long term reliability in industrial environments.

The LC302 is also available in metric configurations, with ranges from 0-100 to 0-5,000 N. Please see the LCM302 for complete details, or contact our Pressure department for more information.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 LC302-25 2 Weeks   ¥4,135.00    Compression Load Cell 0-25 lb.
 LC302-50 17 Weeks   ¥3,915.00    Compression Load Cell 0-50 lb.
 LC302-100 2 Weeks   ¥3,915.00    Compression Load Cell 0-100 lb.
 LC302-250 2 Weeks   ¥3,915.00    Compression Load Cell 0-250 lb.
 LC302-500 17 Weeks   ¥4,135.00    Compression Load Cell 0-500 lb.
 LC302-1K In Stock   ¥4,135.00    Compression Load Cell 0-1000 lb.
† Price are shown in RMB.

 Note: All LC302 Series load cells include a 5 point NIST traceable calibration certificate.
  Ordering Example: (1) LC302-25 25 lb capacity load cell,, ¥4,135.00
