Thermocouple Wire Type J, Duplex Insulated
J Type Thermocouple Wire

J Type Thermocouple Wire:Thermocouple Wire Type J, Duplex Insulated
Click for larger image.

¥ 750.00  TT-J-20-50
• High Quality Type "J" Thermocouple Grade Wire
• In Stock - Available for Immediate Shipment
• Choice of Insulation, Wire Gage, & Length

View related products - Wire: Thermocouple, RTD, Thermistor and Hook-Up

Click to scroll below to order See Specs PDF View a printer friendly page

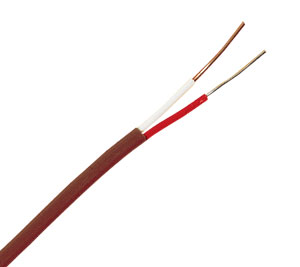

ANSI Color Code J type thermocouple wire: Positive Wire: White, Negative Wire: Red, Overall: Brown

The "To Order" box contains some examples of popular models. Use the "Part Number Builder" (Below Table) to get pricing for all available models. Use the table below as a guide for types available

 Insulation AWG
No. 		Model
Number 		Type
Wire 		Insulation Max. Temp Nominal
Size 		Wt.†
 lb/1000'
Conductor Overall °F °C
Ceramic* 14 XC-J-14 Solid Nextel Ceramic Nextel Ceramic 1100 590 .140 x .200 38
20 XC-J-20 Solid Nextel Ceramic Nextel Ceramic 900 480 .135 x .190 16
20 XT-J-20 Solid Nextel Ceramic Nextel Ceramic 900 480 .105 x .155 15
20 XL-J-20 Solid Nextel Ceramic Nextel Ceramic 900 480 .095 x .135 14
24 XC-J-24 Solid Nextel Ceramic Nextel Ceramic 700 370 .115 x .175 12
24 XT-J-24 Solid Nextel Ceramic Nextel Ceramic 700 370 .088 x .132 11
24 XL-J-24 Solid Nextel Ceramic Nextel Ceramic 700 370 .078 x .116 10

Silica* 		14 XS-J-14 Solid Silica Silica 1100 590 .140 x .200 35
20 XS-J-20 Solid Silica Silica 900 480 .105 x .155 12
24 XS-J-24 Solid Silica Silica 700 370 .088 x .132 10
High
Temp.
Glass** 		20 HH-J-20 Solid High Temp. Glass High Temp. Glass 900 480 .060 x .105 9
24 HH-J-24 Solid High Temp. Glass High Temp. Glass 700 370 .055 x .090 5
Glass 14 GG-J-14 Solid Glass Braid Glass Braid 900 482 .100 x .160 43
20 GG-J-20 Solid Glass Braid Glass Braid 900 482 .060 x .095 9
20 GG-J-20S 7 x 28 Glass Braid Glass Braid 900 482 .060 x .100 9
24 GG-J-24 Solid Glass Braid Glass Braid 700 370 .050 x .080 5
24 GG-J-24S 7 x 32 Glass Braid Glass Braid 700 370 .050 x .085 5
28 GG-J-28 Solid Glass Wrap Glass Braid 700 370 .045 x .070 3
30 GG-J-30 Solid Glass Wrap Glass Braid 600 320 .045 x .070 3
36 GG-J-36 Solid Glass Wrap Glass Braid 600 320 .045 x .070 2
Glass with Stainless
Steel Overbraid 		20 GG-J-20-SB Solid Glass SS Braid over Glass 900 482 .090 x .120 14
20S GG-J-20S-SB 7 x 28 Glass SS Braid over Glass 900 482 .090 x .127 15
24 GG-J-24-SB Solid Glass SS Braid over Glass 900 482 .085 x .117 11
24S GG-J-24S-SB 7 x 32 Glass SS Braid over Glass 900 482 .080 x .110 11
Kapton Fused
Polymide Tape 		20 KK-J-20 Solid Fused Polymide Tape Fused Polymide Tape 500 260 .060 x .100 11
20S KK-J-20S 7 x 28 Fused Polymide Tape Fused Polymide Tape 500 260 .060 x .105 11
24 KK-J-24 Solid Fused Polymide Tape Fused Polymide Tape 500 260 .050 x .075 6
24S KK-J-24S 7 x 32 Fused Polymide Tape Fused Polymide Tape 500 260 .050 x .085 6
30 KK-J-30 Solid Fused Polymide Tape Fused Polymide Tape 500 260 .040 x .055 5
PFA
and
Glass  		30 TG-J-30 Solid PFA Glass Braid 500 260 .034 x .047 2
36 TG-J-36 Solid PFA Glass Braid 500 260 .028 x .038 2
40 TG-J-40 Solid PFA Glass Braid 500 260 .026 x .035 2

Neoflon
PFA
(HighPerformance)  		20 TT-J-20 Solid PFA PFA 500 260 .068 x .116 11
20 TT-J-20S 7 x 28 PFA PFA 500 260 .073 x .126 11
22 TT-J-22S 7 x 30 PFA PFA 500 260 .065 x .133 9
24 TT-J-24 Solid PFA PFA 500 260 .056 x .092 6
24 TT-J-24S 7 x 32 PFA PFA 500 260 .063 x .102 6
30 TT-J-30†† Solid PFA PFA 500 260 .024 x .040 2
36 TT-J-36†† Solid PFA PFA 500 260 .019 x .030 2
40 TT-J-40†† Solid PFA PFA 500 260 .017 x .026 2
PFA Polymer
w/Twisted
& Shielded Conductors 		20 TT-J-20-TWSH Solid PFA Polymer PFA Polymer and Shielding 500 260 .15 20
20S TT-J-20S-TWSH 7 x 28 PFA Polymer PFA Polymer and Shielding 500 260 .15 20
24 TT-J-24-TWSH Solid PFA Polymer PFA Polymer and Shielding 500 260 .11 9
24S TT-J-24S-TWSH 7 x 32 PFA Polymer PFA Polymer and Shielding 500 260 .12 9
Neoflon
FEP 		20 FF-J-20 Solid FEP FEP 392 200 .068 x .116 11
24 FF-J-24 Solid FEP FEP 392 200 .056 x .092 7
FEP Polymer
w/Twisted & Shielded Conductors 		20 FF-J-20-TWSH Solid FEP Polymer FEP Polymer and Shielding 392 200 .15 20
20S FF-J-20S-TWSH 7 x 28 FEP Polymer FEP Polymer and Shielding 392 200 .15 20
24 FF-J-24-TWSH Solid FEP Polymer FEP Polymer and Shielding 392 200 .11 9
24S FF-J-24S-TWSH 7 x 32 FEP Polymer FEP Polymer and Shielding 392 200 .12 9
TFE Tape Polymer 20 TFE-J-20 Solid TFE Tape Polymer Fused TFE Tape Polymer 500 260 .060 x .100 11
20S TFE-J-20S 7 x 28 TFE Tape Polymer Fused TFE Tape Polymer 500 260 .060 x .105 11
24 TFE-J-24 Solid TFE Tape Polymer Fused TFE Tape Polymer 500 260 .050 x .075 6
24S TFE-J-24S 7 x 32 TFE Tape Polymer Fused TFE Tape Polymer 500 260 .050 x .085 6
Polyvinyl  24 PR-J-24 Solid Polyvinyl (Rip Cord)*** 221 105 .050 x .086 5
24 PP-J-24S 7 x 32 Polyvinyl Polyvinyl 221 105 .080 x .130 5

*Has color tracers on jacket and conductors, XC= Max Insul Density, XT=Reduced Insul Density, XL=Minimum Insul Density-Looser Woven
**Has color tracers on jacket and positive leg only
***Two insulated leads bonded together, but with no overwrap.
†Weight of spool and wire rounded up to the next highest lb. (does not include packing material).
††Overall color clear
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PFA Insulated Type J Thermocouple Cable - Insulation Max Temp = 260°C (500°F)
 TT-J-24-100 2 Weeks   ¥1,160.00    PFA Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), 100 ft (30 meters)
 TT-J-24-500 2 Weeks   ¥3,290.00    PFA Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), 500 ft (150 meters)
 TT-J-24-1000 2 Weeks   ¥6,595.00    PFA Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), 1000 ft (300 meters)
 TT-J-30-100 2 Weeks   ¥1,475.00    PFA Insulated, Type J, ANSI, 30 AWG (0.25mm Ø conductor), 100 ft (30 meters)
 TT-J-30-500 2 Weeks   ¥3,790.00    PFA Insulated, Type J, ANSI, 30 AWG (0.25mm Ø conductor), 500 ft (150 meters)
 TT-J-30-1000 2 Weeks   ¥8,330.00    PFA Insulated, Type J, ANSI, 30 AWG (0.25mm Ø conductor), 1000 ft (300 meters)
 PFA Insulated Type J Thermocouple Cable - Insulation Max Temp = 260°C (500°F) - Special Limits of Error
 TT-J-24-SLE-100 In Stock   ¥1,290.00    PFA Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), SLE, 100 ft (30 meters)
 TT-J-24-SLE-500 2 Weeks   ¥3,630.00    PFA Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), SLE, 500 ft (150 meters)
 TT-J-24-SLE-1000 2 Weeks   ¥7,325.00    PFA Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), SLE, 1000 ft (300 meters)
 TT-J-30-SLE-100 2 Weeks   ¥1,475.00    PFA Insulated, Type J, ANSI, 30 AWG (0.25mm Ø conductor), SLE, 100 ft (30 meters)
 TT-J-30-SLE-500 2 Weeks   ¥4,150.00    PFA Insulated, Type J, ANSI, 30 AWG (0.25mm Ø conductor), SLE, 500 ft (150 meters)
 TT-J-30-SLE-1000 2 Weeks   ¥9,045.00    PFA Insulated, Type J, ANSI, 30 AWG (0.25mm Ø conductor), SLE, 1000 ft (300 meters)
 Glass Braid Insulated Type J Thermocouple Cable - Insulation Max Temp = 482°C (900°F)
 GG-J-24-100 5 Weeks   ¥805.00    Glass Braid Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), 100 ft (30 meters)
 GG-J-24-500 2 Weeks   ¥2,465.00    Glass Braid Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), 500 ft (150 meters)
 GG-J-24-1000 5 Weeks   ¥4,695.00    Glass Braid Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), 1000 ft (300 meters)
 GG-J-30-100 5 Weeks   ¥845.00    Glass Braid Insulated, Type J, ANSI, 30 AWG (0.25mm Ø conductor), 100 ft (30 meters)
 GG-J-30-500 2 Weeks   ¥2,415.00    Glass Braid Insulated, Type J, ANSI, 30 AWG (0.25mm Ø conductor), 500 ft (150 meters)
 GG-J-30-1000 5 Weeks   ¥4,930.00    Glass Braid Insulated, Type J, ANSI, 30 AWG (0.25mm Ø conductor), 1000 ft (300 meters)
 Glass Braid Insulated Type J Thermocouple Cable - Insulation Max Temp = 482°C (900°F) - Special Limits of Error
 GG-J-24-SLE-100 2 Weeks   ¥980.00    Glass Braid Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), SLE, 100 ft (30 meters)
 GG-J-24-SLE-500 2 Weeks   ¥2,820.00    Glass Braid Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), SLE, 500 ft (150 meters)
 GG-J-24-SLE-1000 2 Weeks   ¥5,315.00    Glass Braid Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), SLE, 1000 ft (300 meters)
 GG-J-30-SLE-100 2 Weeks   ¥1,030.00    Glass Braid Insulated, Type J, ANSI, 30 AWG (0.25mm Ø conductor), SLE, 100 ft (30 meters)
 GG-J-30-SLE-500 5 Weeks   ¥2,765.00    Glass Braid Insulated, Type J, ANSI, 30 AWG (0.25mm Ø conductor), SLE, 500 ft (150 meters)
 GG-J-30-SLE-1000 2 Weeks   ¥5,550.00    Glass Braid Insulated, Type J, ANSI, 30 AWG (0.25mm Ø conductor), SLE, 1000 ft (300 meters)
 High Temp Glass Braid Insulated Type J Thermocouple Cable - Insulation Max Temp = 704°C (1300°F)
 HH-J-24-100 5 Weeks   ¥1,065.00    High Temp Glass Braid Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), 100 ft (30 meters)
 HH-J-24-500 5 Weeks   ¥2,640.00    High Temp Glass Braid Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), 500 ft (150 meters)
 HH-J-24-1000 5 Weeks   ¥6,325.00    High Temp Glass Braid Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), 1000 ft (300 meters)
 High Temp Glass Braid Insulated Type J Thermocouple Cable - Insulation Max Temp = 704°C (1300°F) - Special Limits of Error
 HH-J-24-SLE-100 5 Weeks   ¥1,055.00    High Temp Glass Braid Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), SLE, 100 ft (30 meters)
 HH-J-24-SLE-500 5 Weeks   ¥3,565.00    High Temp Glass Braid Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), SLE, 500 ft (150 meters)
 HH-J-24-SLE-1000 5 Weeks   ¥6,075.00    High Temp Glass Braid Insulated, Type J, ANSI, 24 AWG (0.5mm Ø conductor), SLE, 1000 ft (300 meters)
† Price are shown in RMB.

 Ordering Example: (1) TT-J-20-500 PFA Insulated, Type ''T'', (Iron-Constantan), Thermocouple Wire, ¥4,230.00
   Part Number Builder
(1) (2) (3) (4) (5)
-
-
J
J
-
-
-
-
Qty:
Option Descriptions
(1) Insulation
  Select
HH for High Temp Glass (20 & 24 AWG Only)
GG for Glass
KK for Kapton Fused Polymide Tape (20 24 & 30 AWG Only)
TG for PFA and Glass (30 36 & 40 AWG Only)
TT for Neoflon PFA (High Performance)
FF for Neoflon FEP (20 & 24 AWG Only)
PP for Polyvinyl (24 Gauge Stranded Only)
PR for Polyvinyl Rip Cord (24 AWG Only)
XC for Ceramic (14 20 24 AWG Only)
XT for Ceramic (20 & 24 AWG Only)
XL for Ceramic (20 & 24 AWG Only)
XS for Silica (14 20 24 AWG Only)
TFE for TFE Tape Polymer (20 & 24 AWG Only)
(2) Gage
  Select
14 for 14 AWG
20 for 20 AWG
20S for 20 AWG (Stranded)
24 for 24 AWG
24S for 24 AWG (Stranded)
28 for 28 AWG
30 for 30 AWG
36 for 36 AWG
40 for 40 AWG
(3) Additional Option
  Select
Nothing(leave field blank) for None
-SB for SS Braid
-TWSH for Twisted and Shielded Conductors (Only available for TT or FF insulation 20 & 24 AWG Only)
(4) Special Limits of Error
  Select
Nothing(leave field blank) for Standard
-SLE for Special Limits of Error
(5) Spool Length
  Select
25 for 25 Feet
50 for 50 Feet
100 for 100 Feet
200 for 200 Feet
500 for 500 Feet
1000 for 1000 Feet
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
