Push to Lock Adjusting Knob with Tamper Resistant Accessory
•
Helps Protect Air Operated Equipment from Over Pressure by Retarding Excessive Pressure Build Up
The V72G series has been discontinued. Please contact our Flow Engineering department.

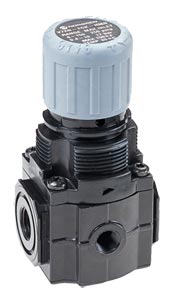

The V72G Series Air Pressure Relief Valves
are designed for use as a single in-line unit or as part of Norgren's
Excelon® modular compressed air preparation supply
system. A pressure relief valve is uses to protect pneumatic
equipment from over pressure by retarding excessive pressure build up.
As a modular component, this pressure relief valve can quickly
be attached to air filters, lubricators, smooth start / exhaust valves, safety
lockout valves and pipe adapters. With our Quickclamp® and
Quickclamp® and wall bracket accessories, a complete
compressed air supply system can be assembled and mounted
in minutes.
SPECIFICATIONS Fluid: Compressed air
Maximum Pressure: 20 bar (300 psig)
Operating Temperature*:
-34 to 65°C (-30 to 150°F)
MATERIALS V72: Gage Port:1⁄8" PTF with PTF main
ports; 1⁄8" ISO Rc with ISO G
main ports
Exhaust Port: ¼" PTF with PTF
main ports; ¼" ISO Rc with
ISO G main ports
V72G: Body: Zinc
Bonnet: Acetal
Elastomers: Neoprene
Bottom Plug: Acetal
V74G: Body and Bonnet: Aluminum
Valve: Aluminum and nitrile
Elastomers: Nitrile
Bottom Plug: Acetal
* Air supply must be dry enough to
avoid ice formation at temperatures below 2°C (35°F).
OPTIONS SELECTOR
STANDARD DIMENSIONS (in)
SERIES
A
B
C
F
G
H
PANEL DIA.
PANEL DEPTH
72
2.87
0.98
1.02
1.97
1.89
1.38
1.57
0 to 0.2
74
5.00
1.69
1.22
3.15
2.91
2.20
2.05
0.08 to 0.2
METRIC DIMENSIONS (mm)
72
28.3
26.4
26.4
27.4
27.3
26.8
27.0
0 to 5
74
30.4
27.1
26.6
28.6
28.3
27.6
27.5
2 to 5
† Price are shown in RMB.
Note: For Excelon® 73 combinations use V74G
