Wireless Thermocouple and RTD Industrial Probe Assemblies |
| UWTC-NB9-CASS-18U-12 |
|
 |
|
|
Wireless Thermocouple and RTD Industrial Probe Assemblies
 |

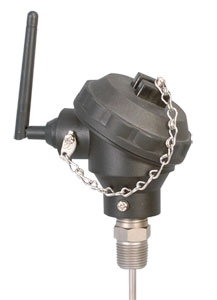

| Click for larger image. |
|
|
¥
4,125.00
UWTC-NB9-CASS-316U-12
|
|
| |
|
|
|
 |
Omega's new Wireless Industrial Thermocouple and RTD Probe Assemblies feature a complete, ready to install, pre-wired sensor and wireless transmitter package. Each battery powered wireless unit will transmit measurement back to a host receiver up to 120 m (400') away. Each unit comes pre-programmed to operate as a Type J, K, T, E, R,S, B, N or C thermocouple or RTD. When activated the unit will transmit readings continuously at pre-set time intervals that has been programmed by the user during the initial setup and installation. Each unit measures and transmits: process temperature, ambient temperature, wireless link signal strength and battery condition to the host and is displayed on the PC screen in real time using the provided free software.
SPECIFICATIONS
Thermocouple (TC) Models
Available Types: J, K, T, E, R, S, B, C or N
Thermocouple Measurement Range:
J: -100 to 760°C (-148 to 1400°F)
K: -100 to 1260°C (-148 to 2300°F)
T: -200 to 400°C (-328 to 752°F)
E: -200 to 1000°C (-328 to 1832°F)
R: 260 to 1760°C (500 to 3200°F)
S: 260 to 1760°C (500 to 3200°F)
B: 870 to 1820°C (1598 to 3308°F)
C: 0 to 2315°C (32 to 4200°F)
N: -100 to 1260°C (-148 to 2300°F)
TC Measurement Accuracy:
Type J, K: ±0.5% of reading or ±1.0°C (1.8°F), whichever is greater
Type T, E, N: ±0.5% of reading or ±2.0°C (3.6°F), whichever is greater
Type R, S, B, C: ±0.5% of full scale
TC Measurement Resolution:
1°C/1°F: Type J, K, T, E, N,
0.5°C: Type R, S, B, C
Cold Junction Compensation (Automatic): -10 to 70°C (14 to 158°F)
Resistive Temperature Device (RTD) models
Available Types: 100 Ω (standard), 500 Ω , 1000 Ω (special order)
Battery Life (Typical): 3 years (1 sample/minute reading rate @ 25°C (77°F))
Note: Because of transmission frequency regulations, these products may only be used in the United States and Canada.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with one 3.6 V lithium battery, programming software, measurement and logging software, mounting bracket, type K beaded wire thermocouple, and user manual.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Model Type
|
| |
Select
TC for Thermocouple
RTD for RTD
|
(2)
|
Input Type and Sheath Material
|
| |
Select
ICIN for Thermocouple Type J Inconel
ICSS for Thermocouple Type J 304 SS
CAIN for Thermocouple Type K Inconel
CASS for Thermocouple Type K 304 SS
CXIN for Thermocouple Type E Inconel
CXSS for Thermocouple Type E 304 SS
CPIN for Thermocouple Type T Inconel
CPSS for Thermocouple Type T 304 SS
NNIN for Thermocouple Type N Inconel
1PT304 for RTD Pt100 0.00385 Ohm 304 SS
1PT316 for RTD Pt100 0.00385 Ohm 316 SS
2PT304 for RTD Pt100 0.00392 Ohm 304 SS
2PT316 for RTD Pt100 0.00392 Ohm 316 SS
|
(3)
|
Sheath Diameter
|
| |
Select
116 for 1/16 Inch
18 for 1/8 Inch
316 for 3/16 Inch
14 for 1/4 Inch
|
(4)
|
Junction Type
|
| |
Select
Nothing(leave field blank) for RTD Model
U for Ungrounded (Thermocouple Model)
|
(5)
|
Probe Length
|
| |
Select
6 for 6 Inch
12 for 12 Inch
18 for 18 Inch
24 for 24 Inch
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | |
|
|
|
|
|
|
| |
|
