Universal Thermocouple Connector Direct USB to PC Connection |
| UTC-USB |
|
 |
|
|
|
|
 |
| Type | Range, °C | Range, °F | Accuracy |
|---|
| J | -100 to 760°C | -148 to 1400°F | ±0.5% rdg or ±1°C (1.8°F)* |
| K | -100 to 1260°C | -148 to 2300°F | ±0.5% rdg or ±1°C (1.8°F)* |
| T | -200 to 400°C | -328 to 752°F | ±0.5% rdg or ±2°C (3.6°F)* |
| E | -200 to 1000°C | -328 to 1832°F | ±0.5% rdg or ±2°C (3.6°F)* |
| R | 260 to 1760°C | 500 to 3200°F | ±0.5% FS |
| S | 260 to 1760°C | 500 to 3200°F | ±0.5% FS |
| B | 870 to 1820°C | 1598 to 3308°F | ±0.5% FS |
| C | 0 to 2315°C | 32 to 4199°F | ±0.5% FS |
| N | -100 to 1260°C | -148 to 2300°F | ±0.5% rdg or ±2°C (3.6°F)* |

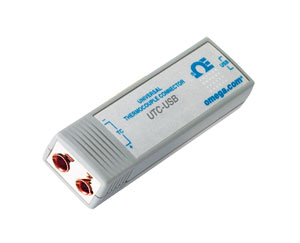

The UTC-USB universal
thermocouple connector accepts the
signal from any of 9 thermocouple
types, and lets you display actual
temperature readings on your PC,
through a standard USB port. The
UTC-USB provides automatic cold
junction compensation and
linearization; the free software
lets you select the thermocouple
type and units, and then use your
PC as a meter, chart recorder or
data logger.
The UTC-USB features Omega’s
patented universal input connection,
so you can quickly attach both
standard and miniature size
thermocouple connectors. A
standard USB cable is included for
fast hook-up to your PC.
SPECIFICATIONS
Thermocouple (TC) Input User Selectable: J, K, T, E, R, S, B, C or N
Measurement Accuracy:
Type J, K: ±0.5% of reading or ±1.0°C (1.8°F), whichever is greater
Type T, E, N: ±0.5% of reading or ±2.0°C (3.6°F), whichever is greater
Type R, S, B, C: ±0.5% of full scale
Measurement Resolution: 1°C (1°F) Cold Junction Compensation
(Automatic): -10 to 70°C (14 to 158°F)
Thermocouple Connection: Patented universal female accepts both standard or miniature male connector
USB Connection: Version 1.0, 1.1 and 2.0 compatible; mini-B connector; 1.8 m (6') cable included
Operating Environment: -10 to 70°C (14 to 158°F)
Computer Interface: USB (one interface cable included with receiver)
Software (Included Free): Compatible with Windows® 2000, XP, Vista (32 bit) or Win7 (64 bit) operating system
Dimensions: 76 L x 25.4 W x 13 mm H (3 x 1 x 0.5")
Enclosure: Plastic (glass filled nylon)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with USB cable, and a Type K beaded wire thermocouple.
Free TRH central software available for download from Omega.
|
|
|
|
|
| |
|
