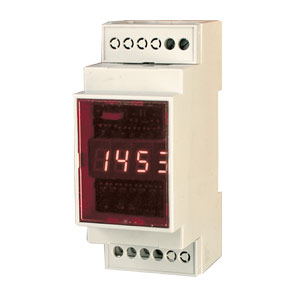

DIN Rail Universal Smart Transmitter |
| TXDIN101 |
|
 |
|
|
|
|
|
¥
4,220.00
TXDIN101
|
| • |
High Accuracy
|
| • |
Integral LED display
|
| • |
Universal Input: T/C, RTD and mV
|
| • |
Galvanic Isolation
|
| • |
Configuration and Calibrations are PC-based Software (It requires the USB cable p/n TX69-CABLE sold separately)
|
View related products - Temperature Transmitters
|
| |
|
|
|
 |
The TXDIN101 is a computerized,
PC programmable, galvanically
isolated two-wire smart transmitter.
The unit converts 13 types of
thermocouple sensors; 12 types
of RTD sensors, configured as
2-, 3- and 4-wires; potentiometer,
resistor and millivolt inputs, single
or differential—into process current
loop. Integral 3% digits LED
display forms a transmitter—monitor
unit which is visiable in dark
installations. The light intensity varies as a function of the current loop, which serves as the light energy source
24-bit A/D converter
and two microprocessors are
the heart of the outstanding
performance. The transmitter
can be set and wired to perform
differential measurement
conversions of temperature sensors
as well as mV sources. The output
current is temperature linearized
and can be set to be 4 to 20/20 to
4mA—or any range within these
limits. The current is limited to
3.9 and 22 mA.The TXDIN101
samples and updates the output
current in a rate of 2 to 4 samples
per second depends on the sensor
type. The transmitter is fully
configurable in dry-configuration
mode by which the connection to
PC is performed with no external
power source. The configuration
parameters are stored in a nonvolatile
memory. Exceptional digital
accuracy of typically ±0.1°C is
provided for most sensors
regardless of the calibrated span.
Internal Pt-100 temperature sensor
provides precise cold junction
compensation throughout the entire
ambient range. Detection of sensor
breakage or disconnection of input
leads, forces the output to a predefined
up/down scale value.
The unit continuously monitors the
sensor and automatically returns to
normal operation mode when the
sensor is recovered. The TXDIN101
is housed in a plastic enclosure
mounted on a standard DIN rail.
Special red filter is provided for
optimal view.
Housing Specifications
Material: Plastic polycarbonate
Screw Connection: 6 terminals
Mounting: Standard DIN rail
Operating Position: Any
Protection Level: IP20; UL-94-V0 flame retardant
Weight: 85 g (0.18 lb)
Programming
Software Package: CONCAL for COM and USB ports
Modem Cord CONUSB:
Length: 1.5m with USB connector for USB connection
Configured Parameters: Tag information, sensor type, Input range, selection of connection type, output offset, output curve correction, damping factor, burnout type, output current mode, sensor calibration
| Thermocouple and Millivolts |
|---|
| Type | Input Range °C | Input Range °F | Minimum Span °C (°F) | Digital Accuracy | D/A Accuracy |
|---|
| B | 100 to 1820 | 212 to 3308 | 200 (360) | ±0.5°C | ±0.02% |
|---|
| E | -200 to 1000 | -328 to 1832 | 50 (90) | ±0.1°C
|
|---|
| J | -200 to 1200 | -328 to 2192 | 50 (90) | ±0.1°C
|
|---|
| K | -200 to 1370 | -328 to 2498 | 50 (90) | ±0.1°C
|
|---|
| L | -190 to 890 | -310 to 1634 | 25 (45) | ±0.1°C
|
|---|
| N | -200 to 1300 | -328 to 2372 | 25 (45) | ±0.1°C
|
|---|
| R | 0 to 1760 | 32 to 3200 | 200 (360) | ±0.5°C
|
|---|
| S | 0 to 1760 | 32 to 3200 | 200 (360) | ±0.5°C
|
|---|
| T | -200 to 400 | -328 to 752 | 50 (90) | ±0.1°C
|
|---|
| U | -190 to 590 | -310 to 1094 | 25 (45) | ±0.1°C
|
|---|
| D | 0 to 2230 | 32 to 4046 | 25 (45) | ±0.5°C
|
|---|
| G | 0 to 2160 | 32 to 3920 | 25 (45) | ±0.5°C
|
|---|
| C | 15 to 2320 | 5 to 4208 | 25 (45) | +0.5°C
|
|---|
| Millivolt Input | -145 to 145 | | 2 mV | ±51 uV
|
|---|
| Mode | T/C: Single or differential sensor | Voltage: Single or differential ended |
|---|
| Cold Junction | Internal Pt-100 sensor | |
|---|
| C.J. Accuracy | ±0.5°C (±0.9°F) | |
|---|
| Sampling Rate | T/C: Single: 4, Differential: 2 (S/sec) | Voltage: 4, Differential: 2 (S/sec) |
|---|
Note: For maximum accuracy for T/C input, all the above error components should be accumulated. |
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with a complete operator’s manual.
Ordering Example: (1) TXDIN101 DIN Rail Universal Smart Transmitter, ¥4,220.00
|
|
|
|
|
| |
|
