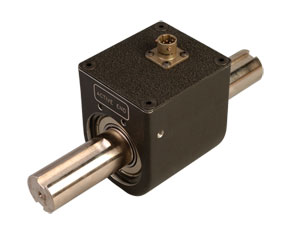

Rotating Torque Sensor, Shaft to Shaft Configuration

TQ513 Series

Click for larger image.

^¥ 26,605.00 TQ513-100

•	Silver Slip Rings for Secure Connections
•	Operating Speed Up to 5000 RPM
•	Optional Optical Encoder for Angle or Speed Measurement
View related products - Load Cells, Force Sensors and Torque Transducers

The TQ513 Series are designed to measure the rotating torque using shaft-to-shaft in-line placement. Heavy-duty silver slip rings provide secure transmission of power and signal from the rotating shaft to your instrumentation. An optional 1024 ppr optical encoder is available to measure angle or speed.

SPECIFICATIONS
Excitation Voltage: 20 Vdc maximum
Bridge Resistance: 1000 ohms
Output at Full Scale: 2.0 mV/V nominal
Linearity: 0.10% FS
Hysteresis: 0.10% FS
Zero Balance: 1.0% FS
Operating Temperature: -54 to 121°C (-65 to 250°F)
Compensated Temperature: 21 to 76°C (70 to 170°F)
Thermal Effects
    Zero: 0.0036% FS/°C
     Span: 0.0036% FS/°C
Overload Capacity: 150% FS
Material:
    <100 in-lb: SS shafts, aluminum sensor
    ≥100 in-lb: Steel shaft and sensor
Maximum Shaft Speed: 5000 RPM
Electrical Connection: 4-pin twist lock connector (mating connector supplier); 10-pin twist lock connector with optional optical encoder (mating connector supplied)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
TQ513-003	26 Weeks	¥26,605.00	50 in-oz, 3.125 in-lb, 0.35 N-M, 3/8' shaft, 1/32' flat key	qty.

TQ513-006	26 Weeks	¥26,605.00	100 in-oz, 6.25 in-lb, 0.71 N-M, 3/8' shaft, 1/32' flat key	qty.

TQ513-012	26 Weeks	¥26,605.00	200 in-oz, 12.5 in-lb, 1.41 N-M, 3/8' shaft, 1/32' flat key	qty.

TQ513-030	2 Weeks	¥26,605.00	500 in-oz, 31.25 in-lb, 3.53 N-M, 3/8' shaft, 1/32' flat key	qty.

TQ513-062	26 Weeks	¥26,605.00	1000 in-oz, 62.5 in-lb, 7.06 N-M, 3/8' shaft, 1/32' flat key	qty.

TQ513-100	26 Weeks	¥26,605.00	100 in-lb, 12 N-M, 0.749' shaft, 3/16' key	qty.

TQ513-200	26 Weeks	¥38,275.00	200 in-lb, 23 N-M, 0.749' shaft, 3/16' key	qty.

TQ513-500	26 Weeks	¥26,605.00	500 in-lb, 56 N-M, 0.999' shaft, 1/4' key	qty.

TQ513-1K	2 Weeks	¥26,605.00	1000 in-lb, 113 N-M, 0.999' shaft, 1/4' key	qty.

TQ513-2K	26 Weeks	¥26,605.00	2000 in-lb, 226 N-M, 0.999' shaft, 1/4' key	qty.


Options

TQ513-514-FOOTMOUNT		¥1,185.00	Field installable Foot Mounting Bracket	qty.

† Price are shown in RMB.

Note: Comes complete with operator's manual.
Ordering Example: (1) TQ513-012 12 in-lb range rotating torque sensor, ¥26,605.00

Part Number Builder

	(1)	(2)	(3)
T T Q Q 5 5 1 1 3 3
Qty:

Option Descriptions

(1)

Capacity

Select
-003 for 3.125in-lb
-006 for 6.25in-lb
-012 for 12.5in-lb
-030 for 31.25in-lb
-062 for 62.5in-lb
-100 for 100in-lb
-200 for 200in-lb
-500 for 500in-lb
-1K for 1000in-lb
-2K for 2000in-lb

(2)

Encoder Option

Select
Nothing(leave field blank) for No Option
-EN1024 for Integral 1024 ppr optical encoder add $545

(3)

Bracket Option

Select
Nothing(leave field blank) for None
-MB for Foot mounting bracket add $85

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
