Rugged In-Line Rotary Torque Sensors with Integral Slip Ring Assembly

TQ501 Rugged Rotary Torque Sensor

TQ501 Rugged Rotary Torque Sensor:Rugged In-Line Rotary Torque Sensors with Integral Slip Ring Assembly

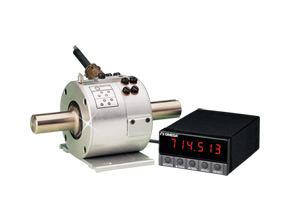

Click for larger image.

¥ 58,645.00  TQ501-100
• Ideal for Measuring Torque in Rotating Shafts
• Clockwise or Counterclockwise Operation
• Utilizes Proven Slip Ring Technology
• Both Ends Double-Keyed for Easy Installation
• Replaceable Slip Ring Brushes Available
• Mating Connector Included
• Optional RPM Sensor Available

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The TQ501 rotary torque sensor is ideal for measuring torque in rotating shafts. An integral slip ring assembly is used to transfer the electrical signal from rotating to stationary electronics. The slip ring consists of silver graphite brushes which rub on the rotating ring, providing an electrical path for the incoming excitation and the outgoing signal voltage. The speed sensor is a magnetic pulse that generates 60 pusles per revolution. The DPF701 is the recommended meter for use with the RPM option.

SPECIFICATIONS
Rated Output: 2 mV/V nominal
Excitation: 10 Vdc, 20 Vdc maximum
Accuracy: ±0.18% FS
Linearity: ±0.10% FS
Hysteresis: ±0.10% FS
Repeatability: ±0.10% FS
Zero Balance: ±1.0% FS
Operating Temp. Range: -65 to 250°F (-53 to 120°C)
Compensated Temp. Range: 32 to 170°F (0 to 77°C)
Thermal Effects: Zero ±0.002% FS/°F Span ±0.002% Rdg/°F
Max. Load: Safe 150 % FS. Ultimate 300 % FS
Bridge Resistance: 350 Ohms nominal
Brush Life: 1.4 x 10 7 /RPM
Full Scale Angular Deflection:1.2°
RPM: 6000 max.
Construction: Nickel-plated steel
Electrical: Mating connector supplied
Weight: 3.6 kg (8 lb)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 TQ501-100 26 Weeks   ¥58,645.00    In-line rotary torque sensor with keyed shaft and +/- 100 in-lb range
 TQ501-100-RPM 26 Weeks   ¥59,725.00    In-line rotary torque sensor with keyed shaft, +/- 100 in-lb range and optional RPM sensor
 TQ501-200 26 Weeks   ¥58,645.00    In-line rotary torque sensor with keyed shaft and +/- 200 in-lb range
 TQ501-200-RPM 26 Weeks   ¥59,725.00    In-line rotary torque sensor with keyed shaft, +/- 200 in-lb range and optional RPM sensor
 TQ501-500 26 Weeks   ¥58,645.00    In-line rotary torque sensor with keyed shaft and +/- 500 in-lb range
 TQ501-500-RPM 26 Weeks   ¥59,725.00    In-line rotary torque sensor with keyed shaft, +/- 500 in-lb range and optional RPM sensor
 TQ501-1K 26 Weeks   ¥58,645.00    In-line rotary torque sensor with keyed shaft and +/- 1,000 in-lb range
 TQ501-1K-RPM 26 Weeks   ¥59,725.00    In-line rotary torque sensor with keyed shaft, +/- 1,000 in-lb range and optional RPM sensor
 TQ501-2K 26 Weeks   ¥58,645.00    In-line rotary torque sensor with keyed shaft and +/- 2,000 in-lb range
 TQ501-2K-RPM 26 Weeks   ¥59,725.00    In-line rotary torque sensor with keyed shaft, +/- 2,000 in-lb range and optional RPM sensor
 TQ501-5K 26 Weeks   ¥58,645.00    In-line rotary torque sensor with keyed shaft and +/- 5,000 in-lb range
 TQ501-5K-RPM 26 Weeks   ¥59,725.00    In-line rotary torque sensor with keyed shaft, +/- 5,000 in-lb range and optional RPM sensor
 TQ501-10K 26 Weeks   ¥58,645.00    In-line rotary torque sensor with keyed shaft and +/- 10,000 in-lb range
 TQ501-10K-RPM 26 Weeks   ¥59,725.00    In-line rotary torque sensor with keyed shaft, +/- 10,000 in-lb range and optional RPM sensor
† Price are shown in RMB.

 Note: The optional RPM sensor is an inductive pick-up with 60 pulses per revolution output.
 Ordering Example: (1) TQ501-100-RPM is an in-line rotary torque sensor with keyed shaft, +/- 100 in-lb range and optional RPM sensor (includes mating connector), ¥59,725.00
