Reaction Torque cells, Flange to Shaft Mount, Low Torque Range |
| TQ202 |
|
 |
|
|
|
|
 |

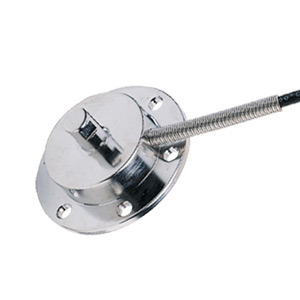

OMEGA’s TQ202 Series Torque Sensor is a small high accuracy flange or surface mount device designed for measuring reaction torque forces up to 250 in-lb. The shaft attachment has three equally spaced flat surfaces to assure non-slip mounting without the use of a key. The all stainless steel construction provides long life in industrial environments, and its heavy duty construction assures long term high accuracy measurements.
The TQ202 is also available in metric configurations, with ranges from 0-0.175 to 0-28 N-m.
Please see the TQM202 for complete details, or contact our Pressure department for more information.
SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms min.
Output Resistance: 350 ±5Ohms
Accuracy (Linearity, Hysteresis, and Repeatability Combined): ±0.2% FSO
Zero Balance: ±2% FSO
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Thermal Effects:
Zero: 0.005% FSO/°F
Span: 0.005% Rdg/°F
Safe Overload:150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 5 ft (1.5 m) 4-conductor shielded PVC cable with Strain Relief
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) TQ202-100 is a flange to shaft mount reaction torque sensor with +/- 100 in-lb range, ¥9,760.00
|
|
|
|
|
| |
|
