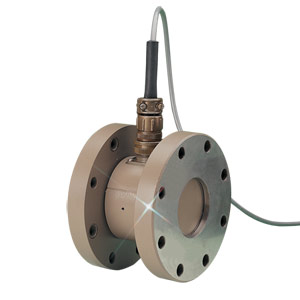

Flange Mounted Reaction Torque Sensors, 0 to 10 IN-LB to 0 to 100,000 IN-LB
TQ101

TQ101:Flange Mounted Reaction Torque Sensors, 0 to 10 IN-LB to 0 to 100,000 IN-LB
Click for larger image.

¥ 31,845.00  TQ101-100
• Ideal for Monitoring Torque in Motor Pump and Machine Mounts
• Flange Mounted for Easy Installation
• Measures Torque in Clockwise and Counterclockwise Directions

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

TQ101 Series reaction torque sensors are ideal for measuring reaction or restraining torques found in motor mounts, pump mounts, machine mounts, etc. They can also be used in limited rotation applications, such as measuring the torque required to turn a nut or an actuator shaft. The TQ101 is designed with flanges, enabling easy installation or adaptation; it is rugged enough for factory use, yet accurate enough for the laboratory.

SPECIFICATIONS
Rated Output: 2.0 mV/V nominal
Excitation: 10 Vdc, 20 Vdc maximum
Accuracy: ±0.18% FS
Linearity: ±0.10% FS
Hysteresis: ±0.10% FS
Repeatability: ±0.10% FS
Zero Balance: ±1.0% FS
Operating Temperature Range: -65 to 250°F (-53 to 120°C)
Compensated Temp. Range: 32 to 170°F (0 to 76°C)
Thermal Effects: Zero ±0.002% FS/°F Span ±0.002% Rdg/°F
Max. Load: Safe: 150% FS Ultimate: 300% FS
Bridge Resistance: 350 Ohms nominal
Full Scale Angular Deflection: 1.2°
Construction: Nickel plated steel Sensing Element: Aluminum (up to 500 in-lb), nickel plated steel (above 500 in-lb) Cover: Aluminum (100, 200 and 500 in-lb) and nickel-plated steel (all other ranges)
Electrical: Mating connector supplied
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 TQ101-10 26 Weeks   ¥31,845.00    Flange mount reaction torque sensor with +/- 10 in-lb range
 TQ101-20 26 Weeks   ¥31,845.00    Flange mount reaction torque sensor with +/- 20 in-lb range
 TQ101-50 26 Weeks   ¥31,845.00    Flange mount reaction torque sensor with +/- 50 in-lb range
 TQ101-100 26 Weeks   ¥31,845.00    Flange mount reaction torque sensor with +/- 100 in-lb range
 TQ101-200 26 Weeks   ¥31,845.00    Flange mount reaction torque sensor with +/- 200 in-lb range
 TQ101-500 26 Weeks   ¥31,845.00    Flange mount reaction torque sensor with +/- 500 in-lb range
 TQ101-1K 26 Weeks   ¥37,470.00    Flange mount reaction torque sensor with +/- 1,000 in-lb range
 TQ101-2K 26 Weeks   ¥37,470.00    Flange mount reaction torque sensor with +/- 2,000 in-lb range
 TQ101-5K 26 Weeks   ¥37,470.00    Flange mount reaction torque sensor with +/- 5,000 in-lb range
 TQ101-10K 26 Weeks   ¥37,470.00    Flange mount reaction torque sensor with +/- 10,000 in-lb range
 TQ101-15K 26 Weeks   ¥53,600.00    Flange mount reaction torque sensor with +/- 15,000 in-lb range
 TQ101-20K 26 Weeks   ¥53,600.00    Flange mount reaction torque sensor with +/- 20,000 in-lb range
 TQ101-50K 26 Weeks   ¥53,600.00    Flange mount reaction torque sensor with +/- 50,000 in-lb range
 TQ101-100K 26 Weeks   ¥79,070.00    Flange mount reaction torque sensor with +/- 100,000 in-lb range
† Price are shown in RMB.

 Ordering Example: (1) TQ101-100 is a flange mount reaction torque sensor with +/- 100 in-lb range, ¥31,845.00
