Rugged Screw Plug Immersion Heaters for Small Tanks |
| TM/TMO Series |
|
 |
|
|

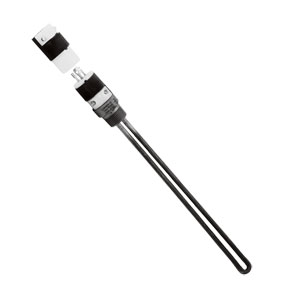

Rugged Screw Plug Immersion Heaters for Small Tanks
 |
| Click for larger image. |
|
|
|
|
|
|
 |
SPECIFICATIONS
Wattage: 350 to 1500 watts
Power: 120 or 240 Vac
Watt Density: 20 - 86 W/in2
Sheath Material: Type TM has a high watt density copper sheath, ideal for water heating applications. Type TMO has a lower watt density steel sheath for oil heating applications.
Screw Plug: Type TM has a 1"brass screw plug. Type TMO has 1" steel screw plug.
|
|
|
|
|
|
† Price are shown in RMB.
Note: CAUTION AND WARNING! Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warnings.
Ordering Example: (1) TM-1036G/120V A 350 Watt, 120 V heater, ¥3,225.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Sheath Screw Plug Material
|
| |
Select
TM- for Copper sheath element for water heating - Brass Screw Plug
TMO- for Steel sheath element for oil heating - Steel Screw Plug
|
|
(2)
|
Wattage
|
| |
Select
1036G for 350 Watts
1051G for 500 Watts
1076G for 750 Watts
1091G for 900 Watts
1101G for 1000 Watts
1415G for 1500 Watts
|
|
(3)
|
Voltage
|
| |
Select
/120V for 120 Vac
/240V for 240 Vac
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
| |
|
