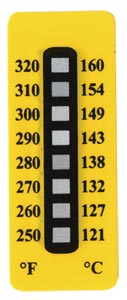

Non-Reversible Temperature Labels, 8 Temperature Ranges

TL-8

Click for larger image.

•	5 Models to Choose from (-105, -170, -250, -330, -410) with Different Temperature Ranges to Suit Your Application Needs
•	Available in Packs of 10 and 30
•	Indicator turns black when exposed
•	Indicates in Degrees F and Degrees C
•	Adhesive backs for easy mounting
•	Size: 18 mm W x 46 mm H (0.71" x 1.81")
View related products - Indicating Labels, Crayons, Cements and Lacquers

Applications:
• General • Aeronautical • Electrical • HVAC • Most surface measurements.

SPECIFICATIONS
Accuracy: Up to 99°C (210°F) is ±1°C (1.8°F);
From 100°C (212°F) to 154°C (309°F) is ±1.5°C (2.7°F);
From 160°C (320°F) to 280°C (536°F) is ±1% and ±1°C (1.8°F)

TL-8 Series Labels, 8-Temperature Range

Model No.	Temperature Range
TL-8-105	°F 105 110 115 120 130 140 150 160	°C 40 43 46 49 54 60 66 71
TL-8-170	°F 170 180 190 200 210 220 230 240	°C 77 82 88 93 99 104 110 116
TL-8-250	°F 250 260 270 280 290 300 310 320	°C 121 127 132 138 143 149 154 160
TL-8-330	°F 330 340 350 360 370 380 390 400	°C 166 171 177 182 188 193 199 204
TL-8-410	°F 410 420 435 450 465 480 490 500	°C 210 216 224 232 241 249 254 260

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
TL-8-105-10		Consult sales	Eight Temperature Range Label (105, 110, 115, 120, 130, 140, 150, 160°F), package of 10	qty.

TL-8-105-30		Consult sales	Eight Temperature Range Label (105, 110, 115, 120, 130, 140, 150, 160°F), package of 30	qty.

TL-8-170-10		Consult sales	Eight Temperature Range Label (170, 180, 190, 200, 210, 120, 230, 240°F), package of 10	qty.

TL-8-170-30		Consult sales	Eight Temperature Range Label (170, 180, 190, 200, 210, 120, 230, 240°F), package of 30	qty.

TL-8-250-30		Consult sales	Eight Temperature Range Label (250, 260, 270, 280, 290, 300, 310, 320°F), package of 30	qty.

TL-8-330-10		Consult sales	Eight Temperature Range Label (330, 340, 350, 360, 370, 380, 390, 400°F), package of 10	qty.

TL-8-330-30		Consult sales	Eight Temperature Range Label (330, 340, 350, 360, 370, 380, 390, 400°F), package of 30	qty.

TL-8-410-10		Consult sales	Eight Temperature Range Label (410, 420, 435, 450, 465, 480, 490, 500°F), package of 10	qty.

TL-8-410-30	101 Weeks	¥358.00	Eight Temperature Range Label (410, 420, 435, 450, 465, 480, 490, 500°F), package of 30	qty.

† Price are shown in RMB.

Note: Insert -10” for package of 10 or “-30” for package of 30.

Part Number Builder

	(1)	(2)
T T L L - - 8 8 - -

Qty:

Option Descriptions

(1)

Temperature Range

Select
105 for 105/110/115/120/130/140/150/160°F
170 for 170/180/190/200/210/220/230/240°F
250 for 250/260/270/280/290/300/310/320°F
330 for 330/340/350/360/370/380/390/400°F
410 for 410/420/4356/440/450/465/480/490/500°F

(2)

Package Quantity

Select
-10 for Package of 10
-30 for Package of 30

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
