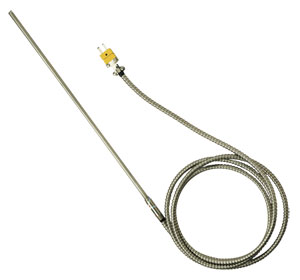

Armor Cable or Stainless Steel Overbraid Lead Heavy DutyTransition Joint Thermocouple Probes with Mini Male Connector

TJ36 and TJ48 Series with BX or SB

Click for larger image.

^¥ 970.00 TJ36-CASS-316U-36-BX-SMPW-M

•	Also Available in Super OMEGACLAD™ XL for Stable, Long-Term Operation at High Temperatures
•	Heavy Duty Probes
•	Leads Available with BX Armor or Stainless Steel Overbraid
•	12 Inch and 36 Inch Probe Lenghts Standard(Consult Sales for Other Lenghts)
•	Includes Subminiature Connector
View related products - Thermocouples

Heavy duty transition joint thermocouple, 900 mm (36") long, with 900 mm (36") BX type spiral armor cable. Available in 6, 4.5, 3, 1.5 mm (1/4, 3/16, 1/8 and 1/16") OD, with Inconel 600 or 304 stainless steel sheath (consult sales for 316 SS), and SMPW subminiature connector.

Super OMEGACLAD™ XL sheaths are available for Type K thermocouples with BX armor and standard size connector option (OSTW). Replace "SS" in part number with "XL". Contact Sales for pricing and availability.

View the Thermocouple Accuracy and Color Code charts

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

TJ36-CASS-116E-36-BX-SMPW-M	2 Weeks	¥910.00	heavy duty TJ probe, type K, 304 SS sheath, 1.5 mm (1/16") OD, exposed junction, with BX armor cable	qty.

TJ36-CXIN-316G-36-BX-SMPW-M	5 Weeks	¥975.00	heavy duty TJ probe, type E, Inconel 600 sheath, 4.5 mm (3/16") OD, grounded junction, with BX armor cable	qty.

TJ48-CASS-18U-12-SB-SMPW-M	5 Weeks	¥820.00	heavy duty TJ probe, type K, 304 SS sheath, 3.0 mm (1/8") OD, ungrounded junction, with SB stainless steel overbraided cable	qty.

TJ48-CPIN-14U-12-SB-SMPW-M	5 Weeks	¥980.00	heavy duty TJ probe, type T, Inconel 600 sheath, 6.0 mm (1/4") OD, ungrounded junction, with SB stainless steel overbraided cable	qty.

TJ36-CAXL-14U-12-BX-OSTW-M	2 Weeks	¥1,020.00	Heavy duty TJ probe, Type K, Super OMEGACLAD™ XL sheath, 6.0 mm (1/4") OD, with BX armor jacket and standard connector option (OSTW).	qty.

† Price are shown in RMB.

Note: Other lengths available, please consult sales.

Type K Calibration probes are also available in Super OMEGACLAD™ XL sheaths. Contact Sales for more information.
Ordering Example: (1) TJ48-CASS-116G-12-SB-SMPW-M heavy duty TJ probe, type K, 304 SS sheath, 1.5mm (1/16, ¥785.00

Part Number Builder

(1)		(2)	(3)		(4)	(5)		(6)		(7)
	- -			- -			- -		- -		- - S S M M P P W W - - M M
Qty:

Option Descriptions

(1)

Lead Wire Length

Select
TJ36 for 36 in. lead wire
TJ48 for 48 in. lead wire

(2)

Calibration Type

Select
IC for type J
CA for type K
CP for type T
CX for type E

(3)

Sheath Material

Select
IN for Inconel 600
SS for 304 SS
XL for Super OMEGACLAD™ XL (Only available with Thermocouple Type K)

(4)

Select
116 for 1/16 in.
18 for 1/8 in.
316 for 3/16 in.
14 for 1/4 in.

(5)

Junction

Select
U for ungrounded
G for grounded
E for exposed

(6)

Probe Length

Select
36 for 36 inch(only available with TJ36 probe)
12 for 12 inch(only available with TJ48 probe)

(7)

Cable

Select
BX for BX armor cable(only available with TJ36 probe)
SB for SB stainless steel overbraided cable(only available with TJ48 probe)

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
