Fine Gage, Single Strand, Insulated Thermocouple Wire
TFIR,TFCH,TFCI,TFCC,TFCP,TFCY and TFAL

Fine Gage, Single Strand, Insulated Thermocouple Wire
TFIR,TFCH,TFCI,TFCC,TFCP,TFCY and TFAL:Fine Gage, Single Strand, Insulated Thermocouple Wire

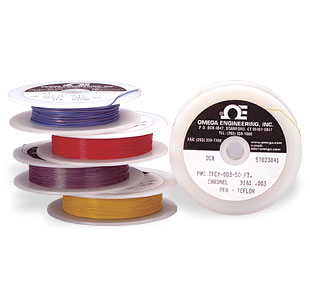

Click for larger image.

¥ 231.00  TFIR-003-50
• Single Strand
• Extruded PFA
• Color Coded
• Excellent in a Vacuum
• Non-Flammable
• Available in 50 ft. and 100 ft. Spools for Convenient Small Quantity Needs
• Order a "Matched Pair" Two 50 Ft. Spools: $ 32
• Wire Sizes Available
0.003" (0.07 mm)
0.005" (0.12 mm)
0.010" (0.25 mm)
0.015" (0.38 mm)
0.020" (0.51 mm)
0.032" (0.81 mm)

View related products - Wire: Thermocouple, RTD, Thermistor and Hook-Up

Click to scroll below to order See Specs PDF View a printer friendly page

OMEGA's fine gage single strand thermocouple wire is available in 50, 100, 500 and 1000 ft. spools. Each spool represents a single leg of the thermocouple. Wire diameters range from 0.07mm(0.003") up to 0.81mm(0.032"). The wire is covered by extruded PFA insulation. The insulation thickness is 3 mil for wire sizes equal to and less than 0.25 mm (0.010"). For wire sizes greater than 0.25 mm (0.010"), the insulation thickness is 8 mil.

PFA Insulated Single Strand
 Alloy/ANSI
Color
Code		Nominal
Wire Dia.
mm (")		Model No. Alloy/ANSI
Color Code		Wire Dia.
mm (")		Model No.
J Iron/
White		 0.08 (0.003) TFIR-003-(*) E CHR/
Purple		 0.08 (0.003) TFCH-003-(*)
0.13 (0.005) TFIR-005-(*) 0.13 (0.005) TFCH-005-(*)
0.25 (0.010) TFIR-010-(*) 0.25 (0.010) TFCH-010-(*)
0.38 (0.015) TFIR-015-(*) 0.38 (0.015) TFCH-015-(*)
0.51 (0.020) TFIR-020-(*) 0.51 (0.020) TFCH-020-(*)
0.81 (0.032) TFIR-032-(*) 0.81 (0.032) TFCH-032-(*)
Constantan†/
Red		 0.08 (0.003) TFCI-003-(*) Constantan†/
Red		 0.08 (0.003) TFCC-003-(*)
0.13 (0.005) TFCI-005-(*) 0.13 (0.005) TFCC-005-(*)
0.25 (0.010) TFCI-010-(*) 0.25 (0.010) TFCC-010-(*)
0.38 (0.015) TFCI-015-(*) 0.38 (0.015) TFCC-015-(*)
0.51 (0.020) TFCI-020-(*) 0.51 (0.020) TFCC-020-(*)
0.81 (0.032) TFCI-032-(*) 0.81 (0.032) TFCC-032-(*)
T Copper/
Blue		 0.08 (0.003) TFCP-003-(*) K CHR/
Yellow		 0.08 (0.003) TFCY-003-(*)
0.13 (0.005) TFCP-005-(*) 0.13 (0.005) TFCY-005-(*)
0.25 (0.010) TFCP-010-(*) 0.25 (0.010) TFCY-010-(*)
0.38 (0.015) TFCP-015-(*) 0.38 (0.015) TFCY-015-(*)
0.51 (0.020) TFCP-020-(*) 0.51 (0.020) TFCY-020-(*)
0.81 (0.032) TFCP-032-(*) 0.81 (0.032) TFCY-032-(*)
Constantan†/
Red		 0.08 (0.003) TFCC-003-(*) AL/
Red		 0.08 (0.003) TFAL-003-(*)
0.13 (0.005) TFCC-005-(*) 0.13 (0.005) TFAL-005-(*)
0.25 (0.010) TFCC-010-(*) 0.25 (0.010) TFAL-010-(*)
0.38 (0.015) TFCC-015-(*) 0.38 (0.015) TFAL-015-(*)
0.51 (0.020) TFCC-020-(*) 0.51 (0.020) TFAL-020-(*)
0.81 (0.032) TFCC-032-(*) 0.81 (0.032) TFAL-032-(*)
†Constantan is matched to either iron, copper or CHR. When ordering “matched pairs,” be sure to specify TFCI with TFIR, TFCC with TFCP, or TFCC with TFCH.
* Insert standard length 50', 100', 500', 1000'

 Examples of pricing for just a few models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Below are some examples of typical part numbers. To order a spefic part number not shown below please use the Part Number Builder beneath the To Order box.
 TFIR-010-100 4 Weeks   ¥425.00    0.010" Diameter, Iron, 100 ft. Spool, (for Type J)
 TFCI-010-100 2 Weeks   ¥425.00    0.010" Diameter, Constantan*, 100 ft. Spool, (for Type J)
 TFCH-020-100 4 Weeks   ¥420.00    0.020" Diameter, CHROMEGA ®, 100 ft. Spool, (for Type E)
 TFCC-020-100 4 Weeks   ¥425.00    0.020" Diameter, Constantan*, 100 ft. Spool, (for Type E)
 TFCY-005-100 4 Weeks   ¥420.00    0.005" Diameter, CHROMEGA ®, 100 ft. Spool, (for Type K)
 TFAL-005-100 4 Weeks   ¥425.00    0.005" Diameter, ALOMEGA ®, 100 ft. Spool, (for Type K)
 TFAL-010-50 6 Weeks   ¥235.00    0.010" Diameter, ALOMEGA ®, 50 ft. Spool, (for Type K)
 TFCP-003-50 4 Weeks   ¥235.00    0.003" Diameter, Copper, 50 ft. Spool, (for Type T)
 TFCC-003-50 4 Weeks   ¥235.00    0.003" Diameter, Constantan*, 50 ft. Spool, (for Type T)
† Price are shown in RMB.

 Note: *Constantan is matched to either iron, copper or CHROMEGA ® When ordering “matched pairs,” be sure to specify TFCI with TFIR, TFCC with TFCP, or TFCC with TFCH.
  Ordering Example: (1) TFAL-003-100 100-foot spool of red 0.003 ALOMEGA™ wire, ¥420.00,  plus (1) TFCY-003-100 100-foot spool of yellow 0.003, ¥420.00, ¥420.00 + 420.00 = $840.00
   Part Number Builder
(1) (2) (3)
T
T
F
F
-
-
-
-
Qty:
Option Descriptions
(1) Thermocouple Material
  Select
IR for Iron (J)
CI for Constantan* (J)
CH for CHROMEGA™ (E)
CC for Constantan* (E)
CP for Copper (T)
CC for Constantan* (T)
CY for CHROMEGA™ (K)
AL for ALOMEGA™ (K)

*Constantan is matched to either iron copper or CHROMEGA™. When ordering matched pairs be sure to specify TFCI /TFIR or TFCC /TFCP or TFCC / TFCH.

(2) Wire Diameter
  Select
003 for 0.003 Inch
005 for 0.005 Inch
010 for 0.010 Inch
015 for 0.015 Inch
020 for 0.020 Inch
032 for 0.032 Inch
(3) Spool Length
  Select
50 for 50 Feet
100 for 100 Feet
500 for 500 Feet
1000 for 1000 Feet
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
