OMEGA-FLO™ 2-Way Solenoid Valves
SV6000 Series
1 year warranty CE

OMEGA-FLO 2-Way Solenoid Valves

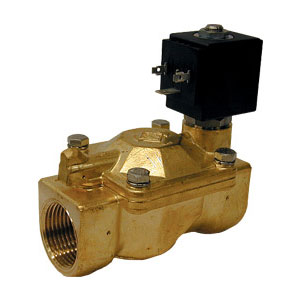

SV6000 Series:OMEGA-FLO™ 2-Way Solenoid Valves
Click for larger image.

• Normally Closed or Normally Open
• Ideal for Compressed Air, Inert Gas, Synthetic Oils and Water
• 120 Vac Standard (220 Vac and DC Coils are Optional)
• All Coils are CE

View related products - Valves

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

SV6000 Series 2-way solenoid valves are internally piloted valves featuring Brass, stainless steel construction and FKM seal material. The temperature range from -10 to 137°C (14 to 280°F) and FKM O-ring material is ideal for neutral media such as compressed air, inert gases, synthetic oils and water. Buna O-rings are good for compressed air, inert gases, and water. Buna O-rings have a more limited temperature range from -10 to 90°C (14 to 195°F).
A strain-relief connector is supplied with each unit. A ½" conduit plug is also available.

SPECIFICATIONS
Mounting Position: Any (preferably with solenoid system upright)
Operating Ambient:
FKM O-Ring: -10 to 137°C (14 to 280°F)
Buna O-ring: -10 to 90°C (14 to 195°F). Buna O-rings are not recommended for synthetic oils. Use FKM O-rings.
Max Ambient Temp.: Coil Dependent (See ratings on coils)
Voltage Tolerance: ±10%
Opening Time (msec): 200 to 500 approximately
Closing Time (msec): 100 to 4000 approximately
Cycling Rate: Approx. 10 to 50 cpm
Duty Cycle: Continuous (100%)

Materials of Construction
   Body: Brass
   Armature Tube: Stainless Steel 300
   Fixed Core: Stainless Steel 400
   Plunger: Stainless Steel 400
   Spring: Stainless Steel 300
   Shading Ring: Copper
   Orifice: Brass
Coil Molding Material:
   Black Polyester (Class F): SV8COIL-115AC, SV8COIL-24DC/60HZ, SV8COIL-220AC
   Black Polyamide (Class F): SV8COIL-12DC, SV8COIL-24DC, All 12 Watt coils
   Black Polyphenylensulphide (Class H): SV8COIL-115/60HZ
   Black Epoxy Resin (Class H): All 14 Watt coils
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Normally Closed Valves
 SV6001 7 Weeks   ¥1,530.00    1/4 NPT fittings, 7/16" orifice, Cv=1.5
 SV6002 5 Weeks   ¥1,595.00    3/8 NPT fittings, 7/16" orifice, Cv=1.7
 SV6003 5 Weeks   ¥1,550.00    1/2 NPT fittings, 7/16" orifice, Cv=1.7
 SV6004 7 Weeks   ¥2,800.00    3/4 NPT fittings, 3/4" orifice, Cv=9.8
 SV6005 2 Weeks   ¥3,005.00    1 NPT fittings, 1" orifice, Cv=14
 SV6006 7 Weeks   ¥5,680.00    1-1/4 NPT fittings, 1-3/8" orifice, Cv=28
 SV6007 5 Weeks   ¥6,350.00    1-1/2 NPT fittings, 1-1/2" orifice, Cv=36
 SV6008 5 Weeks   ¥8,235.00    2 NPT fittings, 2" orifice, Cv=53
 Normally Open Valves
 SV6004-NO 6 Weeks   ¥3,205.00    3/4 NPT fittings, 3/4" orifice, Cv=9.8
 SV6005-NO 6 Weeks   ¥3,455.00    1 NPT fittings, 1" orifice, Cv=14
 SV6006-NO 6 Weeks   ¥6,095.00    1-1/4 NPT fittings, 1-3/8" orifice, Cv=28
 SV6007-NO 6 Weeks   ¥6,535.00    1-1/2 NPT fittings, 1-1/2" orifice, Cv=36
 SV6008-NO 6 Weeks   ¥8,735.00    2 NPT fittings, 2" orifice, Cv=53
 Connectors
 SV-CGC 2 Weeks   ¥185.00    Cable grip connector
 SV-CC 2 Weeks   ¥185.00    1/2" conduit connector
 8 W Coils
 SV8COIL-115AC 2 Weeks   ¥560.00    Replacement 8W coil for 110 to 120 VAC/50 to 60 Hz 154°C (310°F) (Class F)
 SV8COIL-12DC 2 Weeks   ¥540.00    8W coil for 12 Vdc 154°C (310°F) (Class F)
 SV8COIL-24DC 2 Weeks   ¥570.00    8W coil for 24 Vdc 154°C (310°F) (Class F)
 SV8COIL-24AC/60HZ 2 Weeks   ¥540.00    8W coil for 24 Vac/60Hz 182°C (360°F) (Class H)
 SV8COIL-220AC 2 Weeks   ¥560.00    8W coil for 220 to 240 Vac/50 to 60 Hz 154°C (310°F) (Class F)
 SV8COIL-115/60HZ 2 Weeks   ¥770.00    8W coil for 115 Vac/60 Hz 182°C (360°F) (Class H)
 12 W Coils
 SV12COIL-120/60HZ 2 Weeks   ¥785.00    12W coil for 120 Vac/60 Hz 154°C (310°F) (Class F)
 SV12COIL-12DC 2 Weeks   ¥765.00    12W coil for 12 Vdc 154°C (310°F) (Class F)
 SV12COIL-12DC 2 Weeks   ¥765.00    12W coil for 12 Vdc 154°C (310°F) (Class F)
 SV12COIL-24DC 2 Weeks   ¥820.00    12W coil for 24 Vdc 154°C (310°F) (Class F)
 14 W Coils
 SV14COIL-24DC 2 Weeks   ¥1,075.00    14W coil for 24 Vdc 182°C (360°F) (Class H)
 SV14COIL-24/50-60HZ 2 Weeks   ¥1,135.00    14W coil for 24 Vac/50 to 60Hz 182°C (360°F) (Class H)
 SV14COIL-12DC 2 Weeks   ¥1,075.00    14W coil for 12 Vdc 182°C (360°F) (Class H)
 Repair Kits (Include Diaphragm, Spring, Plunger, and O-rings)
 VRK-6000 5 Weeks   ¥1,020.00    Repair kit for SV6001, SV6002, SV6003
 VRK-6000-NO 6 Weeks   ¥1,160.00    Repair kit for SV6002-NO, SV6003-NO
 VRK-6045 5 Weeks   ¥1,160.00    Repair kit for SV6004, SV6005
 VRK-6045-V 6 Weeks   ¥1,160.00    Repair kit for SV6004, SV6005 with FKM O-rings
 VRK-6045-NO 6 Weeks   ¥1,290.00    Repair kit for SV6004-NO, SV6005-NO
 VRK-6067 5 Weeks   ¥3,235.00    Repair kit for SV6006, SV6007
 VRK-6067-V 6 Weeks   ¥3,400.00    Repair kit for SV6006, SV6007 with FKM O-rings
 VRK-6067-NO 6 Weeks   ¥3,175.00    Repair kit for SV6006-NO, SV6007-NO
 VRK-6008 2 Weeks   ¥3,490.00    Repair kit for SV6008
 VRK-6008-V 6 Weeks   ¥3,650.00    Repair kit for SV6008 with FKM O-rings
 VRK-6008-NO 6 Weeks   ¥3,490.00    Repair kit for SV6008-NO
† Price are shown in RMB.

 Note: Comes complete with operator's manual, 8 W coil, and cable grip connector.

To replace the standard BUNA O-Rings with option FKM, add suffix "-V" to model number, add $50 to price.

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)


  Ordering Example: (1) SV6002 3/8, ¥1,595.00
