2-Way Solenoid Valves - For Hot Water and Steam
SV4000A Series
1 year warranty CE

2-Way Hot Water and Steam Solenoid Valves
SV4000A Series:2-Way Solenoid Valves - For Hot Water and Steam

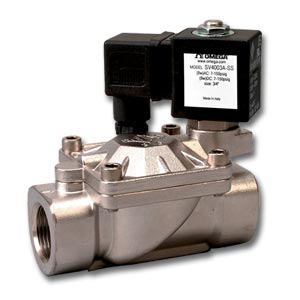

Click for larger image.

¥ 8,825.00  SV4003A-SS
• Normally Closed or Normally Open
• Ideal for Hot Water and Steam
• 8 W AC Coils Standard
• 14 W DC Coils Available

View related products - Valves

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

SV4000 Series 2-way hot water and steam solenoid valves are internally piloted. They feature brass and 316 stainless steel construction, and PTFE seal material. The temperature range of 0 to 182°C (32 to 360°F) and the PTFE O-ring make these valves ideal for media such as hot water and steam. A strain-relief connector is supplied with each unit. A ½” conduit plug is also available.

SPECIFICATIONS
Mounting Position: Any (preferably with solenoid system upright)
Max Process Temp: 60 to 182°C (140 to 360°F) PTFE O-ring
Max Ambient Temp: Coil dependent (see ratings on coils)
Voltage Tolerance: ±10% AC, ±5% DC
Opening Time: Approximately 100 to 200 ms
Closing Time: Approximately 200 to 1200 ms
Cycling Rate: Approx. 60 cpm
Duty Cycle: Continuous (100%)
Coil Molding Material:
   Black Polyphenylensulphide (Class H): SV8COIL-115/60 HZ; SV8COIL-220/60 HZ
   Black Epoxy Resin (Class H): All 14 W coils, NEMA 4

Coil Specifications
WattInrush VAHolding VA
8.0 25.0 14.0
14.0 43.0 27.0
Materials of Construction
BodyBrass316 SS
Armature TubeStainless steel 300Stainless steel 300
Fixed CoreStainless steel 400Stainless steel 400
Plunger Stainless steel 400Stainless steel 400
SpringStainless steel 300Stainless steel 300
Shading RingCopperGold-Plated Copper
OrificeBrass316 SS

Valve Dimensions (in)
ModelDepthHeightLength
SV4002A1-19/324-7/32 2-9/16
SV4003A1-29/324-23/322-15/16
SV4004A2-7/165-1/83-11/16
SV4002A-SS1-9/164-1/162-27/32
SV4003A-SS2-9/164-17/324-3/32
SV4004A-SS
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Normally Closed Brass Valves
 SV4002A 6 Weeks   ¥2,790.00    1/2 NPT, 7/16"orifice, 3.4 Cv Flow Factor
 SV4003A 6 Weeks   ¥3,700.00    3/4 NPT, 3/4"orifice, 6.2 Cv Flow Factor
 SV4004A 6 Weeks   ¥4,260.00    1 NPT, 1"orifice, 11.0 Cv Flow Factor
 Normally Open Brass Valves
 SV4002A-NO 7 Weeks   ¥4,360.00    1/2 NPT, 7/16"orifice, 3.4 Cv Flow Factor
 SV4003A-NO 6 Weeks   ¥4,815.00    3/4 NPT, 3/4"orifice, 6.2 Cv Flow Factor
 SV4004A-NO 2 Weeks   ¥5,095.00    1 NPT, 1"orifice, 11.0 Cv Flow Factor
 Normally Closed 316 SS Valves
 SV4002A-SS 6 Weeks   ¥5,780.00    1/2 NPT, 7/16"orifice, 2.4 Cv Flow Factor
 SV4003A-SS 6 Weeks   ¥8,825.00    3/4 NPT, 3/4"orifice, 8.0 Cv Flow Factor
 SV4004A-SS 6 Weeks   ¥8,825.00    1 NPT, 1"orifice, 9.0 Cv Flow Factor
 Connectors
 SV-CGC 2 Weeks   ¥146.00    Cable grip connector
 SV-CC 2 Weeks   ¥146.00    1/2" conduit connector
 Coils
 SV8COIL-115/60HZ 2 Weeks   ¥630.00    8 W coil for 115 Vac/60 Hz 182°C (360°F) (Class H)
 SV8COIL-220AC 2 Weeks   ¥440.00    8 W coil for 220 Vac/60 Hz 182°C (360°F) (Class H)
 SV8COIL-24AC/60HZ 2 Weeks   ¥440.00    8 W coil for 24 Vac/60 Hz 182°C (360°F) (Class H)
 SV14COIL-24DC 2 Weeks   ¥845.00    14 W coil for 24 Vdc 182°C (360°F) (Class H)
 SV14COIL-12DC 2 Weeks   ¥845.00    14 W coil for 12 Vdc 182°C (360°F) (Class H)
 Repair Kits (Include Diaphragm, Spring, Plunger and O-rings)
 VRK-4012    Consult sales   Repair kit for SV4001 and SV4002
 VRK-4034 6 Weeks   ¥1,945.00    Repair kit for SV4003 and SV4004
 VRK-4002SS 10 Weeks   ¥1,555.00    Repair kit for SV4002-SS
 VRK-4034SS 6 Weeks   ¥2,075.00    Repair kit for SV4003-SS and SV4004-SS
† Price are shown in RMB.

 Note: Comes complete with instruction sheet and cable grip connector.


  Ordering Example: (1) SV4002A 3/8 NPT normally closed valve, ¥2,790.00,  plus (1) SV4004A-NO 1 NPT normally open valve, ¥5,095.00, ¥2,790.00 + 5,095.00 = $7,885.00
