OMEGA-FLO™ 2-Way Zero Differential Solenoid Valves

SV3500 Series

OMEGA-FLO 2-Way Zero Differential Solenoid Valves

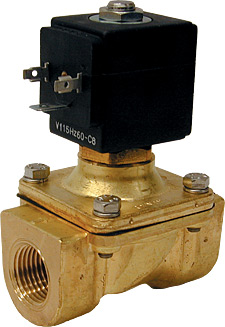

Click for larger image.

^¥ 2,020.00 SV3501

•	Normally Closed
•	Ideal for Compressed Air, Inert Gas, and Water
•	Process Temperature to 90.5ºC (195ºF)
•	120 Vac Standard (220 Vac and DC Coils are Optional and field installed)
•	All Coils are CE
View related products - Valves

SV-3500 Series 2-way zero differential solenoid valves are internally piloted with assisted lift valves featuring Brass, stainless steel construction and NBR and PA seal material. The temperature range from -10 to 90.5°C (14 to 195°F) is ideal for neutral media such as compressed air, inert gases, and water. Electrical connection options are a 1/2" conduit plug or strain relief connector.

SPECIFICATIONS
Mounting Position: Any (preferably with solenoid system upright)
Max. Process Temp: -10 to 90.5°C (14°F to 195°F) due to NBR (Buna) and PA (polymide)
Max Ambient Temp: Coil Dependent (See ratings on coils)
Voltage Tolerance: ±10%
Opening Time, AC and DC: approx 100 to 1000 ms
Closing Time, AC and DC: approx 700 to 4000 ms
Cycling Rate: Approx. 10 to 20 cpm
Duty Cycle: Continuous (100%)

Materials of Construction
Body: Brass
Armature Tube: Stainless Steel 300
Fixed Core: Stainless Steel 400
Plunger: Stainless Steel 400
Spring: Stainless Steel 300
Shading Ring: Copper
Orifice: Brass
Sealing Material: NBR and PA

Coil Molding Material
Black Polyester (Class F):
SV8COIL-115AC, SV8COIL-24AC/60HZ, SV8COIL-220AC
Black Polyamide (Class F):
SV8COIL-12DC, SV8COIL-24DC, all 12 Watt coils
Black Polyphenylensulphide (Class H): SV8COIL-115/60HZ
Black Epoxy Resin (Class H): All 14 Watt coils

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
SV3501	5 Weeks	¥2,020.00	1/4 NPT fitting, 7/16" orifice, Cv=1.4	qty.

SV3502	2 Weeks	¥2,020.00	3/8 NPT fitting, 7/16" orifice, Cv=1.4	qty.

SV3503	8 Weeks	¥2,080.00	1/2 NPT fitting, 5/8" orifice, Cv=2.8	qty.

SV3504	5 Weeks	¥2,080.00	3/4 NPT fitting, 5/8" orifice, Cv=2.8	qty.

SV3505	7 Weeks	¥3,410.00	1 NPT fitting, 1" orifice, Cv=8.3	qty.


Connectors

SV-CGC	2 Weeks	¥185.00	Cable grip connector	qty.

SV-CC	2 Weeks	¥185.00	1/2" conduit connector	qty.


Coils

SV8COIL-115AC	2 Weeks	¥560.00	Replacement 8W coil for 110 to 120 Vac/50 to 60 Hz 154°C (310°F) (Class F)	qty.

SV8COIL-12DC	2 Weeks	¥540.00	8W coil for 12 Vdc154°C (310°F) (Class F)	qty.

SV8COIL-24DC	2 Weeks	¥570.00	8W coil for 24 Vdc 154°C (310°F) (Class F)	qty.

SV8COIL-24AC/60HZ	2 Weeks	¥540.00	8W coil for 24 Vac/60Hz 154°C (310°F) (Class F)	qty.

SV8COIL-220AC	2 Weeks	¥560.00	8W coil for 220 to 240 Vac/50 to 60 Hz154°C (310°F) (Class F)	qty.

SV8COIL-115/60HZ	2 Weeks	¥770.00	8W coil for 115 Vac/60 Hz 182°C (360°F) (Class H)	qty.

SV12COIL-120/60HZ	2 Weeks	¥785.00	12W coil for 120 Vac/60 Hz 154°C (310°F) (Class F)	qty.

SV12COIL-12DC	2 Weeks	¥765.00	12W coil for 12 Vdc 154°C (310°F) (Class F)	qty.

SV12COIL-24DC	2 Weeks	¥820.00	12W coil for 24 Vdc 154°C (310°F) (Class F)	qty.

SV14COIL-24DC	2 Weeks	¥1,075.00	14W coil for 24 Vdc 182°C (360°F) (Class H)	qty.

SV14COIL-24/50-60HZ	2 Weeks	¥1,135.00	14W coil for 24 Vac/50 to 60Hz 182°C (360°F) (Class H)	qty.

SV14COIL-12DC	2 Weeks	¥1,075.00	14W coil for 12 Vdc 182°C (360°F) (Class H)	qty.


Repair Kits (Include Diaphragm, Spring, Plunger, and O-rings)

VRK-3512	5 Weeks	¥1,055.00	Repair kits for SV3501 and SV3502	qty.

VRK-3534	7 Weeks	¥1,075.00	Repair kits for SV3503 and SV3504	qty.

VRK-3505	5 Weeks	¥985.00	Repair kit for SV3505	qty.

† Price are shown in RMB.

Note: Comes complete with operator's manual, 8 W coil, and cable grip connector.

Ordering Example: (1) SV3502 3/8 NPT normally closed valve, ¥2,020.00
