Surface Temperature Connector/Sensor
STC-100 Series

Surface Temperature Connector/Sensor

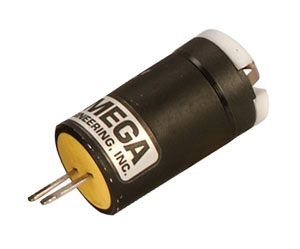

STC-100 Series:Surface Temperature Connector/Sensor
Click for larger image.

• Connector Plugs Directly into Most Handheld Thermometers
• Available in K or E Thermocouple Types
• For Measurements Up to 218°C (425°F)
• Fast 250 msec Response Time
• Removable, Replaceable Sensor Element For Easy Maintenance

View related products - Thermocouples

Click to scroll below to order See Specs PDF View a printer friendly page

OMEGA’s new surface temperature Connector offers a fast, easy way to measure surface temperatures. Just plug the STC100 into your handheld thermometer and you’re ready to take readings. The small, compact connector body features an integral thermocouple sensor specifically designed for low temperature surface measurements and can be easily removed for cleaning or replacement if damaged. Models feature miniature male connection pins and are available in K or E calibrations.

SPECIFICATIONS
Thermocouple Types: K, E
Measurement Accuracy: ±1°C (±1.8°F)
Max Temperature Usage: 218°C (425°F)
Mating Connector: Miniature male (SMP)
Dimensions: 64 L x 25.4 mm D (2.5 x 1")
Connector Body: Anodized Aluminum
Connector Sensor Head: Glass filled Nylon/FEP
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 STC-100-K-SMP-M 7 Weeks   ¥945.00    Surface temperature connector, miniature male connector, Type K
 STC-100-E-SMP-M    Consult sales   Surface temperature connector, miniature male connector, Type E
 Accessories
 88001K-RE In Stock   ¥374.00    Type K Replacement Element
 88001E-RE 7 Weeks   ¥366.00    Type E Replacement Element
 HH-26K    Consult sales   Economical Type K, thermometer,1deg resolution
 HH-21A    Consult sales   Digital thermometer, J/K/T switchable
 HH-22A    Consult sales   J, K, T thermocouple thermometer with dual input, 0.1deg resolution
† Price are shown in RMB.

 Note: Comes complete with operator’s manual.
  Ordering Example: (1) STC-100-K-SMP-M Surface temperature connector, miniature male connector, Type K, ¥945.00
