Slimline Lamp with On/Off Switch and Motion Sensor
SL025 Series
1 year warranty CE

Slimline Lamp with On/Off Switch and Motion Sensor

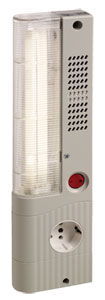

SL025 Series:Slimline Lamp with On/Off Switch and Motion Sensor
Click for larger image.

• Slim Casing
• Electronic Ballast
• Lamp With or Without Electrical Receptacle
• Magnet Mount (Optional)
• Energy Saving Lamp
• On/Off Switch or Automatic Switching

View related products - Enclosure Heaters, Fans & Accessories

Click to scroll below to order See Specs PDF View a printer friendly page

The flat slimline lamp SL025 with on/off switch or movement sensor is suitable for all types of panels and enclosures, especially where space is at a premium. The lamp can be mounted on its narrow or broad surface using screws. It is also available with a magnet which allows it to be fitted quickly in any position in a steel enclosure. Both versions are available with an integrated electrical receptacle enabling the use of additional appliances. The motion sensor substitutes a door contact switch.

SPECIFICATIONS
Power Consumption: 11 W (equals 75 W light bulb)
Luminosity: 900Lm
Lamp Type: Energy saving lamp, 2G7 base
Service Life: 10,000h
Switch: On/off light switch or PIR movement sensor, approx. 6 min fixed switch-on duration
Connection: Terminal 2.5 mm2 (0.004 in2) with cable clamp, torque 0.8Nm max
Mounting: M5 screws (not included), magnet mount (optional)
Casing: Plastic according to UL94 V-0, light gray
Dimensions: 345 x 91 x 40 mm (14 x 3.6 x 1.6")
Weight (Approx.): 0.50 kg (18 oz)
Fitting Position: Narrow surface/ broad surface
Operating/Storage Temperature: -20 to 50°C (-4 to 122°F)/ -45 to 70°C (-49 to 158°F)
Protection Type: NEMA 4X (IP20)
Approvals: UL File No. E234324
Note: The slimline lamp SL025 is also available with a 483 mm (19") front panel
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 SL2524001 18 Weeks   ¥1,220.00    Light with on/off switch, 11 W, 120 Vac, with receptacle (USA/Canada)
 SL2524101    Consult sales   Light with on/off switch, 11 W, 120 Vac, with receptacle (USA/Canada), magnet mount
 SL2527010    Consult sales   Light with on/off switch, 11 W, 120 Vac, no receptacle
 SL2527110    Consult sales   Light with on/off switch, 11 W, 120 Vac, no receptacle, magnet mount
 SL2524004    Consult sales   Light with motion sensor, 11 W, 120 Vac, with receptacle (USA/Canada)
 SL2524104    Consult sales   Light with motion sensor, 11 W, 120 Vac, with receptacle (USA/Canada), magnet mount
 SL2527012    Consult sales   Light with motion sensor, 11 W, 120 Vac, no receptacle
 SL2527112    Consult sales   Light with motion sensor, 11 W, 120 Vac, no receptacle, magnet mount
 SL2524005    Consult sales   483 mm (19") light with on/off switch, 11 W, 120 Vac, with receptacle (USA/Canada)
 SL2524007 7 Weeks   ¥2,025.00    483 mm (19") light with motion sensor, 11 W, 120 Vac, with receptacle (USA/Canada)
 SL2527011    Consult sales   483 mm (19") light with on/off switch, 11 W, 120 Vac, no receptacle
† Price are shown in RMB.

 Note: Comes with operator’s manual
