Shear Gages - Full Bridge Shear |
| SGT-2DD and SGT-3 series |
|
 |
|
|
|
|
|
¥
1,575.00
SGT-2DD/350-SY41
|
|
| |
|
|
|
 |
OMEGADYNE® offers full bridge
transducer quality strain gages for shear
and torsional strain applications. These
strain gages can be used in transducer
design for shear beam load cells, or
they can also be used for reaction
torque on a shaft.

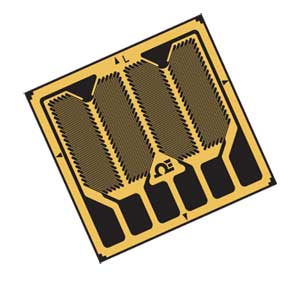

SGT-2DD/350-SY** has 2 half bridges
on one carrier piece. Each half bridge
has a dual shear pattern, with opposite
grids and a common lead/solder pad.
SGT-3/700-FB** has 4 independent
shear strain gages, with opposite grid
angles, on one carrier, with separate leads/pads (electrically independent).
Below we show one wiring example;
SGT-2DD/350-SY** used to measure
a reaction torque on a shaft. The strain
gages have been numbered, and the
leads/solder pads labeled.
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) SGT-2DD/350-SY11 Ribbon leads, compensated for steel, 350 ohms. package of 5 gages, ¥1,605.00
|
|
|
|
|
| |
|
