SPAN RESISTORS
Temperature Compensation for Strain Gage Bridges
SGN-2/20-E

Transducer Strain Gage Accessories
SGN-2/20-E:SPAN RESISTORS  Temperature Compensation for Strain Gage Bridges

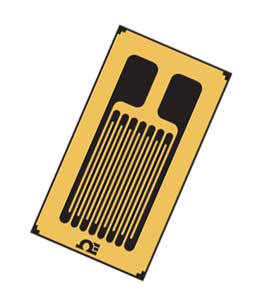

Click for larger image.

¥ 241.00  SGN-2/20-E
• FAST IMMEDIATE DELIVERY ON LARGE ORDERS!
Stock to 1-Week!
• Conveniently Priced per Pack of 5
• 10 to 60 ohms, 2, 3 or 4 mm Grid
• Rugged, High Reliability
• Flexible, Small Bending Radius
• Broad Temperature Range
• Affix with Cold or Hot Cure Adhesives

View related products - Strain Gages, Accessories and Instrumentation

Click to scroll below to order See Specs PDF View a printer friendly page

Use these high stability resistors to do span and temperature compensation on your strain bridge circuits.
SPECIFICATIONS
Foil Measuring Grid:Nickel foil 5 microns thick
Carrier: Polyimide
Substrate Thickness: 20 microns
Cover Thickness: 25 microns
Tolerance in Ω: ±1 Ω
Temp Coefficient of Resistance:0.6%/°C (0.34%/°F)
Temperature Range: 0 to 100°C (32 to 212°F)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Encapsulated Temperature Compensation Resistors (PRICE PER PKG OF 5)
 SGN-2/20-E 6 Weeks   ¥241.00    2 mm grid, 20 ohm Nickel foil Resistor
 SGN-2/25-E 2 Weeks   ¥240.00    2 mm grid, 25 ohm Nickel foil Resistor
 SGN-2/30-E 6 Weeks   ¥240.00    2 mm grid, 30 ohm Nickel foil Resistor
 SGN-3/10-E 6 Weeks   ¥240.00    3 mm grid, 10 ohm Nickel foil Resistor
 SGN-3/12-E 6 Weeks   ¥240.00    3 mm grid, 12 ohm Nickel foil Resistor
 SGN-3/34-E 2 Weeks   ¥241.00    3 mm grid, 34 ohm Nickel foil Resistor
 SGN-3/36-E 6 Weeks   ¥240.00    3 mm grid, 36 ohm Nickel foil Resistor
 SGN-4/14-E 6 Weeks   ¥240.00    4 mm grid, 14 ohm Nickel foil Resistor
 SGN-4/16-E 6 Weeks   ¥240.00    4 mm grid, 16 ohm Nickel foil Resistor
 SGN-4/20-E 2 Weeks   ¥240.00    4 mm grid, 20 ohm Nickel foil Resistor
 SGN-4/24-E 6 Weeks   ¥240.00    4 mm grid, 24 ohm Nickel foil Resistor
 SGN-4/28-E 6 Weeks   ¥240.00    4 mm grid, 28 ohm Nickel foil Resistor
 SGN-4/30-E 2 Weeks   ¥240.00    4 mm grid, 30 ohm Nickel foil Resistor
 SGN-4/32-E 6 Weeks   ¥240.00    4 mm grid, 32 ohm Nickel foil Resistor
 SGN-4/48-E 2 Weeks   ¥240.00    4 mm grid, 48 ohm Nickel foil Resistor
 SGN-4/60-E 6 Weeks   ¥241.00    4 mm grid, 60 ohm Nickel foil Resistor
 Open Face Temperature Compensation Resistors (PRICE PER PKG OF 5)
 SGN-2/20-PN 2 Weeks   ¥229.00    2 mm grid, 20 ohm Nickel foil Resistor
 SGN-2/25-PN 2 Weeks   ¥229.00    2 mm grid, 25 ohm Nickel foil Resistor
 SGN-2/30-PN    Consult sales   2 mm grid, 30 ohm Nickel foil Resistor
 SGN-3/10-PN    Consult sales   3 mm grid, 10 ohm Nickel foil Resistor
 SGN-3/12-PN    Consult sales   3 mm grid, 12 ohm Nickel foil Resistor
 SGN-3/34-PN    Consult sales   3 mm grid, 34 ohm Nickel foil Resistor
 SGN-3/36-PN    Consult sales   3 mm grid, 36 ohm Nickel foil Resistor
 SGN-4/14-PN 2 Weeks   ¥229.00    4 mm grid, 14 ohm Nickel foil Resistor
 SGN-4/16-PN 2 Weeks   ¥229.00    4 mm grid, 16 ohm Nickel foil Resistor
 SGN-4/20-PN    Consult sales   4 mm grid, 20 ohm Nickel foil Resistor
 SGN-4/24-PN    Consult sales   4 mm grid, 24 ohm Nickel foil Resistor
 SGN-4/28-PN    Consult sales   4 mm grid, 28 ohm Nickel foil Resistor
 SGN-4/30-PN    Consult sales   4 mm grid, 30 ohm Nickel foil Resistor
 SGN-4/32-PN    Consult sales   4 mm grid, 32 ohm Nickel foil Resistor
 SGN-4/48-PN    Consult sales   4 mm grid, 48 ohm Nickel foil Resistor
 SGN-4/60-PN    Consult sales   4 mm grid, 60 ohm Nickel foil Resistor
 Bridge Balancing and Zero/Temperature Compensation Resistors
 RES-2C 6 Weeks   ¥1,420.00    2 Ohm Constantan Foil Resistors, PKG of 5
 RES-5C 2 Weeks   ¥1,420.00    5 Ohm Constantan Foil Resistors, PKG of 5
 RES-2N 6 Weeks   ¥1,420.00    2 Ohm Nickel Foil Resistors, PKG of 5
 RES-5N 2 Weeks   ¥1,420.00    5 Ohm Nickel Foil Resistors, PKG of 5
† Price are shown in RMB.

 Note: Sold in packages of 5 resistors.
  Ordering Example: (1) SGN-2/20-E Pkg of 5 Encapsulated 2 mm grid, 20 ohm span compensation nickel resistors, ¥241.00
