Free-Standing Steel Electrical Enclosures, NEMA Type 4 Enviroline® Series |

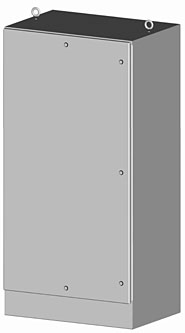

| SCE-ELFS Series Electrical Enclosure |
|
 |
|
|
|
|
|
¥
29,555.00
SCE-72EL2418FS
|
| • |
0.104" Carbon Steel
|
| • |
Seams Continuously Welded and Ground Smooth
|
| • |
Oil-Resistant Gasket
|
| • |
Flange Trough Collar Around All Sides of Door Opening
|
| • |
Concealed Hinge
|
| • |
Removable and Interchangeable Doors
|
| • |
Black Quarter Turn Latches
|
| • |
Removable Print Pocket
|
| • |
Lifting Eyes for Easy Handling
|
| • |
Ground Studs on Door and Body
|
| • |
Mounting Channels Welded Horizontally on Sides of Interior Body at Top, Bottom and Middle for Mounting Optional Panels or Rack Mounting Angles
|
| • |
No Door Stiffeners
|
| • |
Padlocking or Keylocking Handle with 3-Point Operating Mechanism and Tamper-Resistant Hardware is Included
|
| • |
Interchangeable Latches and Handles Available
|
View related products - NEMA Electrical Enclosures
|
| |
|
|
|
 |
Application
SCE-ELFS Series electrical enclosures are designed to house
electrical and electronic controls, instruments and components.
These electrical cabinets provides protection from dust, oil and water.
For outdoor application a drip shield is recommended.
by Saginaw Control
Finish
ANSI-61 gray coating inside and out over phosphatized surfaces. Optional panels are powder coated white.
Industry Standards
NEMA Type 4, 12, & 13
UL Listed Type 4 & 12
CSA Type 4 & 12
IEC 60529 IP 66
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) SCE-72EL2418FS Type 4 free standing carbon steel enclosure, ¥29,555.00
|
|
|
|
|
| |
|
