Bimetal Thermometers

AA, BB, JJ and LL Bimetal Thermometers

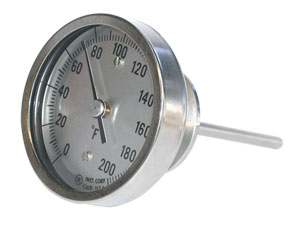

Bimetal Thermometers
AA, BB, JJ and LL Bimetal Thermometers:Bimetal Thermometers
Click for larger image.

All 316/316L SS Wetted Parts
All Welded Construction
Easy to Calibrate Reset Screw
Hermetically Sealed
32 Ra Max on All Wetted Surfaces
Standard Connection: 1½" Tri-Grip (Tri-Clamp® Compatible)
6 mm (¼") Standard Stem Diameter
Glass Lens Standard
Standard Lengths From 2½ to 15"

View related products - Glass Bulb and DialTemp™ Thermometers

Click to scroll below to order See Specs PDF View a printer friendly page

The bimetal thermometer is specially designed for direct insertion into process applications when a standard thermowell is not specified or the process environment is not exposed to pressure. The bimetal thermometer is ideal for process industries.

Fahrenheit Celsius Dual
RangeDiv. RangeDiv. RangeDiv.
-40 to 160°F -40 to 70°C -40 to 160°F
-40 to 70°C

25 to 125°F** 0 to 50°C**
0 to 200°F 0 to 100°C 25 to 125°F**
-5 to 50°C

0 to 250°F -20 to 120°C
50 to 300°F 0 to 150°C 0 to 200°F
-10 to 90°C

50 to 500°F 0 to 250°C
150 to 750°F 10° 50 to 400°C 0 to 250°F
-20 to 120°C

** 4" minimum stem length.
  50 to 300°F
10 to 150°C

50 to 500°F
10 to 260°C

150 to 750°F
70 to 400°C
10°
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

 Part Number   Availability   Price(RMB)   Description    Qty.
 Adjustable 3" Bimetal Dial Thermometer
 LL--40-160F-21/2 7 Weeks   ¥4,000.00    2½ inch Stem Length, 3" Dial, -40 TO 160°F
 LL-50-500F-21/2 7 Weeks   ¥4,000.00    2½ inch Stem Length, 3" Dial, 50 TO 500°F
 LL--40-160F-4 7 Weeks   ¥4,000.00    4 inch Stem Length, 3" Dial, -40 TO 160°F
 LL-0-200F-4 7 Weeks   ¥4,000.00    4 inch Stem Length, 3" Dial, 0 TO 200°F
 LL-0-200F-6 7 Weeks   ¥4,085.00    6 inch Stem Length, 3" Dial, 0 TO 200°F
 LL-50-500F-6 7 Weeks   ¥4,085.00    6 inch Stem Length, 3" Dial, 50 TO 500°F
 Adjustable 5" Bimetal Dial Thermometer
 JJ--40-160F-21/2 7 Weeks   ¥4,310.00    2½ inch Stem Length, 5" Dial, -40 TO 160°F
 JJ-50-500F-21/2 7 Weeks   ¥4,310.00    2½ inch Stem Length, 5" Dial, 50 TO 500°F
 JJ--40-160F-4 7 Weeks   ¥4,310.00    4 inch Stem Length, 5" Dial, -40 TO 160°F
 JJ-0-200F-4 7 Weeks   ¥4,310.00    4 inch Stem Length, 5" Dial, 0 TO 200°F
 JJ-0-200F-6 7 Weeks   ¥4,390.00    6 inch Stem Length, 5" Dial, 0 TO 200°F
 JJ-50-500F-6 7 Weeks   ¥4,390.00    6 inch Stem Length, 5" Dial, 50 TO 500°F
 Adjustable Bimetal Dial Thermometer - Dual Range
 LL-0-250F--20-120C-21/2 7 Weeks   ¥4,080.00    2½ inch Stem Length, 3" Dial, 0 TO 250°F and -20 TO 120°C
 JJ-0-250F--20-120C-21/2 2 Weeks   ¥4,310.00    2½ inch Stem Length, 5" Dial, 0 TO 250°F and -20 TO 120°C
 LL-50-500F-10-260C-4 7 Weeks   ¥4,000.00    4 inch Stem Length, 3" Dial, 50 TO 500°F and 10 TO 260°C
 JJ-50-500F-10-260C-4 7 Weeks   ¥4,310.00    4 inch Stem Length, 5" Dial, 50 TO 500°F and 10 TO 260°C
 Back Connected 3" Bimetal Dial Thermometer
 AA--40-160F-21/2 7 Weeks   ¥3,065.00    2½ inch Stem Length, 3" Dial, -40 TO 160°F
 AA-50-500F-21/2 7 Weeks   ¥3,065.00    2½ inch Stem Length, 3" Dial, 50 TO 500°F
 AA--40-160F-4 7 Weeks   ¥3,065.00    4 inch Stem Length, 3" Dial, -40 TO 160°F
 AA-0-200F-4 2 Weeks   ¥3,065.00    4 inch Stem Length, 3" Dial, 0 TO 200°F
 AA-0-200F-6 7 Weeks   ¥3,170.00    6 inch Stem Length, 3" Dial, 0 TO 200°F
 AA-50-500F-6 7 Weeks   ¥3,170.00    6 inch Stem Length, 3" Dial, 50 TO 500°F
 Back Connected Bimetal Dial Thermometer - Dual Range
 AA-0-250F--20-120C-21/2 7 Weeks   ¥3,065.00    2½ inch Stem Length, 3" Dial, 0 TO 250°F and -20 TO 120°C
 AA-50-500F-10-260C-4 7 Weeks   ¥3,065.00    4 inch Stem Length, 3" Dial, 50 TO 500°F and 10 TO 260°C
Price are shown in RMB.

 Note: OPTIONS:
add "-SF" to the end of the model number for the silicone filled option, add $50 to price,
add "-PY" to the end of the model number for a polycarbonate window and add $7 to the price,
add "-R20" to the end of the model number for Ra20 max wetted finish and add $40 to price and $3/inch,
add "-NIST" to end of the model number for a 3 point NIST calibration certificate and add $100 to price.
 Ordering Example: (1) JJ--40-160F-21/2 2½ inch Stem Length, 5, ¥4,310.00
   Part Number Builder
(1) (2) (3)
-
-
-
-
Qty:
Option Descriptions
(1) Series
  Select
AA for AA Series
BB for BB Series
LL for LL Series
JJ for JJ Series
(2) Temperature Range
  Select
-40-160F for -40 to 160°F
25-125F for 25 to 125°F
0-200F for 0 to 200°F
0-250F for 0 to 250°F
50-300F for 50 to 300°F
50-500F for 50 to 500°F
150-750F for 150 to 750°F
-40-70C for -40 to 70°C
0-50C for 0 to 50°C
0-100C for 0 to 100°C
-20-120C for -20 to 120°C
0-150C for 0 to 150°C
0-250C for 0 to 250°C
50-400C for 50 to 400°C
-40-160F/-40-70C for -40 to 160°F (-40 to 70°C)
25-125F/-5-50C for 25 to 125°F (-5 to 50°C)
0-200F/-10-90C for 0 to 200°F (-10 to 90°C)
0-250F/-20-120C for 0 to 250°F (-20 to 120°C)
50-300F/10-150C for 50 to 300°F (10 to 150°C)
50-500F/10-260C for 50 to 500°F (10 to 260°C)
150-750F/70-400C for 150 to 750°F (70 to 400°C)
(3) Stem Length
  Select
21/2 for 2 1/2 in
4 for 4 in
6 for 6 in
9 for 9 in
12 for 12 in
15 for 15 in
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
