Ready-Made Surface Thermocouple with Self-Adhesive Backing(ANSI) - Package of 5 |
| SA1 SERIES |
|
 |
|
|
|
|
|
¥
910.00
SA1-J
|
| • |
Patented Spool Caddy
|
| • |
Self Adhesive thermocouple for Easy Installation
|
| • |
Better Than 0.3 Second Response Time
|
| • |
1 m (36") or 2 m (72") Color-Coded PFA Insulated Leads
|
| • |
Rated to 175°C (350°F) Long Term
|
| • |
Available in J, K, T, and E Calibrations
|
View related products - Thermocouples and RTDs
|
| |
|
|
|
 |
 OMEGA’s self-adhesive thermocouple temperature sensors have now been expanded to include the popular
miniature connector with our patented spool caddy. The spool caddy provides a convenient way to
store the thermocouple wire that is not needed for the application.
Specifications
Thermocouple Calibrations: J (Iron-Constantan), K (CHR-AL), T (Copper Constantan), E (CHR-Constantan)
Adhesive: Silicon based cement
Maximum Temperature: 175°C (350°F) continuous
Minimum Temperature: -60°C (-75°F) continuous
Dimensions: 25 L x 19 W x 0.3 mm (1 x 0.8 x 0.01")
Laminates: High temperature polymer, and fiberglass reinforced polymer layers
Wire: 30 AWG PFA-coated
Adhesive Pad (TAP): Polymide Film with a silicone pressure sensitive adhesive.
13% Polymide, 32% Polymethyl phenylsiloxane, 54% Saturated Paper
| Model No.-ANSI Color Code | Wire
Gage | Length
meter(in) | Insulation |

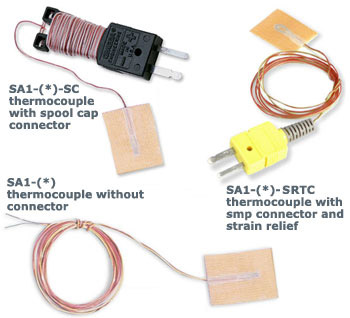

| Thermocouple with Stripped Leads | Thermocouple with Spool Cap Connector | Thermocouple with SMP connector and Strain Relief |
| SA1-J | SA1-J-SC | SA1-J-SRTC | 30 | 1 (40) | PFA |
| SA1-K | SA1-K-SC | SA1-K-SRTC | 30 | 1 (40) | PFA |
| SA1-T | SA1-T-SC | SA1-T-SRTC | 30 | 1 (40) | PFA |
| SA1-E | SA1-E-SC | SA1-E-SRTC | 30 | 1 (40) | PFA |
| SA1-J-72 | SA1-J-72-SC | SA1-J-72-SRTC | 30 | 2 (80) | PFA |
| SA1-K-72 | SA1-K-72-SC | SA1-K-72-SRTC | 30 | 2 (80) | PFA |
| SA1-T-72 | SA1-T-72-SC | SA1-T-72-SRTC | 30 | 2 (80) | PFA |
| SA1-E-72 | SA1-E-72-SC | SA1-E-72-SRTC | 30 | 2 (80) | PFA |
| SA1-J-120 | - | SA1-J-120-SRTC | 30 | 3 (120) | PFA |
| SA1-K-120 | - | SA1-K-120-SRTC | 30 | 3 (120) | PFA |
| SA1-T-120 | - | SA1-T-120-SRTC | 30 | 3 (120) | PFA |
| SA1-E-120 | - | SA1-E-120-SRTC | 30 | 3 (120) | PFA |
Note: 2 m (80") is the longest length available with spool caddy.
NIST Traceable certification is available for this product - Consult Sales or Engineering
View the Thermocouple Accuracy and Color Code charts
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) SA1-T T Type Thermocouples, 36'' long, stripped ends, 5 each, ¥910.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Thermocouple Type
|
| |
Select
J for Thermocouple type J
K for Thermocouple type K
T for Thermocouple type T
E for Thermocouple type E
|
(2)
|
Length
|
| |
Select
Nothing(leave field blank) for 1 m (36 in) long
-72 for 2 m (72 in) long
-120 for 3 m (120 in) long
|
(3)
|
Connector
|
| |
Select
Nothing(leave field blank) for None
-SC for Miniature connector
and spool caddy
-M8-S-M for Male straight M8 plug
-M12-S-M for Male straight M12 plug
-M8-R-M for Male right-angled M8 plug
-M12-S-M for Male right-angled M12 plug
-SRTC for Molded strain relief and SMP male connector
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
