Precision RTD Probes Specialized for Laboratory Applications
RTD-800 Series

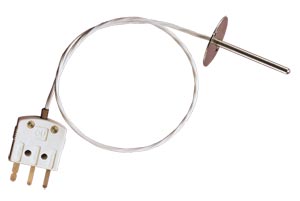

RTD-800 Series:Precision RTD Probes Specialized for Laboratory Applications
Click for larger image.

¥ 1,285.00  RTD-860
• 100 Ohm, Alpha=.00385 Pt RTD Sensor
• Contains a "Class- A", PT100 Platinum RTD Sensing Element With a Resistance Vs. Temperature Curve Conforming to IEC60751 (Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C)
• Sensor Supplied with 3 feet of PFA-Insulated and Jacketed Cable
• Subminiature MTP Series Connector Standard (Other Connectors Available)
• Mating Connectors Included (Black Leads on Center and Wide Prong, Red on Other)

View related products - RTD (PT100) Probes, Elements and Assemblies

Click to scroll below to order See Specs PDF View a printer friendly page

Precision RTD probes specialized for laboratory applications are available in 6 unique configurations to suite a variety of application needs. All units contain a 100 Ohm, Class A Platinum RTD Sensor and are supplied with an "MTP" style, 3-Pin Connector.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 RTD-805 In Stock   ¥1,315.00    RTD element mounted in open-end stainless steel housing with PFA-insulated leads. Designed for air temperature measurement and monitoring of gas streams. 3' lead wire. Temp range: -50 to 230°C (-60 to 445°F)
 RTD-806 2 Weeks   ¥1,250.00    RTD-806 features economical plastic housing. Temp Range: -50 to 230°C (-60 to 445°F)
 RTD-809 In Stock   ¥1,275.00    Encapsulated sensor in stainless steel housing with PFA-insulated leads. Surface temperature measurement design, ideal for heat loss or compressor efficiency measurement. 3' lead wires. Temp Range: -50 to 230°C (-60 to 445°F)
 RTD-810 7 Weeks   ¥1,185.00    Closed-end stainless steel tube with PFA-insulated leads. Rugged design is ideally suited for fluid measurements. Also for use in a wide variety of pressurized systems applications. 3' lead wires. Temp Range: -200 to 750°C (-328 to 1380°F)
 RTD-830 In Stock   ¥1,000.00    Encapsulated sensor in screw-mounted aluminum housing with PFA-insulated leads. Sensor design provides low cost fast response, and is designed for easy mounting on flat surfaces. 3' lead wires. Temp Range: -50 to 230°C (-60 to 445°F)
 RTD-850 In Stock   ¥985.00    Stainless steel housing with 1 /4 " hex head and #8-32 NC-2A threaded body. RTD sensor encapsulated in housing with PFA-insulated leads. Designed for applications requiring vibration and shock resistance. 3' lead wires. Temp Range: -50 to 230°C (-60 to 445°F)
 RTD-860 2 Weeks   ¥1,285.00    Closed-end stainless steel tube with sensor mounted in tip. Stainless steel mounting plate with two (2) mounting holes welded to tube. PFA-insulated 3' lead wires. Temp Range: -200 to 230°C (-330 to 445°F)
 Also Available:
 RTD-880-100 OHMS 2 Weeks   ¥575.00    Special high temperature, closed ended, 6 inch (150 mm) long stainless steel sheath with sensor in tip. Containes a mounting bracket with two mounting holes affixed to the sheath, two 6" long 24 gage stripped leads with fiberglass insulation and a 100 ohm Platinum RTD with a temperature coefficient (alpha) of .00385
† Price are shown in RMB.

 Note: Consult Sales for pricing & availability on custom configurations
  Ordering Example: (1) RTD-809 Surface Probe, RTD, ¥1,275.00
