Sensor and Transducer Wire and Multi-Conductor Cable
Sensor Wire

Sensor and Transducer Wire and Multi-Conductor Cable
Sensor Wire:Sensor and Transducer Wire and Multi-Conductor Cable

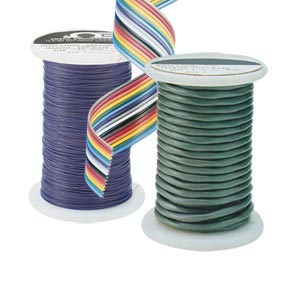

Click for larger image.

• Single Strand Copper with PFA Insulation for Strain Gage Wiring
• 28 Gage Ribbon Cables with 4-50 Conductors
• 24 Gage Shielded Cable in 2,4, 8 or 15 Conductors

View related products - Instrumentation and Accessories

Click to scroll below to order See Specs PDF View a printer friendly page

Single Strand
Single strand copper wire features a 3 mil PFA insulation which is excellent for vacuum and has a temperature rating from -267 to 260 °C (-450 to 500 °F). OMEGA’s thin-wall covering process guarantees continuous lengths up to 1,000 feet. This wire is ideal for connecting strain gages to solder terminal strips and pads.

Ribbon Cable
OMEGA’s ribbon cables are PVC pre-insulated conductors laminated to a clear PVC film to allow easy termination. The color coding allows quick identification and circuit tracing. The multi-conductor ribbon cable can easily be trimmed to any desired conductor width for different uses. The PVC insulation is rated for temperatures from -40 to 105 °C (-40 to 221 °F).

Multi Conductor Cable
Shielded cable provides the high conductivity and noise immunity required for instrumentation hookups to transducers. It is suitable for low and high level voltage signals and mA pick-up in high EMI/RFI environments. The PVC insulation is rated for temperatures from -40 to 105 °C (-40 to 221 °F).
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Fine Gage PTFE Insulated Wire - Single Strand
 TFCP-003-50 4 Weeks   ¥235.00    40 gage (0.003") single strand PFA insulated copper wire, 50 feet
 TFCP-003-100 4 Weeks   ¥425.00    40 gage (0.003") single strand PFA insulated copper wire, 100 feet
 TFCP-003-500 4 Weeks   ¥1,755.00    40 gage (0.003") single strand PFA insulated copper wire, 500 feet
 TFCP-005-50 4 Weeks   ¥235.00    36 gage (0.005") single strand PFA insulated copper wire, 50 feet
 TFCP-005-100 2 Weeks   ¥405.00    36 gage (0.005") single strand PFAinsulated copper wire, 100 feet
 TFCP-005-500 4 Weeks   ¥1,755.00    36 gage (0.005") single strand PFA insulated copper wire, 500 feet
 TFCP-010-50 4 Weeks   ¥235.00    30 gage (0.010") single strand PFA insulated copper wire, 50 feet
 TFCP-010-100 4 Weeks   ¥425.00    30 gage (0.010") single strand PFA insulated copper wire, 100 feet
 TFCP-010-500 4 Weeks   ¥1,755.00    30 gage (0.010") single strand PFA insulated copper wire, 500 feet
 TFCP-015-50 6 Weeks   ¥231.00    26 gage (0.015") single strand PFA insulated copper wire, 50 feet
 TFCP-015-100 6 Weeks   ¥405.00    26 gage (0.015") single strand PFA insulated copper wire, 100 feet
 TFCP-015-500 6 Weeks   ¥1,660.00    26 gage (0.015") single strand PFA insulated copper wire, 500 feet
 TFCP-020-50 4 Weeks   ¥231.00    24 gage (0.020") single strand PFA insulated copper wire, 50 feet
 TFCP-020-100 4 Weeks   ¥425.00    24 gage (0.020") single strand PFA insulated copper wire, 100 feet
 TFCP-020-500 4 Weeks   ¥1,755.00    24 gage (0.020") single strand PFA insulated copper wire, 500 feet
 TFCP-032-50 4 Weeks   ¥620.00    20 gage (0.032") single strand PFA insulated copper wire, 50 feet
 TFCP-032-100 4 Weeks   ¥1,070.00    20 gage (0.032") single strand PFA insulated copper wire, 100 feet
 TFCP-032-500 4 Weeks   ¥3,015.00    20 gage (0.032") single strand PFA insulated copper wire, 500 feet
 Multiconductor Ribbon Cable
 RC4-100 In Stock   ¥1,985.00    4 conductor color coded ribbon cable with PVC insulation, 100 foot spool
 RC10-100    Consult sales   10 conductor color coded ribbon cable with PVC insulation, 100 foot spool
 RC14-100    Consult sales   14 conductor color coded ribbon cable with PVC insulation, 100 foot spool
 RC16-100 20 Weeks   ¥3,825.00    16 conductor color coded ribbon cable with PVC insulation, 100 foot spool
 RC26-100 20 Weeks   ¥6,340.00    26 conductor color coded ribbon cable with PVC insulation, 100 foot spool
 RC50-100 20 Weeks   ¥11,600.00    50 conductor color coded ribbon cable with PVC insulation, 100 foot spool
 Multiconductor Shielded Cable
 TX2-100 8 Weeks   ¥377.00    2 conductor shielded cable with PVC insulation, 100 foot spool
 TX4-100 In Stock   ¥465.00    4 conductor shielded cable with PVC insulation, 100 foot spool
 TX4-200 8 Weeks   ¥730.00    4 conductor shielded cable with PVC insulation, 200 foot spool
 TX4-500 7 Weeks   ¥1,090.00    4 conductor shielded cable with PVC insulation, 500 foot spool
 TX4-1000 8 Weeks   ¥2,450.00    4 conductor shielded cable with PVC insulation, 1000 foot spool
 TX8-100 8 Weeks   ¥1,200.00    8 conductor shielded cable with PVC insulation, 100 foot spool
 TX15-100 8 Weeks   ¥1,535.00    15 conductor shielded cable with PVC insulation, 100 foot spool
 Flat, Uninsulated Ribbon Lead
† Price are shown in RMB.
