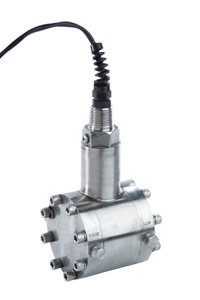

OMEGA’s PXM80 Series is a heavy duty, wet/wet, differential pressure transducer available in ranges from 0-2 to 0-350 bar. The Series is available with either of three outputs; mV/V, amplified 0-5 Vdc or 4-20 mA. These are suitable for interface with most PLCs and computer based control systems. An extremely high over pressure capacity of 100 bar or 150% of capacity (whichever is greater) make the PXM80 an extremely durable transducer. The all stainless steel construction, and high over pressure protection make the PXM80 Series differential pressure transducers a high reliability transducer in harsh industrial environments.
The PXM80 is also available in standard/Imperial configurations, with
NPT ports, and models from 0-30 to 0-5,000 psi pressure ranges.
Please see the PX80 for complete details, or contact our Pressure department for more information.
SPECIFICATIONS Excitation: 10 Vdc (15 V max) Output: 2 mV/V nominal Bridge Resistance: 350 Ω Zero Balance: ±1% FSO Linearity: ±0.25% FSO Hysteresis: ±0.10% FSO Repeatability: ±0.1% FSO Operating Temp Range: -73 to 163°C (-100 to 325°F) Compensated Temp Range: 17 to 71°C (60 to 160°F) Thermal Effects: Zero: 0.009% FSO/°C Span: 0.009% rdg/°C Line Pressure: 1500 psi (100 bar) or 150% of rated pressure, whichever is greater Burst Pressure: 6000 psi (414 bar) minimum Wetted Parts: 17-4 PH stainless steel and Buna-N O-ring Pressure Port: G 1/4 female for ranges less than 70 bar, G1/8 female on ranges 70 bar and up Electrical Termination:
Style "0" = 3 m (10') cable
Style "1" = PTIH-10-6P (or equiv)
Style "6" = mini DIN Mating Connector:
Style "1" = PT06F10-6S, sold separately
Style "6" = Mating connector (included) Weight: 2.3 kg (5 lb)
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
† Price are shown in RMB.
Note: Cable Termination order Model PXM80MD0- Twist Lock Termination order Model PXM80MD1- DIN Connector Termination order Model PXM80MD6-
