High Accuracy Pressure Transmitter |
| PXM02-5V Metric Series |
|
 |
|
|
|
|
|
|
|
| • |
0.15% Accuracy
|
| • |
Internal Shunt Resistor for Easy System Checks
|
| • |
5-Point Calibration Included
|
| • |
All Stainless Steel Construction
|
| • |
Available in Gauge, Absolute or Sealed Gauge Ranges
|
| • |
Cable or Connector Models
|
| • |
Optional Pressure Ports to Fit Most Industrial Applications
|
View related products - Pressure Transducers
|
| |
|
|
|
 |

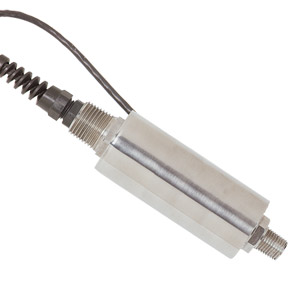

OMEGA’s PXM02 Series transducer is a very high accuracy, amplified voltage output, industrial pressure transducer. Its all stainless steel construction and hermetically sealed case make it suitable for harsh industrial environments. A broad temperature compensated range of 16 to 71°C and excellent temperature compensation make this transducer very stable with fluctuating temperatures. The PXM02 is available in gauge, absolute or sealed gauge models. G 1/8 and G 1/4 fittings are available for industrial and hydraulic applications.
The PXM02 is also available in standard/Imperial configurations, with NPT or UNF ports, and models from 0-2 to 0-30,000 psi pressure ranges. Please see the PX02 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 24 to 32 Vdc
Output: 0 to 5 Vdc ±10% adj
Linearity: 0.15% FSO
Hysteresis: 0.05% FSO
Repeatability: ±0.05% FSO
Zero Balance: 0 V ±10% adj
Sensing Element: 4 active-arm bridge, using thick film strain gages in a hermetically sealed chamber
Shunt Calibration Value: Specified on Calibration sheet
Operational Temp Range: -46 to 121°C (-50 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span:0.0054% of rdg/°C
Zero: 0.0054% of FSO/°C
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH Stainless Steel
Pressure Port: G1/4 Female Std; G 1/4 Male, G 1/8 Male/Female optional
Electrical Connections:
Style "0" = 3 m cable
Style "1" = PTIH-10-6P connector
Style "6" = micro DIN
See Custom Configurations
Mating Connector:
Style "1" = PT06F-10-6S (not included)
Style "6" = included
Weight: 170 g (6 oz)
For special options consult Sales or Pressure Engineering.
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Supplied with NIST Traceable Calibration Certificate
For Imperial Threads and psi Ranges please see the PX02-5V Series
For complete product specifications see the Related Links section at the bottom of this page.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Pressure Fitting
|
| |
Select
MA for G 1/8 male
MB for G 1/8 female
MC for G 1/4 male
MD for G 1/4 female
|
(2)
|
Electrical Termination
|
| |
Select
0 for 3 meter cable
1 for PT1H-10-6P connector (mating connector sold separately)
5 for Lightening protected amplifier box (4-20 ma only)
6 for micro DIN connector (no shunt cal)
|
(3)
|
Pressure Range
|
| |
Select
160M for 0-160 mBar
400M for 0-400 mBar
001 for 0-1 Bar
1.60 for 0-1.6 Bar
2.50 for 0-2.5 Bar
004 for 0-4 Bar
006 for 0-6 Bar
010 for 0-10 Bar
016 for 0-16 Bar
025 for 0-25 Bar
040 for 0-40 Bar
060 for 0-60 Bar
100 for 0-100 Bar
160 for 0-160 Bar
250 for 0-250 Bar
400 for 0-400 Bar
|
(4)
|
Units
|
| |
Select
A for Absolute Pressure
G for Gauge Pressure
S for Sealed Gauge Pressure
|
(5)
|
Output
|
| |
Select
V for mV/V Output
5T for 0-5 Volt Output
5Z for Isolated 0-5 Volt Output
10T for 0-10 Volt Output
I for 4-20 mA Output
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | |
|
|
|
|
|
|
| |
|
