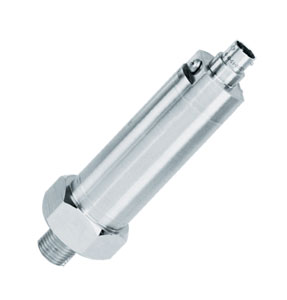

Ultra High Pressure Transducer, Cable or Connector Style
 |
| Click for larger image. |
|
|
¥
11,180.00
PX91N1-30KS5T
|
| • |
Ranges up to 200,000 PSI
|
| • |
High Operating Temperature 121°C (250°F)
|
| • |
Hermetically Sealed for Harsh Environments
|
| • |
Pressure Adaptors Available
|
| • |
See Related Links Below for Cables and Accessories
|
| • |
Comes with 5-point NIST traceable calibration
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
OMEGA’s PX91 Amplified Output Series is a rugged, high temperature/ ultra high pressure transducer. It is hermetically sealed, has all stainless steel construction and is designed for the harshest environments encountered in very high pressure/ high temperature test chambers. The PX91 is available in sealed gage pressures from 5000 psi to 200,000 psi. The electrical connection is either a sealed connector or lightening protected explosion proof amplifier housing. Pressure connection is via a high pressure ferrule connection.
SPECIFICATIONS
Excitation: 28 Vdc ±4 V
Output: 0 to 5 Vdc ±10% adj
Zero Balance: 0 V ±10% FSO adj
Non-Linearity:
≤70K psi: 0.35% FS
>70K psi: 0.5% FS
Hysteresis: 0.10% FS
Repeatability: 0.10% FS
Operating Temp Range: -46 to 121°C (-50 to 250°F)
Shunt: 80% FSO
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
Span: 0.005% rdg/°F
Zero: 0.005% FSO/°F
Proof Pressure:
≤70K psi: 120% of rated pressure
>70K psi: 110% of rated pressure
Burst Pressure:
≤70K psi: 150% of rated pressure
>70K psi: 120% of rated pressure
Wetted Parts:
≤70K: 17-4 PH SS
>70K: 455 SS
Pressure Port:
≤70K psi: 1/2-14 NPSM (fits 0.315" dia. 59° ferrule)
>70K psi: 1-14 NS-2 (use 0.910" dia. 150° ferrule)
Electrical Connection: PTIH-10-6P or 10' cable
Mating Connector: For connector style, PT06F10-6S (sold separately)
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with 5-point NIST traceable calibration.
Ordering Example: (1) PT06F10-6S Mating Connector (not included), ¥326.00, plus (1) PX91N1-60KS5T is a 60,000 psi sealed gage model with 0-5 Vdc output, 1/2 -14 NPS fitting, Connector Style, ¥11,180.00, ¥326.00 + 11,180.00 = $11,506.00
|
|
|
|
|
|
|
|
|
