  Discontinued - Economical All Stainless Steel Pressure Transducer with Full Bridge Design for High Sensitivity
PX906
CE

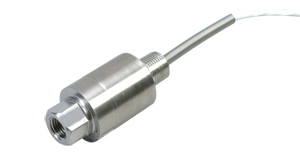

PX906:  Discontinued - Economical All Stainless Steel Pressure Transducer with Full Bridge Design for High Sensitivity
Click for larger image.

• Stainless Steel Diaphragm for High Media Compatibility
• Rugged Stainless Steel Case Protects Components in Industrial Environments
• Supplied with 36" Color Coded, Shielded Leads for Easy Connections and High Noise Immunity
• Uses a Standard 10 Vdc Regulated Power Supply for Maximum Versatility
• Compact Design for Use in Restricted Areas
• 1 /4 NPT Female Process Thread for Easy Installations on Piping Systems

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

This item is being discontinued.


SPECIFICATIONS
Excitation: 10 Vdc (15 Vdc max.)
Output: 30 mV @ 10 Vdc
Sensitivity: 3 mV/V nominal
Input Impedance: 360 ohm
Output Resistance: 350 ohm
Insulation Resistance: 5 MOhm @ 75 Vdc
PERFORMANCE
Accuracy: ±0.3% (includes linearity, hysteresis repeatability)
Zero Balance: ±3%
Operating Temperature Range: -65 to 250°F (-54 to 121°C)
Compensated Temperature Range: 60 to 160°F (16 to 71°C)
Thermal Zero Effect: ±0.01% full scale/°F
Thermal Sensitivity Effect: ±0.02% full scale/°F
Proof Pressure:150% of Range
Burst Pressure: 300% of Range
CONSTRUCTION
Body Material: 17-4 PH Stainless Steel
Diaphragm Material: 17-4 PH Stainless Steel
Pressure Port: 1 /4 -18 NPT female
Electrical Connection: 3 ft (0.9 m) 4 conductor shielded cable 3 /8 -18 NPT male conduit fitting with 11 /16 hex
Weight: 8 oz (227 g)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PX906-300GV    Consult sales   0-300 PSIG millivolt output pressure transducer
 PX906-500GV    Consult sales   0-500 PSIG millivolt output pressure transducer
 PX906-750GV    Consult sales   0-750 PSIG millivolt output pressure transducer
 PX906-1KGV    Consult sales   0-1,000 PSIG millivolt output pressure transducer
 PX906-1.5KGV    Consult sales   0-1,500 PSIG millivolt output pressure transducer
 PX906-2KGV    Consult sales   0-2,000 PSIG millivolt output pressure transducer
 PX906-3KGV    Consult sales   0-3,000 PSIG millivolt output pressure transducer
 PX906-5KGV    Consult sales   0-5,000 PSIG millivolt output pressure transducer
 PX906-7.5KGV    Consult sales   0-7,500 PSIG millivolt output pressure transducer
† Price are shown in RMB.

 Note: Includes NIST traceable calibration certificate.
