Diffused Semiconductor Pressure Transmitter
Rugged Aerospace Design

PX6000-I

Diffused Semiconductor Pressure Transmitter

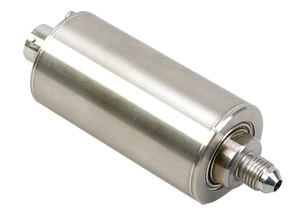

PX6000-I:Diffused Semiconductor Pressure TransmitterRugged Aerospace Design
Click for larger image.

High Reliability
Long Term Stability
All Stainless Steel Case
Vacuum Range Available
5 Point NIST Traceable Certificate Included

Applications

Automotive Test
Research & Development
Engineering Test & Evaluation
Production Testing
Flight Recorders
Engine Monitoring
Ground Support Equipment
Built-In Temperature Sensor

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

This item is being discontinued.


OMEGA's PX6000 Series pressure transducers fit easily into many applications. These low-cost transducers are small and light, and mounting requires no bulky structures. Users can select from 3 electrical terminations and 6 pressure fittings. The sensor is a small [about 2.54 mm (0.1") square] silicon chip, with 4 diffused strain gages mounted in the stainless steel case. Laser-trimmed resistors provide temperature compensation and adjust zero balance and span. The 4 to 20 mA output easily interfaces with most control and data acquisition systems. The PX6000 uses solid state media isolation for improved reliability. Thin films of chemically inert materials are deposited or grown on the chip surface to provide electrical isolation between the sensor and pressure medium. The sensor is less sensitive to vibration and more dependable in high-shock environments because the films add no significant mass. Corrosion resistance is outstanding, and the isolation will remain effective because there are no gel or oil columns to deteriorate.

The PX6000 is also available in metric configurations, with G1/4 or G1/8 ports, and models from 0-1 to 0-25 bar pressure ranges. Please see the PXM6000 for complete details, or contact our Pressure department for more information..

SPECIFICATIONS
4 to 20 mA Models

Excitation: 12 to 40 Vdc unregulated
Output: 4 to 20 mA adjustable ±10% FS
Load Impedance (Max): 50 x (V - 10) Ω where V = supply voltage (40 Vdc max)
Zero Balance: 4 mA adjustable ±10% FS
Dielectric Isolation Resistance: 100 MΩ minimum at 45 Vdc applied between the case or a conductive medium and the bridge circuit
Sensing Element: 4-active-arm bridge using a micromachined diffused silicon diaphragm sensor, thin-film media and dielectric isolation barriers
Temperature Sensor: Output resistance @ 24°C (75°F) 900 to 1500
Temperature Coefficient: 8% min, 10% max per 55.5°C (100°F)
Accuracy: Combined linearity, hysteresis and repeatability ≤±0.25% FS for all ranges
Operating Temp Range: -29° to 85°C (-20° to 185°F)
Compensated Temp Range: -29° to 85°C (-20° to 185°F)
Thermal Effects:
    Span: ≤±0.02% of FS/°F.
    Zero: ≤±0.02% of FS/°F
Vibration Sensitivity: At 20 g peak sinusoidal vibration from 10 Hz to 2000 Hz (½" D.A.), the output shall not exceed 0.04% FS/g for 15 psi range to 0.005% FS/g for 100 psi and above
Natural Frequency: Greater than 35 kHz for 100 psi and above
Shock: 100 g, 11 ms half sine wave without damage
Proof Pressure: 2 times rated pressure will not cause changes in performance beyond the specified tolerances
Burst Pressure: 3 times rated pressure for pressure ranges below 200 psi, or 2.5 times rated pressure for pressure ranges above 200 psi, will not cause rupture of the pressure sensor
Wetted Parts: 316 stainless steel, silicon, Pyrex® glass, epoxy, Kovar®
Electrical Connection: PTIH-10-6P (standard), 0.6 m (2') cable or 4-pin solder terminal header (optional)
Pressure Port: MS33656-4 male (std)
Optional: MS33649-4 female, ¼-18 or 18-27 NPT male or female
Weight: 170 g (6 oz) typical
Mating Connector: PTS06A-10-6S (not included)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

 Part Number   Availability   Price(RMB)   Description    Qty.
 PX6000L1-30VACI    Consult sales   30-0 in-Hg Vacuum Range transducer with 4-20 mV output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
 PX6000L1-015AI    Consult sales   15 psi Absolute Pressure transducer with 4-20 mA output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
 PX6000L1-020AI    Consult sales   20 psi Absolute Pressure transducer with 4-20 mA output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
 PX6000L1-050AI    Consult sales   50 psi Absolute Pressure transducer with 4-20 mA output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
 PX6000L1-100AI    Consult sales   100 psi Absolute Pressure transducer with 4-20 mA output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
 PX6000L1-200AI    Consult sales   200 psi Absolute Pressure transducer with 4-20 mA output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
 PX6000L1-300AI    Consult sales   300 psi Absolute Pressure transducer with 4-20 mA output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
 PX6000L1-015GI    Consult sales   15 psi Gage Pressure transducer with 4-20 mA output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
 PX6000L1-020GI    Consult sales   20 psi Gage Pressure transducer with 4-20 mA output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
 PX6000L1-050GI    Consult sales   50 psi Gage Pressure transducer with 4-20 mA output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
 PX6000L1-100GI    Consult sales   100 psi Gage Pressure transducer with 4-20 mA output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
 PX6000L1-200GI    Consult sales   200 psi Gage Pressure transducer with 4-20 mA output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
 PX6000L1-300GI    Consult sales   300 psi Gage Pressure transducer with 4-20 mA output, PT1H-10-6P electrical connection and MS33656-4 Male Pressure Port
Price are shown in RMB.

 Note: Metric Ranges Available - Consult Engineering
   Part Number Builder
(1) (2) (3) (4) (5) (6)
P
P
X
X
6
6
0
0
0
0
0
0
-
-
Qty:
Option Descriptions
(1) Pressure Port
  Select
A for 1/8-27 NPT Male
B for 1/8-27 NPT Female
C for 1/4-18 NPT Male
D for 1/4-18 NPT Female
L for MS33656-4 Male
M for MS33649-4 Female
(2) Electrical Connection
  Select
0 for 2' (6m) cable (std) +2$/ft over 2'
1 for PT1H-10-6P Connector or equal (no charge) (mating connector not included)
3 for 4-pin Eyelet Header (no charge)
(3) Range
  Select
30 for 30 to 0 in-Hg (Vacuum only)
015 for 0-15 psi
020 for 0-20 psi
050 for 0-50 psi
100 for 0-100 psi
200 for 0-200 psi
300 for 0-300 psi
(4) Units
  Select
VAC for Vacuum Model
G for Gage Model
A for Absolute Model
(5) Output
  Select
V for mV/V Output
5T for 0 to 5 Vdc Output
I for 4 to 20mA Output
(6) Options
  Select
for No Options
-CAL11 for 11 point NIST Calibration $250 adder
-xxFT for Extra length of cable $2/ft over 3ft
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
