Discontinued - Heavy Duty Pressure Transducer - Unique Dual 1/2 and 1/4 NPT Fitting, 0.5 to 5.5 Vdc Output, Ranges to 30,000 psi |
| PX41-5V Series |
|
 |
|
|
|
|
|
|
|
| • |

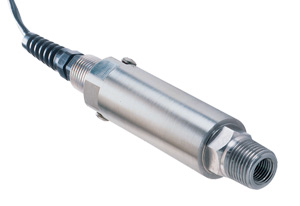

Unique Dual Thread 1/2 NPT-M & 1/4 NPT-F Fitting
|
| • |
1/2 NPT Electrical Conduit Fitting Standard
|
| • |
5-Point NIST Traceable Calibration
|
| • |
Special MSHA Approved Model Available
|
| • |
All Stainless Steel Body
|
| • |
Heavy Duty Construction Harsh Environments
|
| • |
Available in Gage, Sealed Gage and Absolute Pressure
|
| • |
See Related Links Below for Cables and Accessories
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
END OF LIFE NOTICE:
The PX41 and PXM41 Series transducers are scheduled to go out of production at the end of 2017. The replacements are the PX51/PXM51 transducers. Please direct any Questions to Pressure Application Engineering.
OMEGA’s PX41 is a high-accuracy,
rugged, low-cost, 5 V output
industrial pressure transducer. Its all
stainless steel construction makes it
suitable for the harshest
environments. The PX41 is
available in gage, absolute, or
sealed models. Ten feet of
4-conductor shielded cable
is standard. A twist-lock-style
connector is also available. A wide
selection of amplified voltage and
current output models makes this a
truly versatile family of industrial
transducers.
Consult sales for units available with Inconel construction.
The PX41 is also available in metric configurations, with G1/4 or G1/8 ports, and models from 0-1 to 0-400 bar pressure ranges.
Please see the PXM41 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 10 to 40 Vdc
Output: 0.5 to 5.5 Vdc
Zero Balance: 0.5 V adj ±10% FSO
MSHA (Optional): Mine Safety and Health Administration (must be specified at time of order)
Accuracy: 0.25% FS linearity and hysteresis combined
Operational Temp Range: -47 to 121°C (-50 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: 0.003% of rdg/°F
Zero: 0.0045% of FSO/°F
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH stainless steel
Pressure Port:
<10,000 psi: ½-14 NPT external, ¼-18 NPT internal
≤10,000 psi: 9⁄16-18, ¼" HP tube
Electrical Connection: 3 m (10') 4-conductor PVC cable
|
|
|
|
|
|
† Price are shown in RMB.
Note:
NIST Traceable Calibration Certificate Included
For Metric Threads and Ranges please see the PXM41-5V Series
For complete product specifications see the Related Links section at the bottom of this page.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Pressure Port
|
| |
Select
T for Dual 1/2-14 NPT External - 1/4-18 Internal
C for 1/4-18 NPT-M
D for 1/4-18 NPT-F
S for 1/4 HP Tube Fitting (Greater than 10K psi only)
K for 7/16-20 UNF-F(Greater than 10K psi only)
|
(2)
|
Electrical Connection
|
| |
Select
0 for 10' pigtail (+$2/ft over 10')
1 for PT1H-10-6P Twist lock Connector (or equal)
|
(3)
|
Range (psi)
|
| |
Select
010 for 0-10
015 for 0-15
020 for 0-20
025 for 0-25
030 for 0-30
050 for 0-50
075 for 0-75
100 for 0-100
200 for 0-200
300 for 0-300
500 for 0-500
750 for 0-750
1K for 0-1000
1.5K for 0-1500
2K for 0-2000
2.5K for 0-2500
3K for 0-3000
3.5K for 0-3500
5K for 0-5000
7.5K for 0-7500
10K for 0-10000
15K for 0-15000
20K for 0-20000
30K for 0-30000
|
(4)
|
Units
|
| |
Select
G for Gage Model
S for Sealed Gage Model
A for Absolute Model
|
(5)
|
Output
|
| |
Select
5V for 0.5 to 5.5 Vdc Output
5T for 0 to 5 Vdc Output
10V for 0.5 to 10.5 Vdc Output
10T for 0 to 10 Vdc Output
I for 4 to 20 mA Output
|
(6)
|
Options
|
| |
Select
for No Options
-FM for FM Hazardous Location +$150 (4-20mA output S or A pres. only)
-MSHA for Mine Safety and Health Admin. (0.5 to 5.5V or 4-20 mA output)
-OX for Cleaned for Oxygen use +$75 and 2 weeks
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | | |
|
|
|
|
|
|
| |
|
