Discontinued - General Purpose Pressure Transducer – Premium Temperature Compensation |
| PX35D0 |
|
 |
|
|
|
|
|
|
|
| • |
Absolute and Gage Pressure, 15 to 30,000 psi
|
| • |
Premium Temperature Compensation
|
| • |
All Stainless Steel Construction
|
| • |
Hermetically Sealed for Harsh Environments
|
| • |
Available in Gage, Sealed Gage and Absolute Pressure
|
| • |
NIST Traceable Calibration Certificate
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
This item is discontinued.

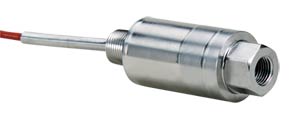

OMEGA’s PX35 is a high-accuracy,
millivolt output, industrial pressure
transducer. It can be ordered with a
hermetically sealed gage, making it
suitable for the harshest
environments. The PX35 is
available in gage, sealed gage, and
absolute models. Three meters (10')
of 4-conductor shielded cable is
standard. A twist-lock-connector
electrical termination is also
available.
The PX35 is also available in metric configurations, with G1/4 or G1/8 ports, and models from 0-1 to 0-400 bar pressure ranges.
Please see the PXM35 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 10 Vdc (15 V max)
Output: 3 mV/V nominal
Accuracy: 0.25% linearity, hysteresis and repeatability combined
Zero Balance:±2.0% FSO
Input Resistance: 350 Ω min
Output Resistance: 315 to 530 Ω
Operating Temp Range: -73 to 149°C (-100 to 300°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: 0.003% rdg/°F
Zero: 0.004% FSO/°F
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH stainless steel
Pressure Port:
<10,000 psi: ¼-18 NPT internal
≤10,000 psi: 9⁄16-18, ¼" HP tube
Electrical Connection: 3 m (10') 4-conductor cable
|
|
|
|
|
|
† Price are shown in RMB.
Note: 10,000psi and above come with 9/16 -18, 1/4 " HP Tube Fitting.
Metric and Sealed Gage Units Available - Consult Engineering or Sales.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Pressure port
|
| |
Select
D for 1/4-18 NPT female
C for 1/4-18 NPT male
J for 7/16-20 UNF male
K for 7/16-20 UNF female
S for 1/4 inch high pressure tube fitting (10000 psi and up)
|
(2)
|
Electrical Termination
|
| |
Select
0 for 10 foot shielded cable
1 for PT1H-10-6P connector (mating connector sold separately)
|
(3)
|
Range
|
| |
Select
015 for 0-15 psi (gage only)
020 for 0-20 psi (gage only)
030 for 0-30 psi
050 for 0-50 psi
100 for 0-100 psi
200 for 0-200 psi
300 for 0-300 psi
500 for 0-500 psi
1K for 0-1000 psi
2k for 0-2000 psi
3K for 0-3000 psi
5K for 0-5000 psi
10K for 0-10000 psi
15K for 0-15000 psi
20K for 0-20000 psi
30K for 0-30000 psi
|
(4)
|
Gage/Sealed Gage/Absolute
|
| |
Select
GV for Gage Model
SV for Sealed Gage
AV for Absolute Model
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | |
|
|
|
|
|
|
| |
|
